Aluminium Tilt Braces

Availability: Same Day

  • Description
  • Features
  • Suited For
  • Inclusions

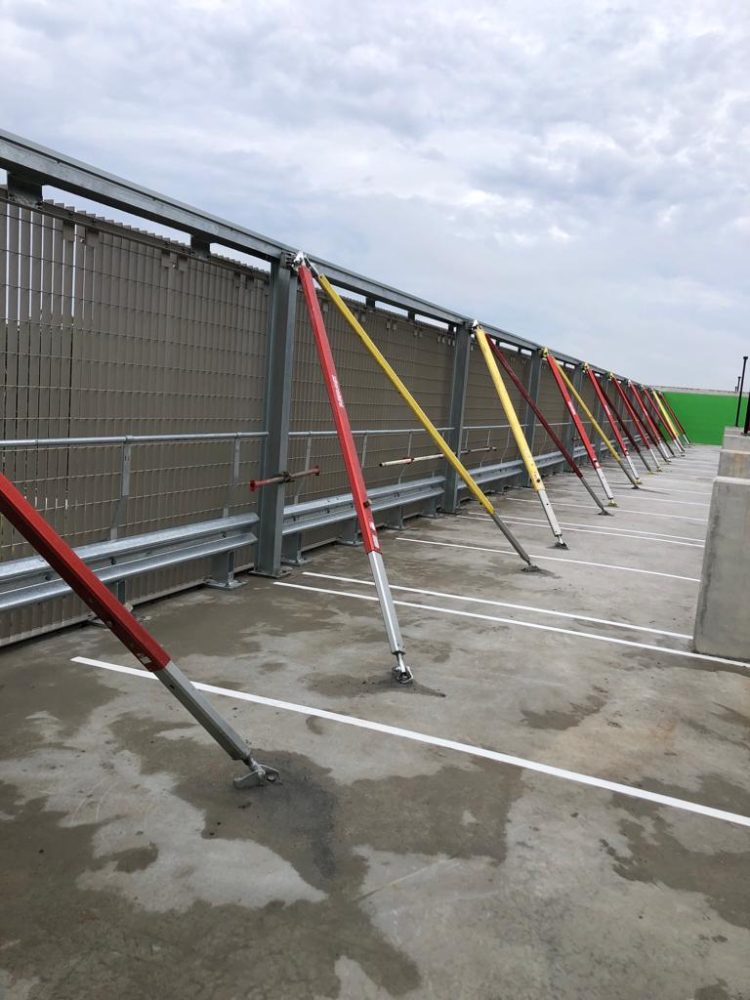

Shore Hire’s revolutionary lightweight aluminium tilt props make the propping of precast concrete and other construction methods safer and simpler than ever.

Shore Hire’s commitment to the highest standards of design and manufacturing is clearly evident in its patented tilt brace which is 33% lighter than the traditional steel panel push pull prop, providing a range of productivity and safety benefits.

As pre-cast panel and load sizes increase, Shore Hire has responded. Based on industry consultation and research we developed a brace specifically designed and engineered for today’s requirements and standards, setting a new commercial standard. The lightweight alternative will help you meet and exceed project timeline, safety and quality requirements.



Shore Hire’s tilt props are a user-friendly alternative to traditional steel and pre-cast braces. The lightweight is a labour-saving solution, minimising workloads handled by individuals.

Our tilt props have been used for construction projects including Taren Point.

TILT PROPS SPECIFICATIONS

Type Colour Length Closed (WLL) Full (WLL) Weight
F1 Purple 1.2m – 2.0m 1.2m – 35kN 2.0m – 25kN 15kg
F2 Red 2.0m – 3.4m 2.0m – 35kN 3.4m – 25kN 20kg
F3 Green 2.4m – 4.0m 2.4m – 35kN 4.0m – 25kN 24kg
F4 Yellow 3.4m – 5.1m 3.4m – 35kN 5.1m – 25kN 29kg
F5 Blue 4.4m – 6.9m 4.4m – 25kN 6.9m – 18kN 36kg
F6 Orange 5.1m – 8.4m 5.1m – 25KN 8.4m – 13KN 42kg
F7 White 6.4m – 10.4 6.4 – 21KN 10.4 – 12KN 52kg



  • Specifically purpose designed and engineered
  • Practical cost effective solution
  •  Colour coded identification
  •  OH&S user friendly
  •  Made in Australia
  •  Lightweight and time saving
  • Tested to Australian Standard AS 3850-2003

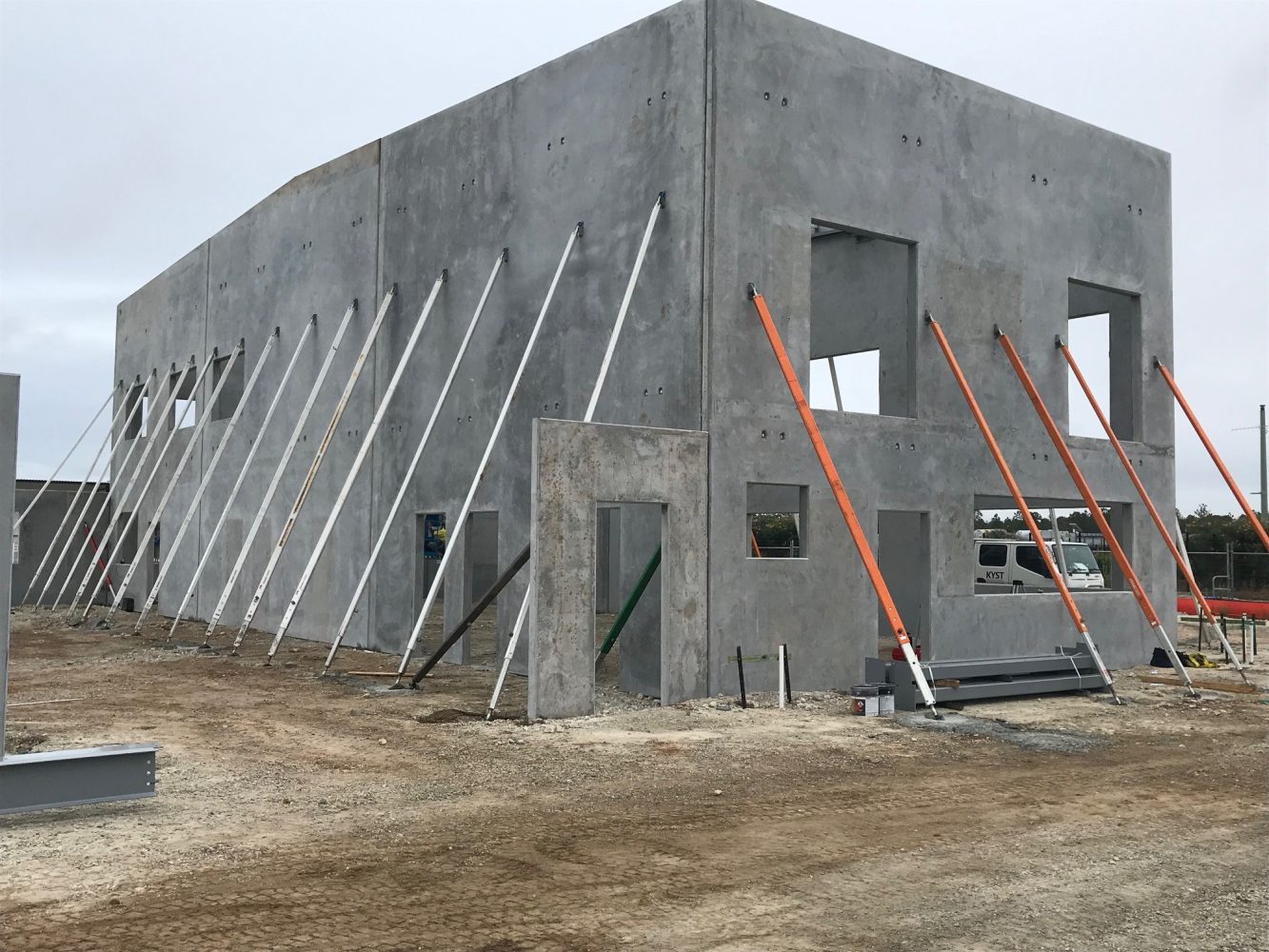

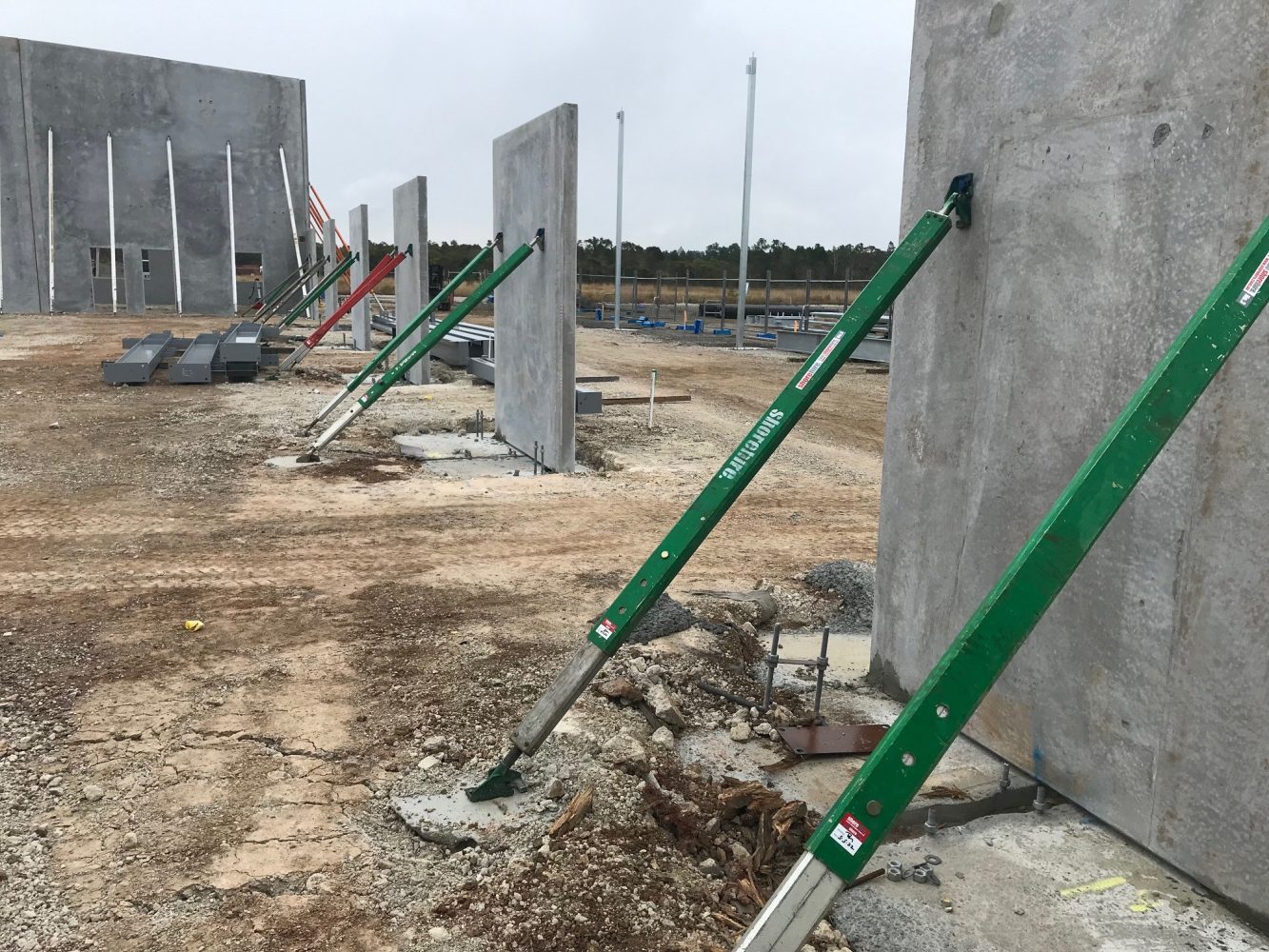

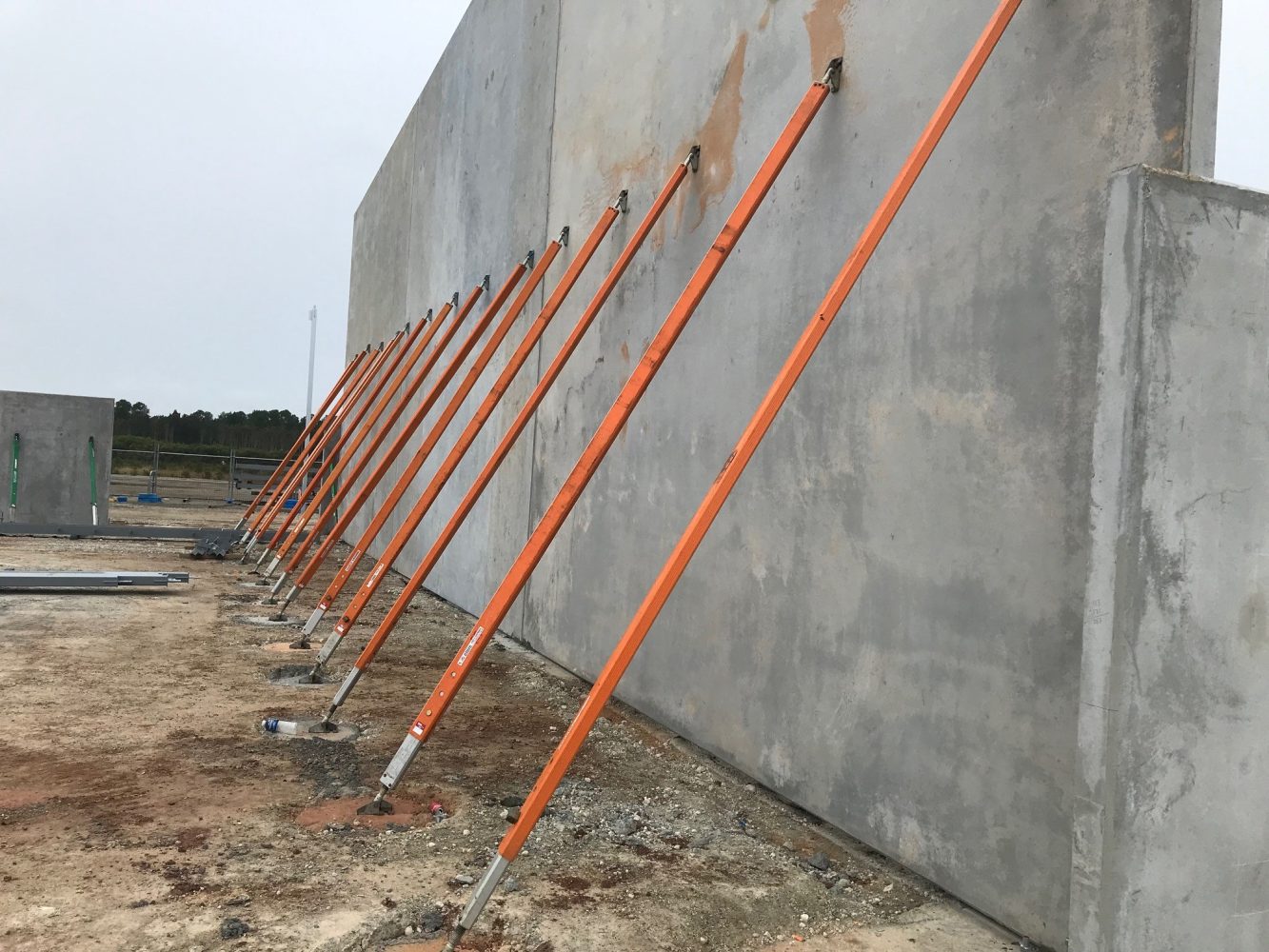

  • Tilt-up concrete construction

Tilt props are suited for a range of precast concrete and tilt up construction methods including:



The Aluminium Tilt Props can be delivered standalone or as as part of our comprehensive full-service solution. This includes:

  • Free on-site assessment
  • Engineering design
  • Delivery
  • Installation by our professional rigging team
