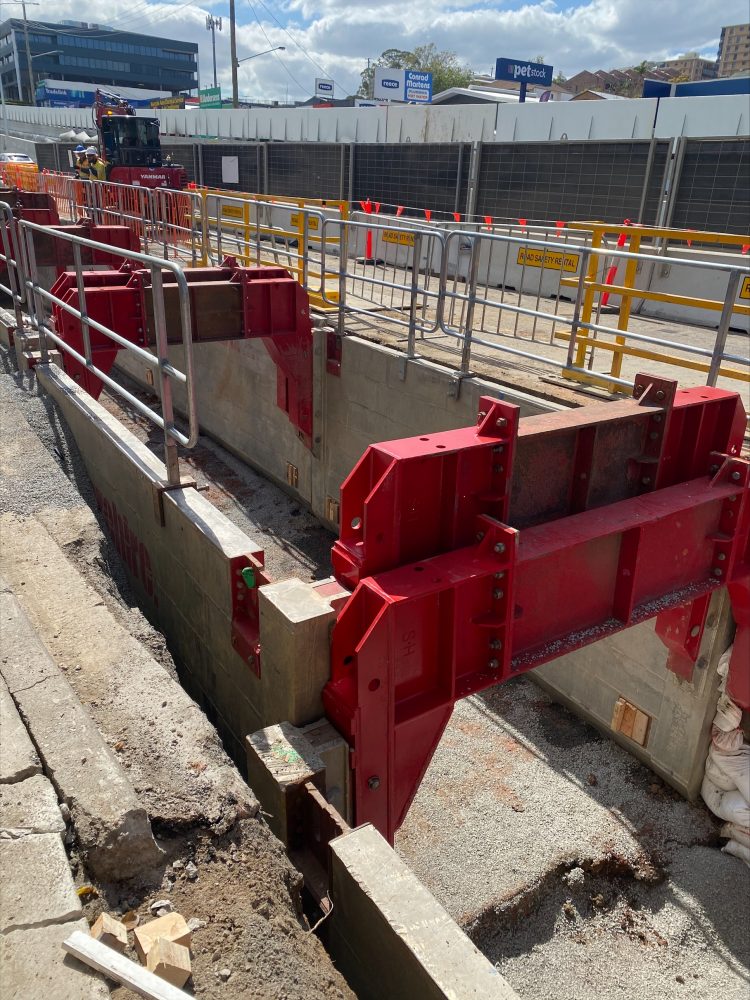

Our Arch Spreader system can be fitted to our Steel & HD Aluminium Trench box range allowing 2500mm under strut clearance.

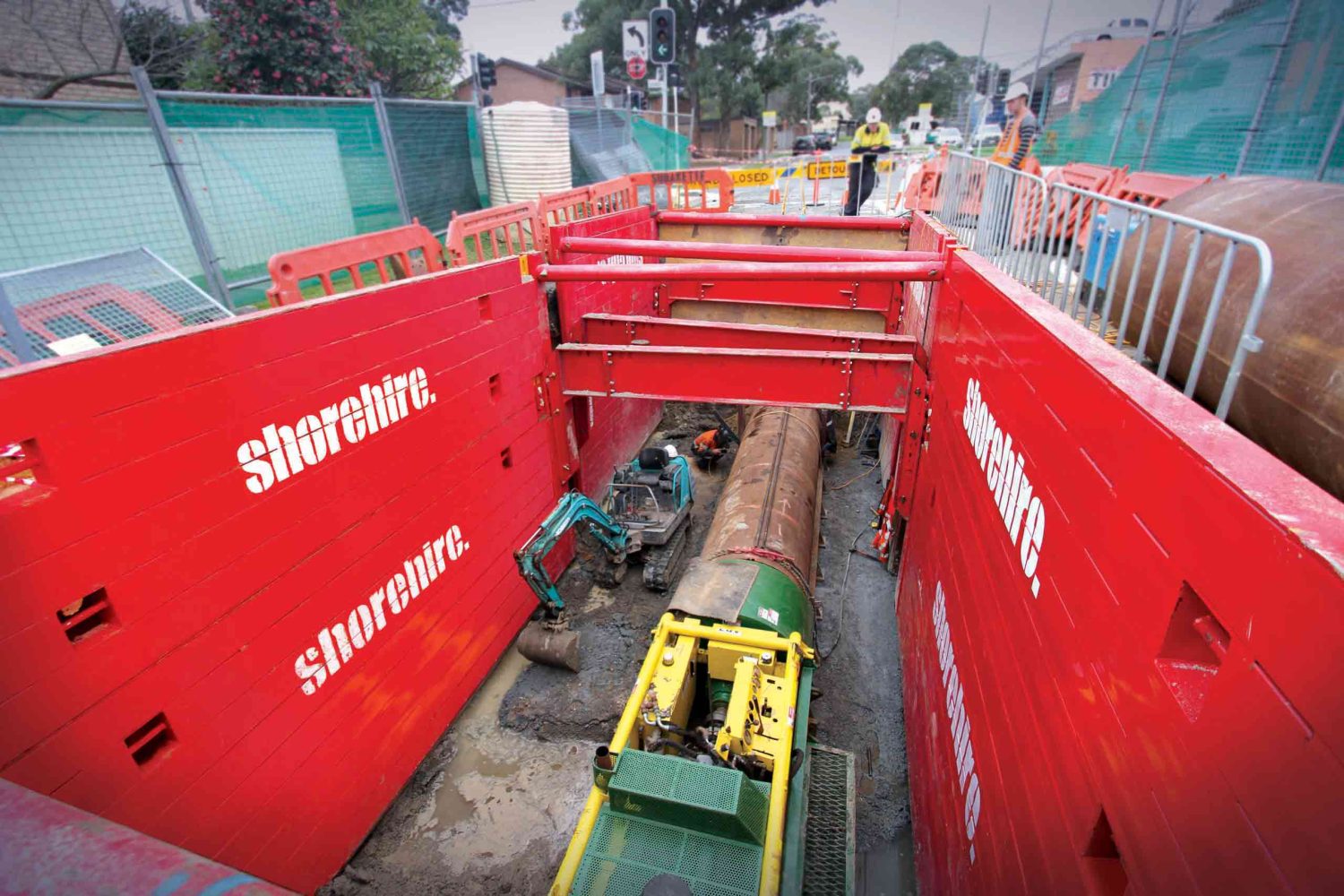

Various widths are available to suite your onsite requirements. Our Arch Spread system is ideal for applications such as the laying of large diameter pipes & the installation of tunnel bore machines.

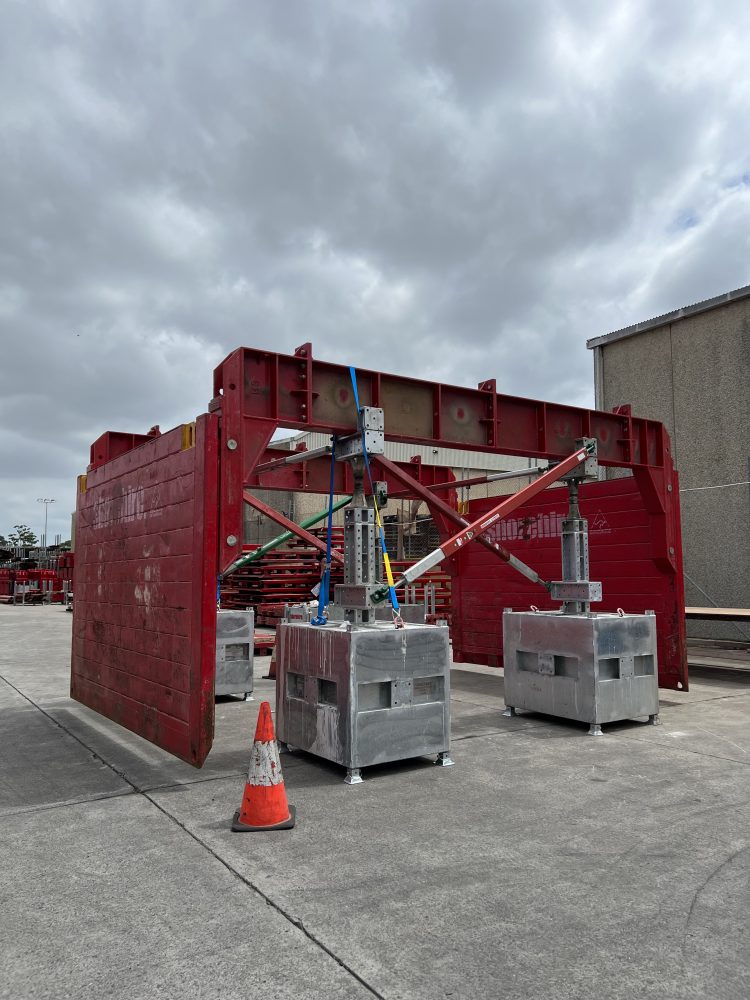

Assembly onsite is quick and easy, with a range of bolt-on extensions enabling the spreaders to be pinned in place on standard double walled shields, to create exceptionally high clearances.



Specifications

Description INTERNAL BETWEEN PANELS
ARCH SPREADER ONLY 1500 mm
With 500MM EXTENTION SPACER 2000 mm
With 1000MM EXTENTION SPACER 2500 mm
With 2000MM EXTENTION SPACER 3500 mm
With 2500MM EXTENTION SPACER 4000 mm
With 3000MM EXTENTION SPACER 4500 mm
With 3500MM EXTENTION SPACER 5000 mm

Weight

Description Weight
Arch spreader posts one set of two 2 posts left and right hand side 470kg
500mm Spreader extension 66kg
1000mm Spreader extension 112 kg
2000mm Spreader extension 204 kg
2500mm Spreader extension 252 kg
3000mm Spreader extension 297 kg

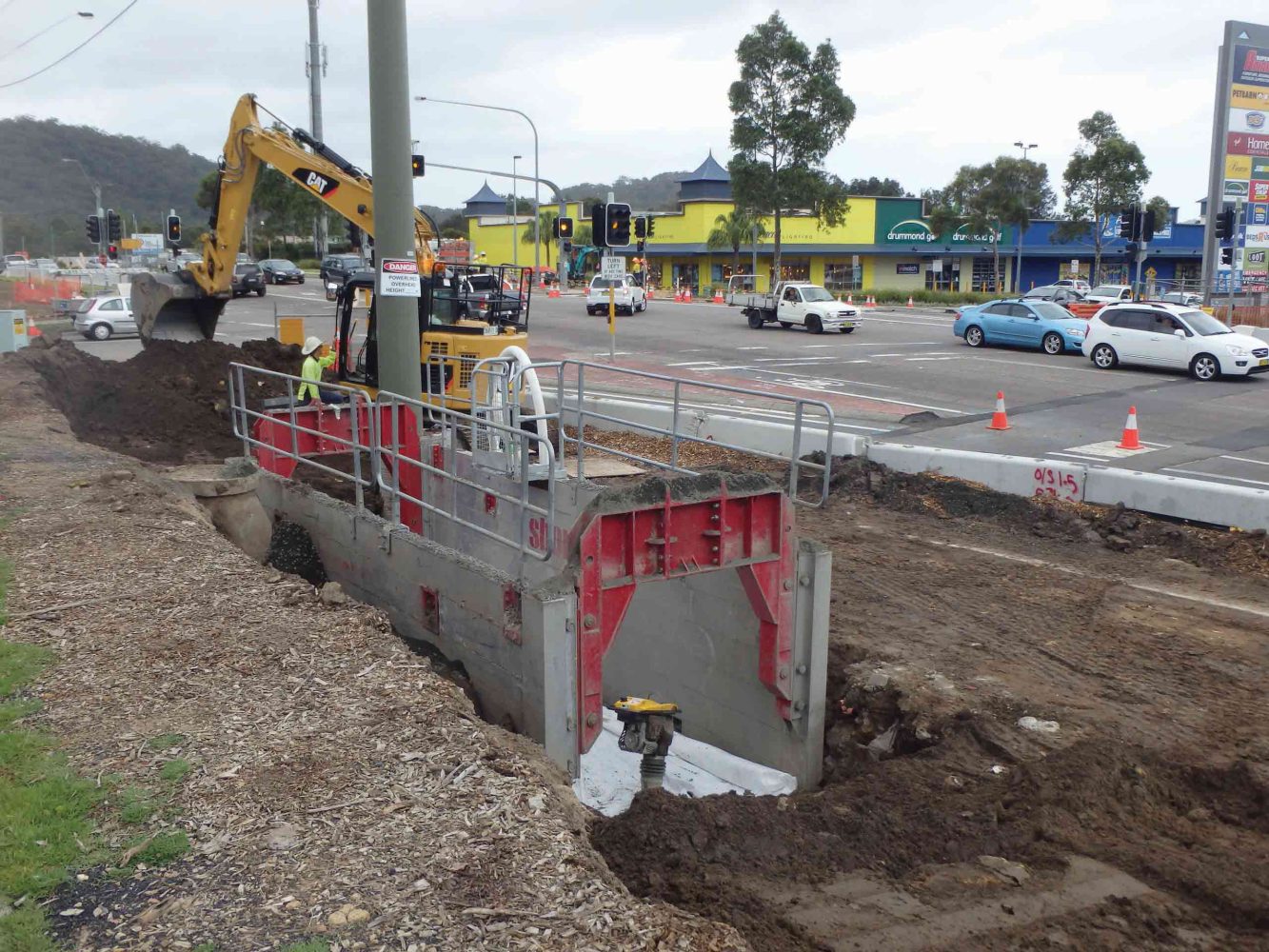

Arch spreaders are the ideal complement to other Shore Hire trench shoring systems for the laying of large objects where high under-strut clearance is required, even where minimal trench width exists. Applications include bore pits, large diameter pipes and box culverts.

Specifications

Description INTERNAL BETWEEN PANELS
ARCH SPREADER ONLY 1500 mm
With 500MM EXTENTION SPACER 2000 mm
With 1000MM EXTENTION SPACER 2500 mm
With 2000MM EXTENTION SPACER 3500 mm
With 2500MM EXTENTION SPACER 4000 mm
With 3000MM EXTENTION SPACER 4500 mm
With 3500MM EXTENTION SPACER 5000 mm

Weight

Description Weight
Arch spreader posts one set of two 2 posts left and right hand side 470kg
500mm Spreader extension 66kg
1000mm Spreader extension 112 kg
2000mm Spreader extension 204 kg
2500mm Spreader extension 252 kg
3000mm Spreader extension 297 kg
  • 2500mm clearance beneath bottom strut
  • Compatible with Steel & HD Aluminium Trench Boxes
  • Minimum width internal 1500mm
  • Maximum width internal 6500mm
  • Manufactured & Certified to AS4744
  • Simple design for easy assembly and installation
  • Professional Engineering advice available in-house
  • Custom design available to meet customer
    requirements

Specifications

Description INTERNAL BETWEEN PANELS
ARCH SPREADER ONLY 1500 mm
With 500MM EXTENTION SPACER 2000 mm
With 1000MM EXTENTION SPACER 2500 mm
With 2000MM EXTENTION SPACER 3500 mm
With 2500MM EXTENTION SPACER 4000 mm
With 3000MM EXTENTION SPACER 4500 mm
With 3500MM EXTENTION SPACER 5000 mm

Weight

Description Weight
Arch spreader posts one set of two 2 posts left and right hand side 470kg
500mm Spreader extension 66kg
1000mm Spreader extension 112 kg
2000mm Spreader extension 204 kg
2500mm Spreader extension 252 kg
3000mm Spreader extension 297 kg

The Arch Spreaders can be delivered standalone or as as part of our comprehensive full-service solution. This includes:

  • Free on-site assessment
  • Engineering design
  • Delivery

For safety products available for use with the Arch Spreaders, click here



Specifications

Description INTERNAL BETWEEN PANELS
ARCH SPREADER ONLY 1500 mm
With 500MM EXTENTION SPACER 2000 mm
With 1000MM EXTENTION SPACER 2500 mm
With 2000MM EXTENTION SPACER 3500 mm
With 2500MM EXTENTION SPACER 4000 mm
With 3000MM EXTENTION SPACER 4500 mm
With 3500MM EXTENTION SPACER 5000 mm

Weight

Description Weight
Arch spreader posts one set of two 2 posts left and right hand side 470kg
500mm Spreader extension 66kg
1000mm Spreader extension 112 kg
2000mm Spreader extension 204 kg
2500mm Spreader extension 252 kg
3000mm Spreader extension 297 kg
