Light Duty Aluminium Shoring Boxes

SMOOTHWALL TRENCH BOX SPECIFICATIONS

1.8m x 1.8m1.8m x 2.4m2.4m x 2.4m2.4m x 3.0m
Height1840mm1840mm2450mm2450mm
Length1840mm2450mm2450mm3050mm
Internal Width to Walers400-2060mm400-2060mm400-2060mm400-2060mm
External Width of Panels790-2450mm790-2450mm790-2450mm790-2450mm
ST 950 - Internal Width to Walers400-710mm400-710mm400-710mm400-710mm
ST 950- Internal Width of Panels640-950mm640-950mm640-950mm640-950mm
ST 950- External Width to Panels790-1100mm790-1100mm790-1100mm790-1100mm
ST 1450- Internal Width of Walers710-1210mm710-1210mm710-1210mm710-1210mm
ST 1450- Internal Width to Panels950-1450mm950-1450mm950-1450mm950-1450mm
ST 1450- External Width to Panels1100-1600mm1100-1600mm1100-1600mm1100-1600mm
ST 2300- Internal Width to Walers1160-2060mm1160-2060mm1160-2060mm1160-2060mm
ST 2300- Internal Width to Panels1400-2300mm1400-2300mm1400-2300mm1400-2300mm
ST 2300- External Width to Panels1550-2450mm1550-2450mm1550-2450mm1550-2450mm
Clearance Between Struts1320mm1930mm1930mm2530mm
Clearance Under Bottom Strut815mm815mm1195mm1195mm
Weight- with ST 950 Struts425kg525kg615kg850kg
Panel Thickness75mm75mm75mm75mm
Safe Working Load Limit- Static48kPa33kPa23kPa21kPa



STRUT DIMENSIONS

Light Duty Aluminium Shoring Boxes

Description 1DC84AF1-36F8-424F-A2E3-2C7AE1790A18

Shore Hire’s light-duty smooth wall trench shoring boxes are aluminium shoring shields that provide the benefits of traditional aluminium shoring with the solid wall security of high-strength extruded aluminium sections.

Our light-duty aluminium shoring range weighs as little as possible while still having high loading, which means they’re easier to install, and you save big on operational costs by only needing small machinery for installation, they also come with adjustable struts for optimal versatility.

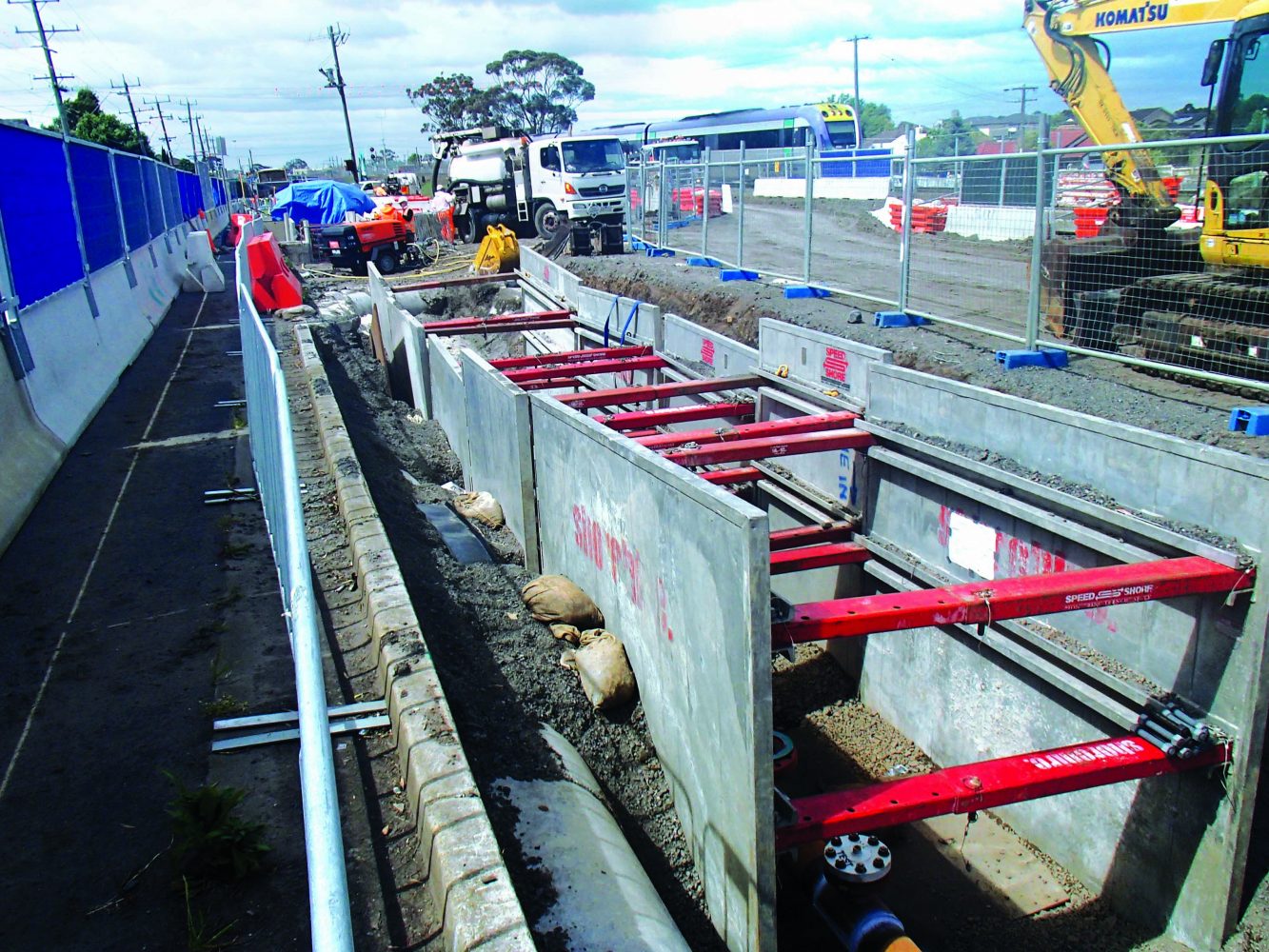

Ideal for use in a range of maintenance and utility installation situations when using small excavators, our shoring shields provide safe and effective trench support and greater under-strut clearance than previously possible for three- and four-sided trenches. The lightweight and robust design provide optimal personnel protection, with rapid assembly and disassembly possible via quick connect pins and fittings so there’s minimal labour time and cost involved when using this amazing product.

Features 1DC84AF1-36F8-424F-A2E3-2C7AE1790A18
  • Versatile with various sizes, so that whatever the job requires, Shore Hire has the option to suit
  • Foam filled to reduce waterlogging so that when it comes time to pull it out of the ground, it’s not going to be twice as heavy
  • Lightweight and robust extruded design for maximum kPa rating while being as light as possible which means easier installation for fewer headaches and costs on site
  • Hand assembly possible in minutes to save you time and manpower on your next project
  • Ideal for use with small excavators and rubber-tyred backhoes, allowing easy delivery and installation, which means less machine hire costs and space required to get these boxes in and out of the ground
  •  Adjustable steel speed struts for variable lengths in the pit, which means you’re not swapping struts in and out, and if the trench isn’t the exact same width for the whole run, you don’t have to switch shoring, saving you big in timelines and expenses
  • Foam-filled, high-yield aluminium panels prevent dirt and water build-up so that when it’s time to remove the box from the trench, it’s not twice as heavy, and you can use the same machine you put it in with
  • High under-strut clearance to allow for a range of applications on your next project
  • A range of technical support is available, so you know that what you’re putting in the ground is the absolute best and safest product possible
  • Easy to assemble and options for Shore Hire to pre-build where possible to save you as much time and money as possible on site
  • Manufactured & Certified AS 4744.1-2000 so you know that every safety checkbox is ticked when you use our products
  • Internal working widths of 0.4m to 2m to allow for any application
  • Compatible with Edge Safe Protection Range for even more safety options
  • Optimum operator visibility for maximum on-site safety
  • End plates are available, so you can enclose the shoring system
  • Equipped with a Four Point Lifting System for  easier and safer installs
  • High-strength aluminium construction for the most robust and safest shoring system possible
  • Smooth wall design means less friction against external grounds so the box slides in and out of the excavation as easy as possible
Suited For 1DC84AF1-36F8-424F-A2E3-2C7AE1790A18

Shore Hire’s smooth wall and light-duty aluminium shoring boxes are an incredibly versatile and safe trench shoring system for general construction and utilities contractors, with the flexibility to use a range of different sizes and lengths, the superior strength: weight ratio of our shoring boxes aids in effectively supporting trenches up to any depth, provided the working load limit of the relevant box is not exceeded.

Should you require advice, we always recommend you speak to our technical sales team before any hire.
