Synchronised Hydraulic Jacks
HIGH TONNAGE LOCKING COLLAR CYLINDERS SPECIFICATIONS
| Model Number | Cylinder Capacity (t-kN) | Stroke (mm) | Collapsed Height (mm) | Extended Height (mm) | Outside Diameter (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| RSLC-502 | 50t - 496kN | 50 | 164 | 214 | 125 | 15 |
| RSLC-504 | 50t - 496kN | 100 | 214 | 314 | 125 | 20 |
| RSLC-506 | 50t - 496kN | 150 | 264 | 414 | 125 | 25 |
| RSLC-1002 | 100t - 929kN | 50 | 187 | 237 | 165 | 30 |
| RSLC-2002 | 200t - 1859kN | 50 | 243 | 293 | 235 | 83 |
| RPLC-1602 | 160t - 1619kN | 45 | 148 | 193 | 220 | 44 |
| RPLC-2502 | 250t - 2567kN | 45 | 159 | 204 | 275 | 74 |
| RPLC-602 | 60t - 606kN | 50 | 125 | 175 | 140 | 15 |
SINGLE ACTION LOW PROFILE SPECIFICATIONS
| Model Number | Cylinder Capacity (t-kN) | Stroke (mm) | Collapsed Height (mm) | Extended Height (mm) | Outside Diameter (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| RLP-101 | 10t - 101kN | 38 | 88 | 126 | 69 | 4.1 |
| RLP-502 | 50t - 435kN | 60 | 122 | 182 | 124 | 10.9 |
| RLP-1002 | 100t - 887kN | 57 | 141 | 198 | 165 | 22.7 |
SINGLE ACTION CYLINDER SPECIFICATIONS
| Model Number | Cylinder Capacity (t-kN) | Stroke (mm) | Collapsed Height (mm) | Extended Height (mm) | Outside Diameter (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| RJ-1502 | 150t - 1407kN | 50 | 200 | 250 | 215 | 50 |
| RG-156 | 15t - 142kN | 152 | 271 | 423 | 69 | 6.8 |
| RG-104 | 10t - 101kN | 105 | 171 | 276 | 57 | 3.3 |
| RG-106 | 10t - 101kN | 156 | 247 | 403 | 57 | 4.4 |
| RG-154 | 15t - 142kN | 101 | 200 | 301 | 69 | 5.0 |
| RFJ-100 | 5t - 45kN | 12 | 43 | 55 | 82x55 | 1.4 |
COMPACT FLAT CYLINDER SPECIFICATIONS
| Model Number | Cylinder Capacity (t-kN) | Stroke (mm) | Collapsed Height (mm) | Extended Height (mm) | Outside Diameter (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| RFJ-200 | 20t - 201kN | 11 | 58 | 71 | 101 x 76 | 3.1 |
| RFJ-500 | 50t - 435kN | 16 | 66 | 82 | 140 x 114 | 6.8 |
| RFJ-1000 | 100t - 887kN | 16 | 85 | 101 | 178 x 153 | 14.5 |
Synchronised Hydraulic Jacks
Shore Hire provide a complete turnkey solution for any projects requiring hydraulic jacking. Our hydraulic jack range is often used in tandem with our temporary propping solutions, and Shore Hire’s on-site hydraulic jacking team are nationally recognised as the experts in the hydraulic jacking space.

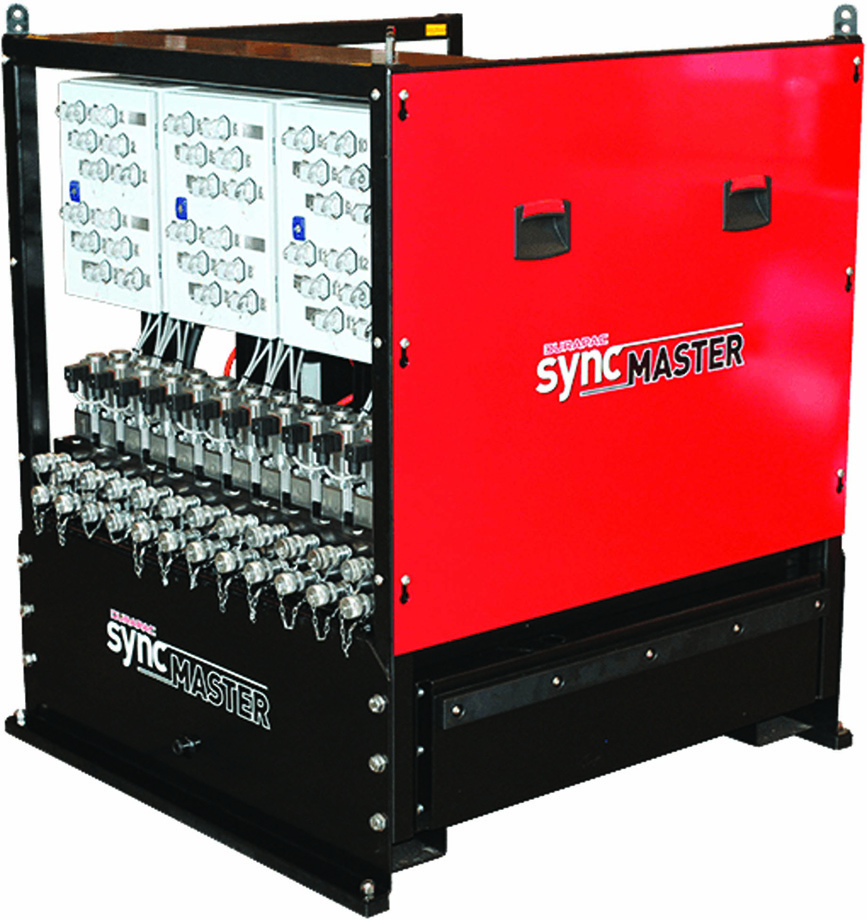

Shore Hire’s synchronised hydraulic jacking system, the Sync Master, is a fully wi-fi enabled major jacking system which can concurrently monitor up to 32 individual lifting points and is the only of its kind in the southern hemisphere. The system’s wi-fi enablement allows remote monitoring of shifting loads with phone alerts for any changes outside of tolerance so you can have full peace of mind that your project is moving along safely.
Our experienced team of engineers will provide a detailed design & the Hydraulic lift will be carried out by our team of qualified riggers. Shore Hire also provides technical backup, load monitoring & servicing prioritising safety at all times.
- Wi-Fi enablement to allow remote tracking of movement changes
- Phone alerts can be setup for emergency response to anything outside of tolerance to give you full peace of mind
- Huge range of different cylinders to suit any jacking job
- High Working Load Limit (WLL) with a huge range of sizes to suit any application
- Experienced and dedicated on-site team to assist with the controlled lift or descent and give you full peace of mind
- Range of accessories available to suit various applications
- Compatible with a range of other Shore Hire propping products for full flexibility and maximum strength
- Technical product experts and engineers at your service to step you through the process on-site so you have full peace of mind
Hydraulic Jacks are a versatile pieces of equipment that can be used for a range of applications, but primarily they will fall into these categories:
- Controlled lifts
- Controlled descents
- Load monitoring
