Trishores

Availability: Same Day

Talk to our team

Submit Enquiry
Download Brochure
Add to Shortlist
Send to Email
  • Description
  • Features
  • Suited for
  • Inclusions

Trishore props support heavy vertical loads at considerable heights and are therefore ideal for heavy duty shoring and underpinning in a range of construction environments.

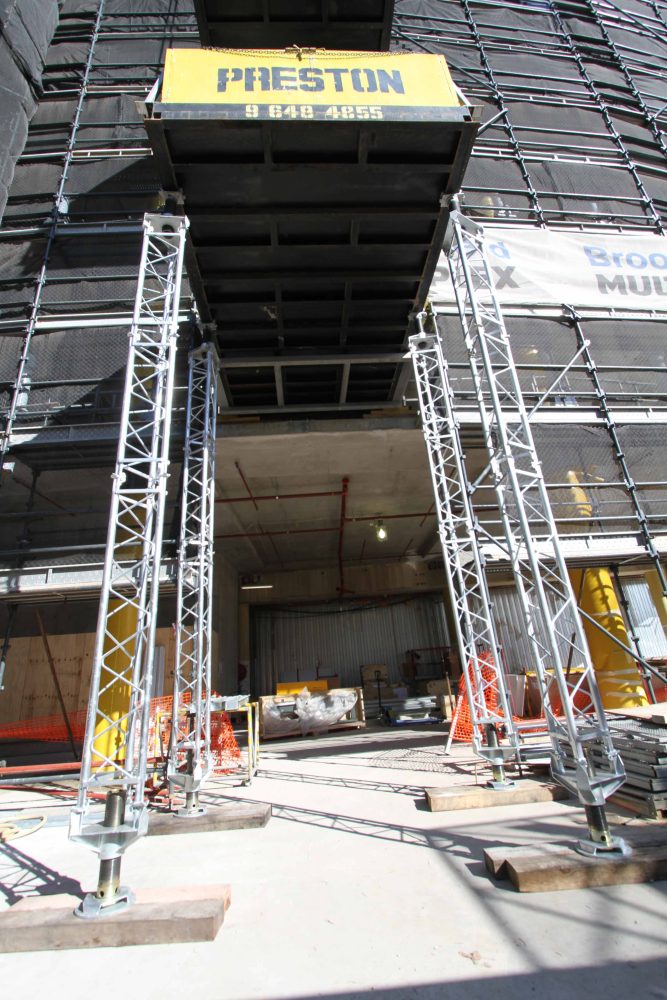

Positioned in groups, trishores can support exceptionally heavy and concentrated loads including multiple suspended floors in high-rise structures or even bridge applications. Trishores also have the advantage of providing clear access over obstructions or access ways, providing additional flexibility onsite.

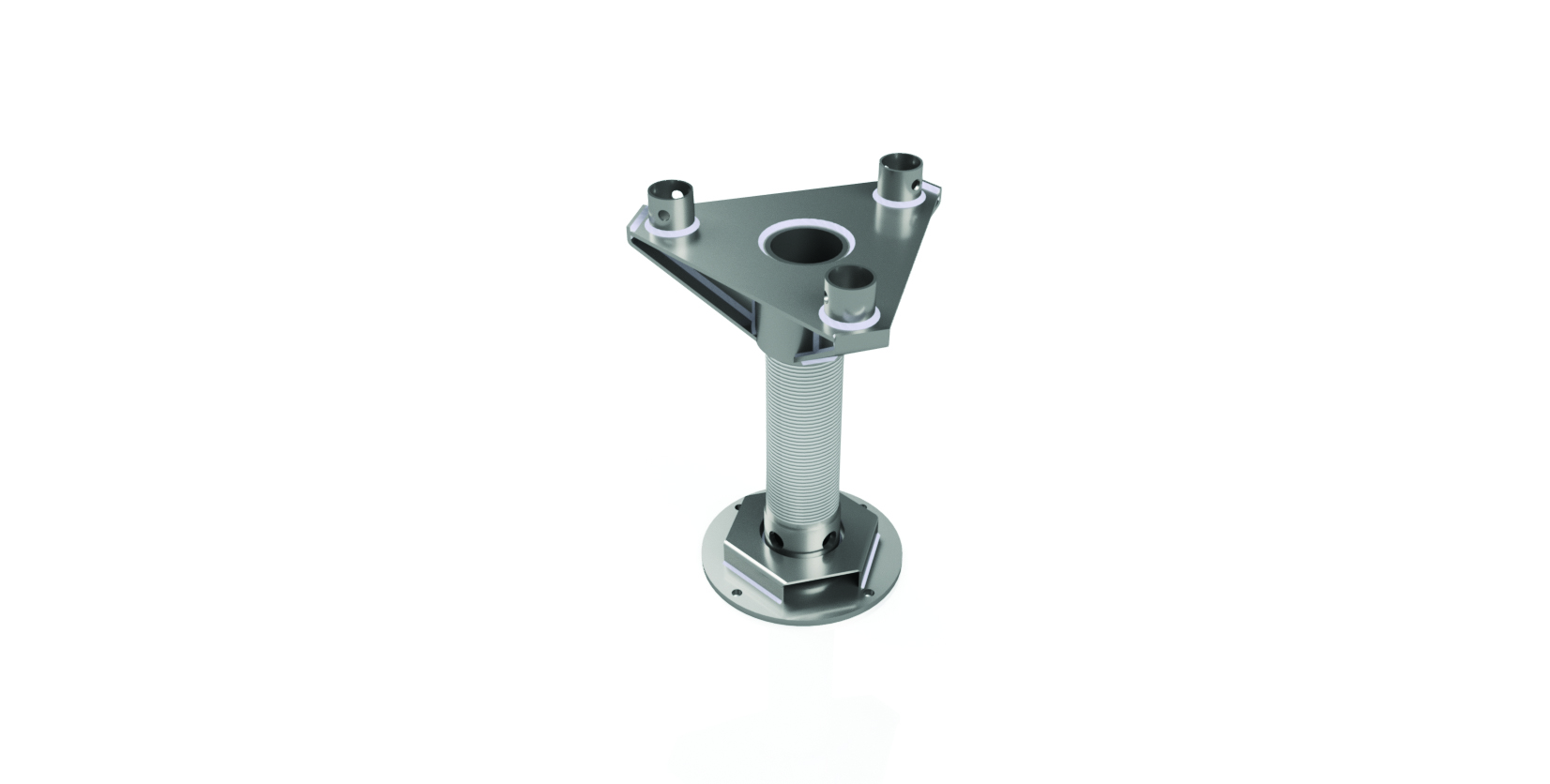

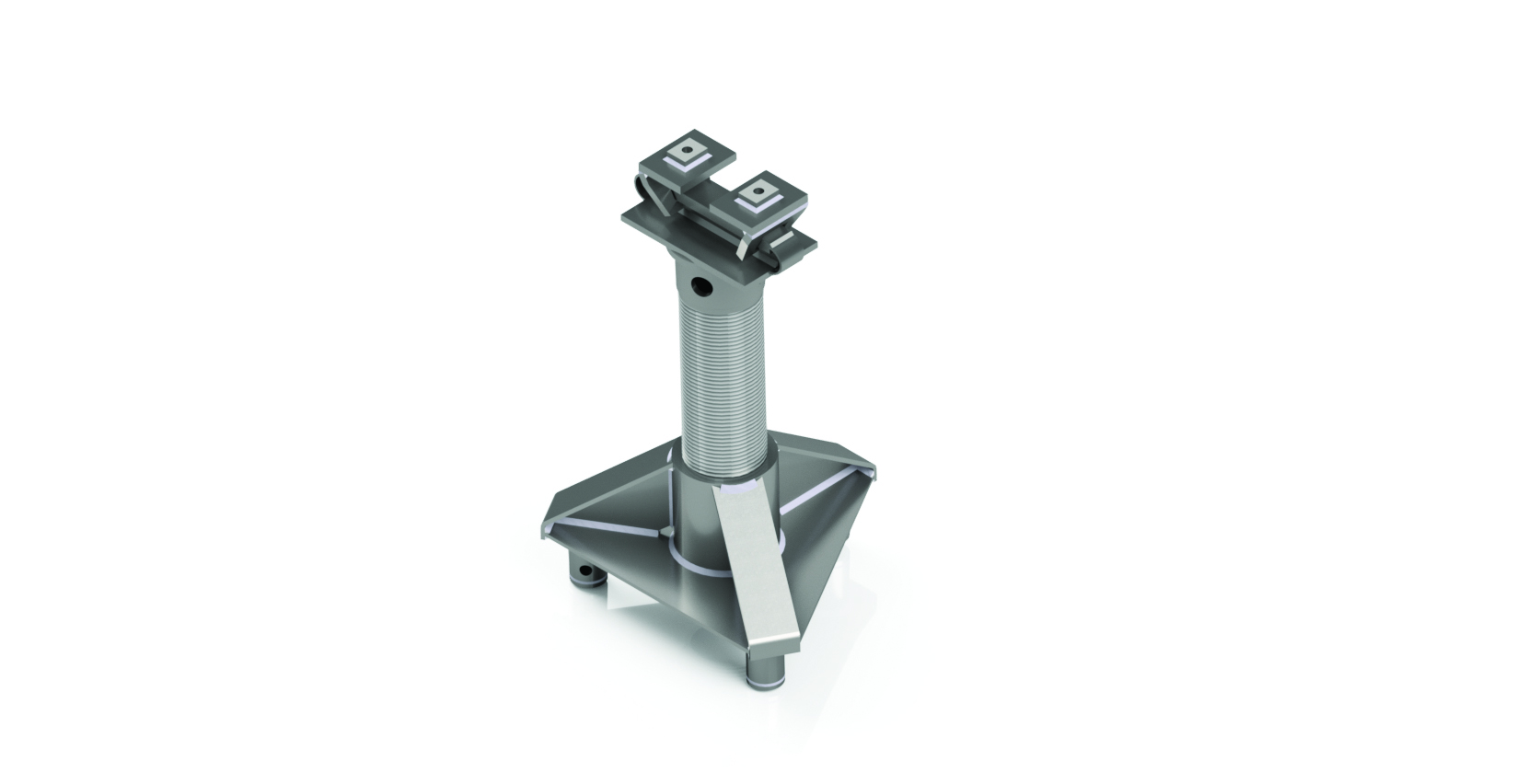

While bearing very heavy loads trishores allow fine adjustment by screw jacks and consist of lightweight sections (with three intermediate section lengths available), thereby providing advantages in labour and transport.
For personalised advice on use of trishores in your construction project, including fitting to Australian Standards, contact the team at Shore Hire.
Our trishores have been used in a range of construction projects including Pyrmont, Ashfield, Manly Cove, Burraneer and St Leonards.


TRISHORE SPECIFICATIONS

Mass Overall Height of
Trishore with Base Jack
and Flat Head Piece		 Number of Intermediate
Sections Required		 Overall Height of
Trishore with
Base Jack and Head Jack		 Mass
kg Metres 1250 1500 2000 Metres kg
48 0.54 – 0.81 – – – 1.10 – 1.30 66
76 1.78 – 2.06 1 – – 1.19 – 2.56 94
80 2.03 – 2.31 – 1 – 2.24 – 2.81 97
89 2.53 – 2.81 – – 1 2.74 – 3.31 107
104 3.03 – 3.31 2 – – 3.24 – 3.81 122
109 3.28 – 3.56 1 1 – 3.49 – 4.06 127
113 3.53 – 3.81 – 2 – 3.74 – 4.31 131
117 3.78 – 4.07 1 – 1 3.99 – 4.56 135
122 4.03 – 4.31 – 1 1 4.24 – 4.81 140
132 4.28 – 4.56 3 – – 4.49 – 5.06 150
130 4.53 – 4.81 – – 2 4.74 – 5.31 148
141 4.78 – 5.06 1 2 – 4.99 – 5.56 159
145 5.03 – 5.31 2 – 1 5.24 – 5.81 163
150 5.28 – 5.56 1 1 1 5.49 – 6.06 168
154 5.53 – 5.81 – 2 1 5.74 – 6.31 172
158 5.78 – 6.06 1 – 2 5.99 – 6.56 177
163 6.03 – 6.31 – 1 2 6.24 – 6.81 181
173 6.28 – 6.56 3 – 1 6.49 – 7.06 191
171 6.53 – 6.81 – – 3 6.74 – 7.31 190
182 6.78 – 7.06 1 2 1 6.99 – 7.56 200
186 7.03 – 7.31 2 – 2 7.24 – 7.81 205
191 7.28 – 7.56 1 1 2 7.49 – 8.06 209
195 7.53 – 7.81 – 2 2 7.74 – 8.31 214
200 7.78 – 8.06 1 – 3 7.99 – 8.56 218
204 8.03 – 8.31 – 1 3 8.24 – 8.81 222
215 8.28 – 8.56 3 – 2 8.49 – 9.06 233
213 8.53 – 8.81 – – 4 8.74 – 9.31 231
224 8.78 – 9.06 1 2 2 8.99 – 9.56 242
228 9.03 – 9.31 2 – 3 9.24 – 9.81 246
232 9.28 – 9.56 1 1 3 9.49 – 10.06 251
236 9.53 – 9.81 – 2 3 9.74 – 10.31 255
241 9.78 – 10.06 1 – 4 9.99 – 10.56 269
245 10.03 – 10.31 – 1 4 10.24 – 10.81 264
256 10.28 – 10.56 3 – 3 10.49 – 11.06 273
254 10.53 – 10.81 – – 5 10.74 – 11.31 272
265 10.78 – 11.06 1 2 3 10.99 – 11.56 283
269 11.03 – 11.31 2 – 4 11.24 – 11.81 287
273 11.28 – 11.56 1 1 4 11.49 – 13.06 292
278 11.53 – 11.81 – 2 4 11.74 – 12.31 296
282 11.78 – 12.06 1 – 5 11.99 – 12.56 300
286 12.03 – 12.31 – 1 5 12.24 – 12.81 305

Features

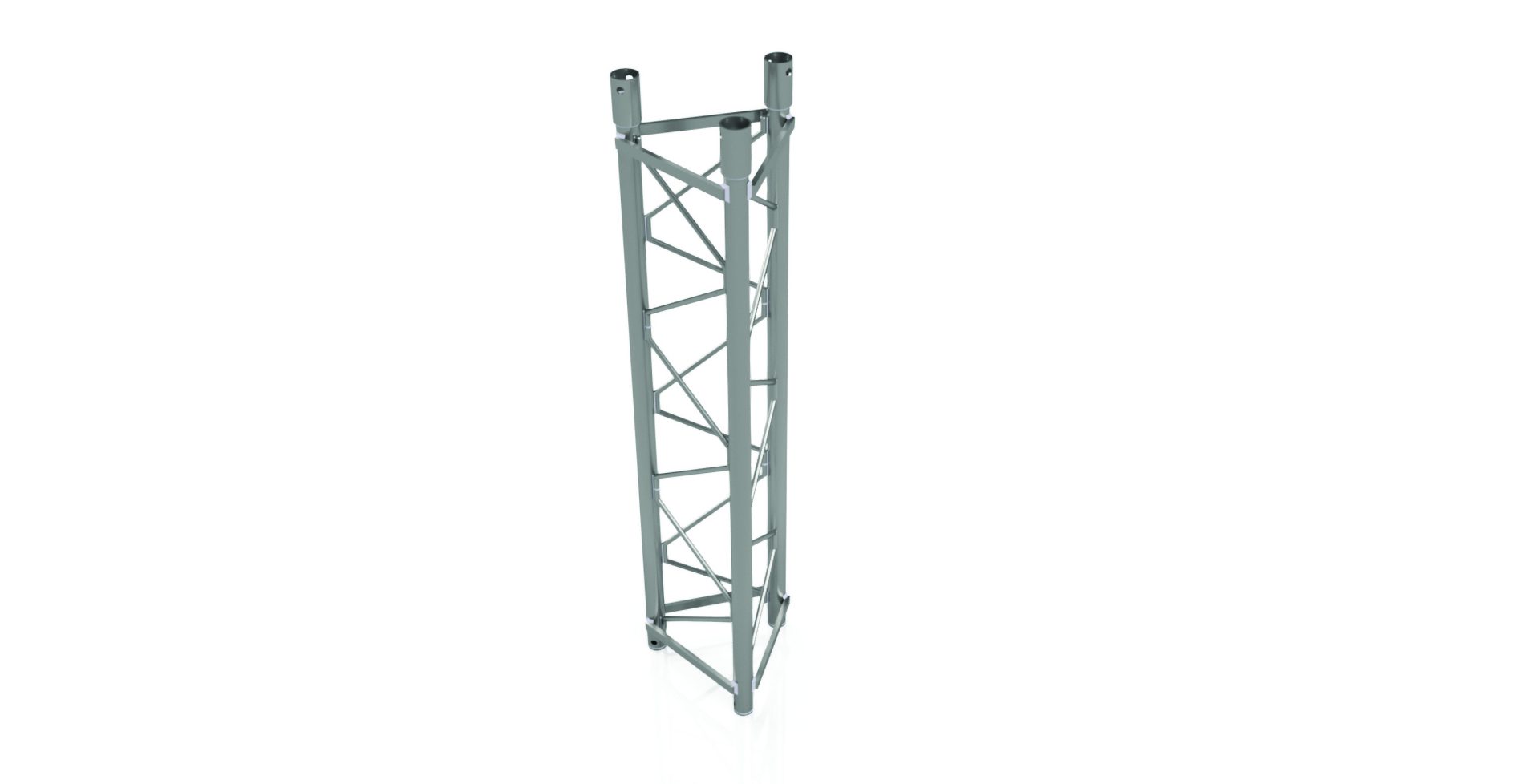

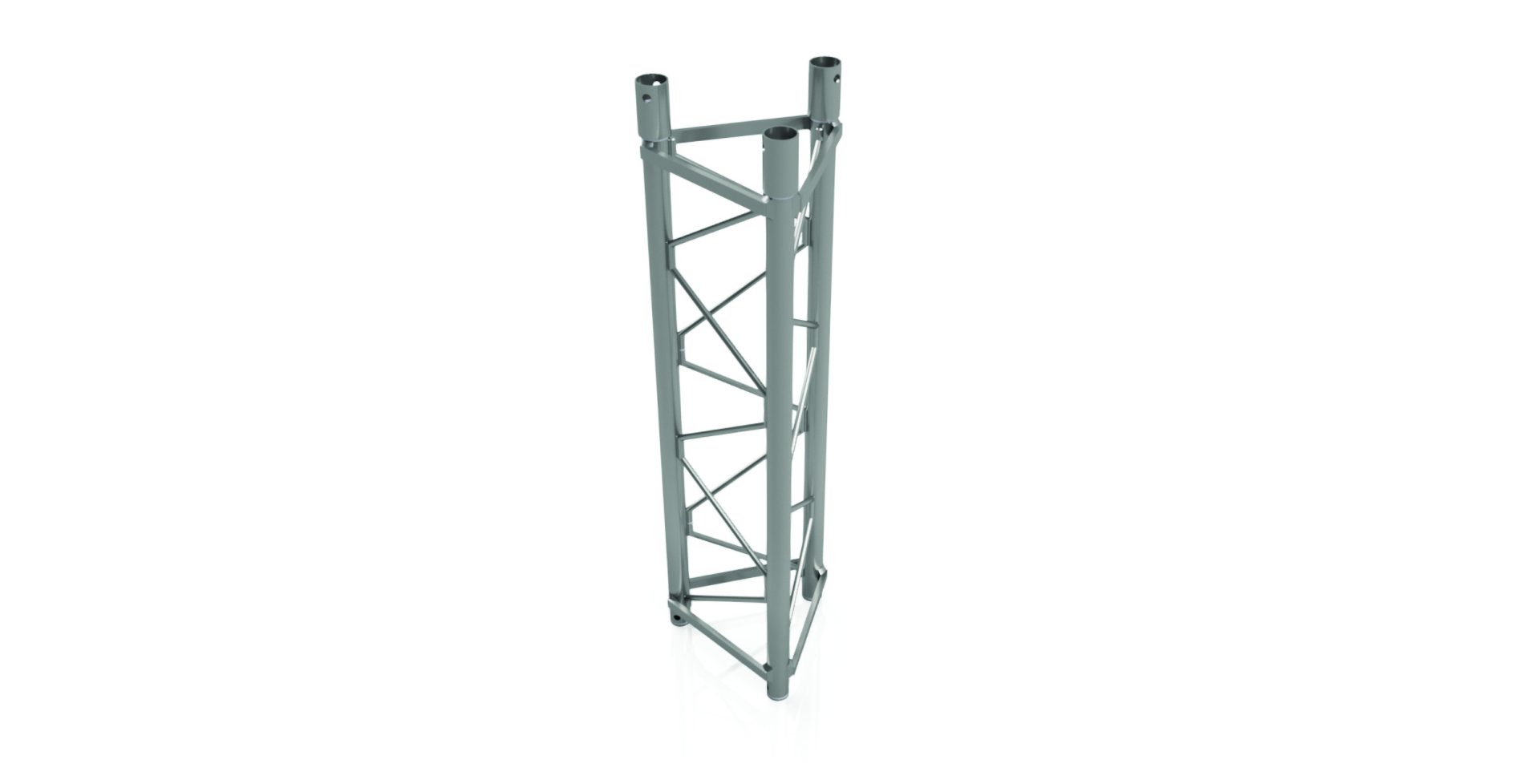

  • Intermediate sections available in three different lengths
  •  Domed bearing plate to ensure concentric loading
  • Quick action connector

Advantages

  • Able to support heavy loads at considerable height
  • Fine adjustment by screw jacks
  • Trishores braced in groups can support exceptionally heavy loads
  • Light weight sections for easy handling

TRISHORE SPECIFICATIONS

Mass Overall Height of
Trishore with Base Jack
and Flat Head Piece		 Number of Intermediate
Sections Required		 Overall Height of
Trishore with
Base Jack and Head Jack		 Mass
kg Metres 1250 1500 2000 Metres kg
48 0.54 – 0.81 – – – 1.10 – 1.30 66
76 1.78 – 2.06 1 – – 1.19 – 2.56 94
80 2.03 – 2.31 – 1 – 2.24 – 2.81 97
89 2.53 – 2.81 – – 1 2.74 – 3.31 107
104 3.03 – 3.31 2 – – 3.24 – 3.81 122
109 3.28 – 3.56 1 1 – 3.49 – 4.06 127
113 3.53 – 3.81 – 2 – 3.74 – 4.31 131
117 3.78 – 4.07 1 – 1 3.99 – 4.56 135
122 4.03 – 4.31 – 1 1 4.24 – 4.81 140
132 4.28 – 4.56 3 – – 4.49 – 5.06 150
130 4.53 – 4.81 – – 2 4.74 – 5.31 148
141 4.78 – 5.06 1 2 – 4.99 – 5.56 159
145 5.03 – 5.31 2 – 1 5.24 – 5.81 163
150 5.28 – 5.56 1 1 1 5.49 – 6.06 168
154 5.53 – 5.81 – 2 1 5.74 – 6.31 172
158 5.78 – 6.06 1 – 2 5.99 – 6.56 177
163 6.03 – 6.31 – 1 2 6.24 – 6.81 181
173 6.28 – 6.56 3 – 1 6.49 – 7.06 191
171 6.53 – 6.81 – – 3 6.74 – 7.31 190
182 6.78 – 7.06 1 2 1 6.99 – 7.56 200
186 7.03 – 7.31 2 – 2 7.24 – 7.81 205
191 7.28 – 7.56 1 1 2 7.49 – 8.06 209
195 7.53 – 7.81 – 2 2 7.74 – 8.31 214
200 7.78 – 8.06 1 – 3 7.99 – 8.56 218
204 8.03 – 8.31 – 1 3 8.24 – 8.81 222
215 8.28 – 8.56 3 – 2 8.49 – 9.06 233
213 8.53 – 8.81 – – 4 8.74 – 9.31 231
224 8.78 – 9.06 1 2 2 8.99 – 9.56 242
228 9.03 – 9.31 2 – 3 9.24 – 9.81 246
232 9.28 – 9.56 1 1 3 9.49 – 10.06 251
236 9.53 – 9.81 – 2 3 9.74 – 10.31 255
241 9.78 – 10.06 1 – 4 9.99 – 10.56 269
245 10.03 – 10.31 – 1 4 10.24 – 10.81 264
256 10.28 – 10.56 3 – 3 10.49 – 11.06 273
254 10.53 – 10.81 – – 5 10.74 – 11.31 272
265 10.78 – 11.06 1 2 3 10.99 – 11.56 283
269 11.03 – 11.31 2 – 4 11.24 – 11.81 287
273 11.28 – 11.56 1 1 4 11.49 – 13.06 292
278 11.53 – 11.81 – 2 4 11.74 – 12.31 296
282 11.78 – 12.06 1 – 5 11.99 – 12.56 300
286 12.03 – 12.31 – 1 5 12.24 – 12.81 305

Trishores are suited to any underpinning application where heavy vertical loads require shoring at heights, including where clear access is required underneath, including suspended floors in high rise structures and bridge supports.

TRISHORE SPECIFICATIONS

Mass Overall Height of
Trishore with Base Jack
and Flat Head Piece		 Number of Intermediate
Sections Required		 Overall Height of
Trishore with
Base Jack and Head Jack		 Mass
kg Metres 1250 1500 2000 Metres kg
48 0.54 – 0.81 – – – 1.10 – 1.30 66
76 1.78 – 2.06 1 – – 1.19 – 2.56 94
80 2.03 – 2.31 – 1 – 2.24 – 2.81 97
89 2.53 – 2.81 – – 1 2.74 – 3.31 107
104 3.03 – 3.31 2 – – 3.24 – 3.81 122
109 3.28 – 3.56 1 1 – 3.49 – 4.06 127
113 3.53 – 3.81 – 2 – 3.74 – 4.31 131
117 3.78 – 4.07 1 – 1 3.99 – 4.56 135
122 4.03 – 4.31 – 1 1 4.24 – 4.81 140
132 4.28 – 4.56 3 – – 4.49 – 5.06 150
130 4.53 – 4.81 – – 2 4.74 – 5.31 148
141 4.78 – 5.06 1 2 – 4.99 – 5.56 159
145 5.03 – 5.31 2 – 1 5.24 – 5.81 163
150 5.28 – 5.56 1 1 1 5.49 – 6.06 168
154 5.53 – 5.81 – 2 1 5.74 – 6.31 172
158 5.78 – 6.06 1 – 2 5.99 – 6.56 177
163 6.03 – 6.31 – 1 2 6.24 – 6.81 181
173 6.28 – 6.56 3 – 1 6.49 – 7.06 191
171 6.53 – 6.81 – – 3 6.74 – 7.31 190
182 6.78 – 7.06 1 2 1 6.99 – 7.56 200
186 7.03 – 7.31 2 – 2 7.24 – 7.81 205
191 7.28 – 7.56 1 1 2 7.49 – 8.06 209
195 7.53 – 7.81 – 2 2 7.74 – 8.31 214
200 7.78 – 8.06 1 – 3 7.99 – 8.56 218
204 8.03 – 8.31 – 1 3 8.24 – 8.81 222
215 8.28 – 8.56 3 – 2 8.49 – 9.06 233
213 8.53 – 8.81 – – 4 8.74 – 9.31 231
224 8.78 – 9.06 1 2 2 8.99 – 9.56 242
228 9.03 – 9.31 2 – 3 9.24 – 9.81 246
232 9.28 – 9.56 1 1 3 9.49 – 10.06 251
236 9.53 – 9.81 – 2 3 9.74 – 10.31 255
241 9.78 – 10.06 1 – 4 9.99 – 10.56 269
245 10.03 – 10.31 – 1 4 10.24 – 10.81 264
256 10.28 – 10.56 3 – 3 10.49 – 11.06 273
254 10.53 – 10.81 – – 5 10.74 – 11.31 272
265 10.78 – 11.06 1 2 3 10.99 – 11.56 283
269 11.03 – 11.31 2 – 4 11.24 – 11.81 287
273 11.28 – 11.56 1 1 4 11.49 – 13.06 292
278 11.53 – 11.81 – 2 4 11.74 – 12.31 296
282 11.78 – 12.06 1 – 5 11.99 – 12.56 300
286 12.03 – 12.31 – 1 5 12.24 – 12.81 305

The Trishores can be delivered standalone or as as part of our comprehensive full-service solution. This includes:

  • Free on-site assessment
  • Engineering design
  • Delivery
  • Installation by our professional rigging team
