Aluminium Manhole Shoring Boxes

ALUMINIUM MANHOLE SHORING BOX SPECIFICATIONS

DescriptionDimension
Length2200mm
Height2150mm
Minimum Width Internal1420mm
Maximum Width Internal3350mm
Panel Weight283kg
Panel Thickness63mm
Weight with 4 Strut 0 Struts600kg
Under Strut Clearance650mm
Clearance Between Struts2094mm
Working Load Limit20kPa



Strut SPECIFICATIONS

Strut TypeWeightInternal ClosedInternal OpenExternal ClosedExternal Open
Strut 08kg1430mm1540mm1710mm1810mm
Strut 110.3kg1640mm1890mm1920mm1170mm
Strut 212kg1790mm2200mm2070mm2490mm
Strut 315.8kg2100mm2900mm2370mm3170mm
Strut 419.7kg2790mm3340mm3070mm3620mm



SHORING STRUT MATRIX

MaterialSystemTelescopic Struts141 Fixed Struts168 Fixed StrutsArch Spreaders
Alum.WalersYES
Alum.MAPSYES
Alum.Smooth Walls & ManholeYES
Alum.4.2m - 35 BoxesYES
Alum.4.2m - 60 BoxesYESYES
Alum.5.2m, 6.2m, and 7.2m boxesYESYES
Steel3m and ManholeYES
Steel4m and 6mYESYES

Aluminium Manhole Shoring Boxes

Description 1DC84AF1-36F8-424F-A2E3-2C7AE1790A18

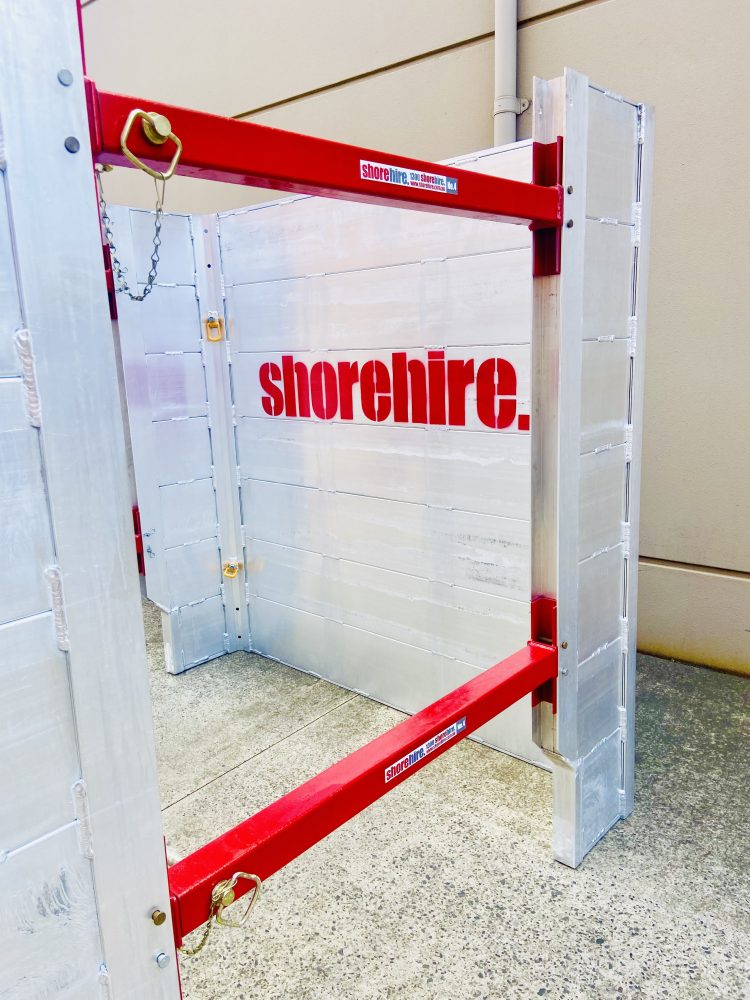

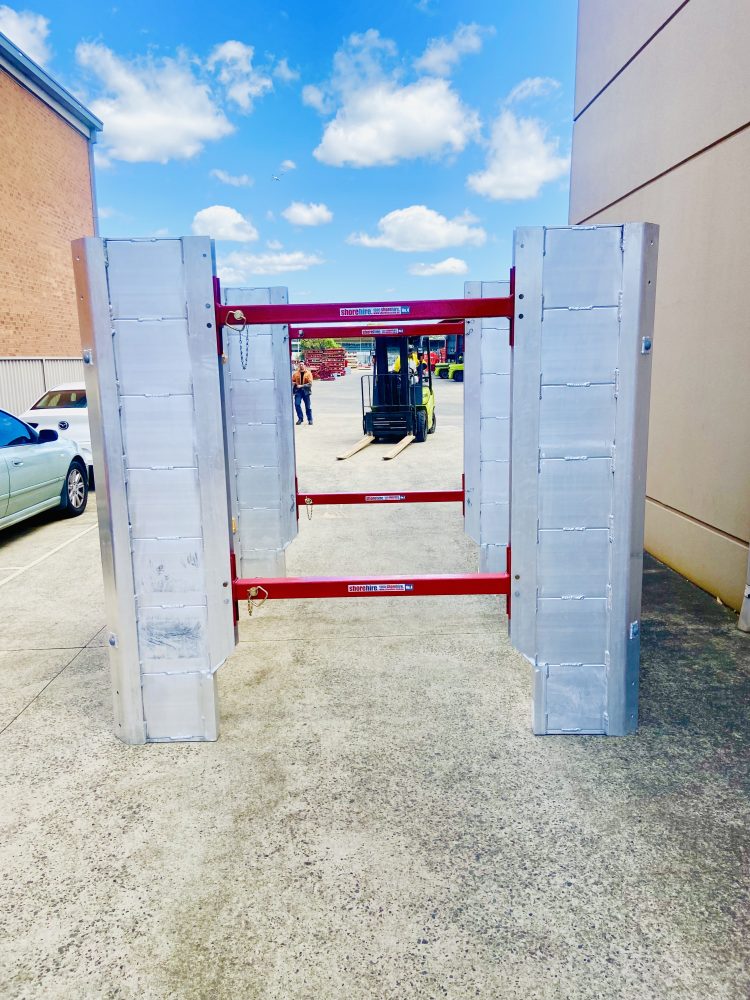

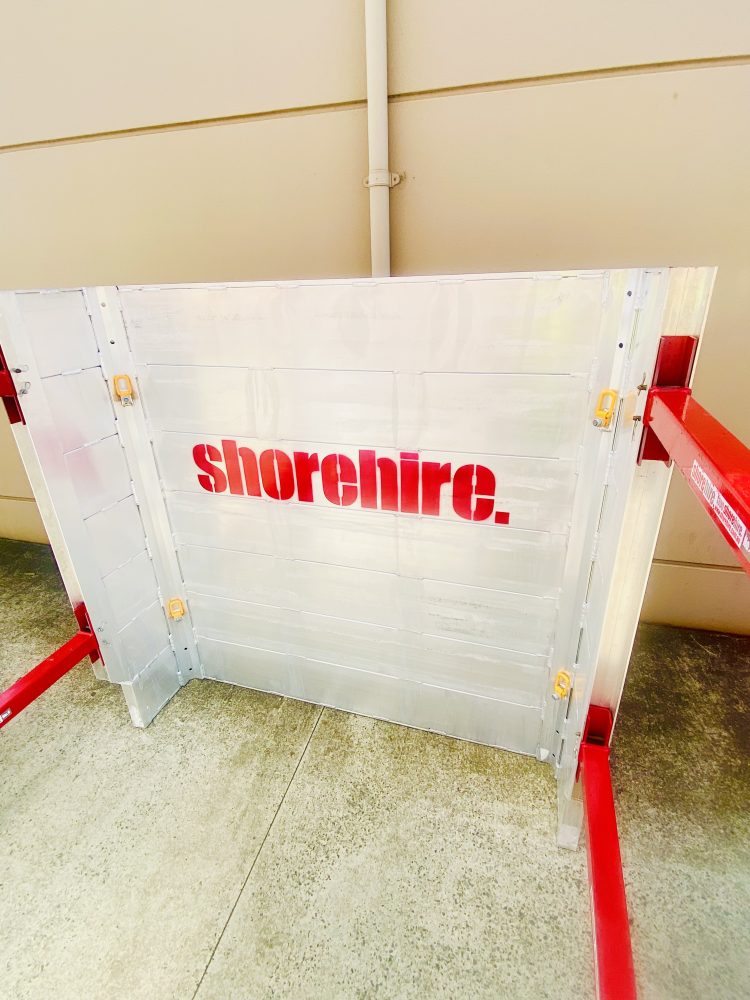

Shore Hire’s new Aluminium Manhole Shoring Box offers all the benefits of using Shore Hire’s other robust yet still lightweight aluminium shoring systems, but with in-built 525mm returns to create a semi-4-sided system that is perfect for use in manholes and standalone pits.

The Aluminium Manhole Shoring Box uses the same struts as our Modular Aluminium Panel System and has a total capacity of 20kPa. At just 283kg per panel, this shoring solution is incredibly lightweight and, in good soil conditions, can save contractors a lot of time and money by being able to use such a lightweight system.

Another value-add to this already great product is Shore Hire’s pre-build service, where if transport conditions permit, Shore Hire will pre-build your shoring box before delivery so that when it arrives at your job site, it’s ready to install straight away to save even more time and money on your project.

Features 1DC84AF1-36F8-424F-A2E3-2C7AE1790A18
  • Lightweight so that you can save on machinery and operational costs
  • Versatile with various strut sizes, so that whatever the job requires, Shore Hire has the option to suit
  • Equipped with a Four Point Lifting System for  easier and safer installs
  • Working pressures of 20kPa to allow for a number of ground conditions
  • High-strength Aluminium construction for the most robust aluminium design possible
  • End plates available, so you can fully enclose the shoring system
  • Easy to assemble and options for Shore Hire to pre-build where possible to save you as much time and money as possible on site
  • Manufactured & Certified AS 4744.1-2000 so you know that every safety checkbox is ticked when you use our products
  • Internal working widths 1.4m – 3.3m to allow for a range of applications
  • Compatible with Edge Safe Protection Range for even more safety options
Suited For 1DC84AF1-36F8-424F-A2E3-2C7AE1790A18

Shore Hire’s Aluminium Manhole Shoring Boxes are an incredibly versatile and safe trench shoring system for general construction and utilities contractors. With the flexibility to use a range of different struts, our shoring boxes are designed to effectively support trenches up to any depth, provided the Working Load Limit (WLL) of the relevant box is not exceeded.

Should you require advice, we always recommend you speak to our technical sales team before any hire.
