Multi Loader 3.0FX
Multi Loader 3.0FX SPECIFICATIONS
| Max Capacity | Max Gradient | Height | Dimensions | Track Length | Track Width | Ground Clearance | Max Speed | Gross Weight |
|---|---|---|---|---|---|---|---|---|
| 3000 kg | 45° | 0.74m | 790mm W x 1770mm L | 1310 mm | 200 mm | 64 mm | 4.2 km/h | 790 kg |
Multi Loader 3.0FX

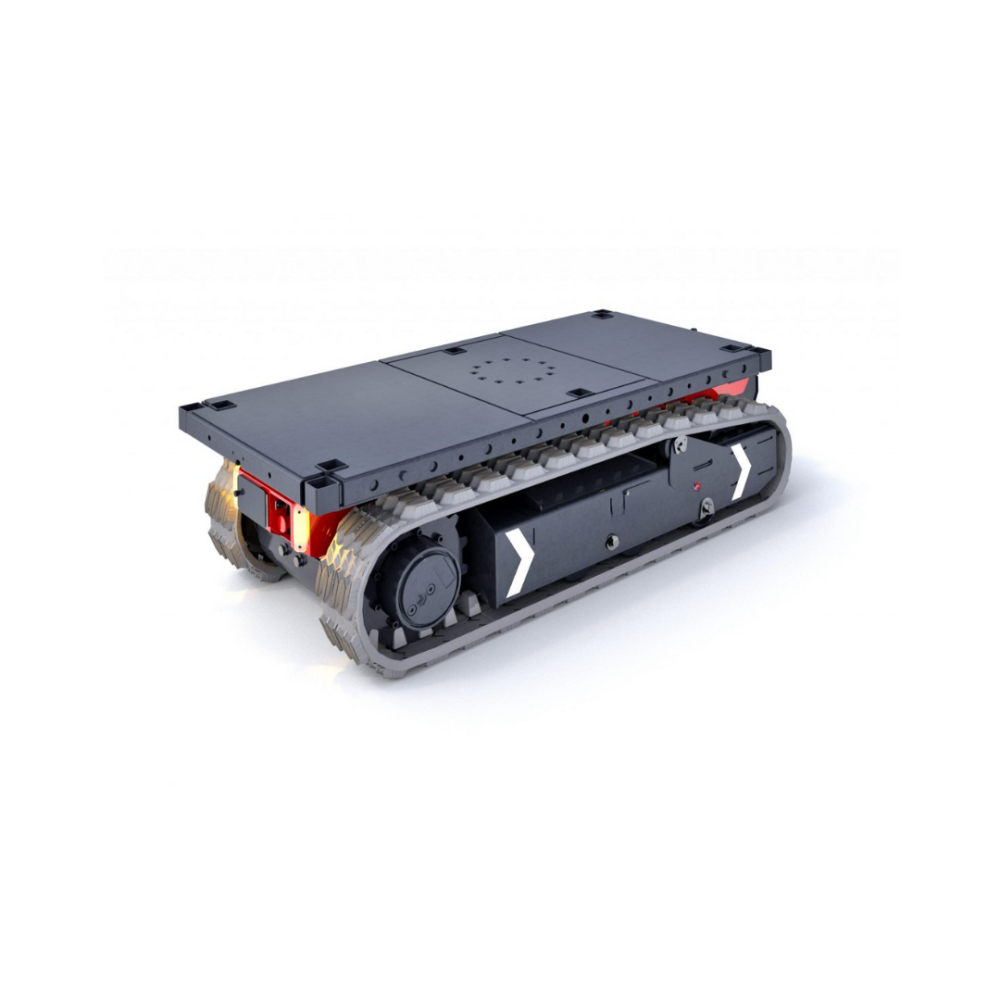

The Multi Loader 3.0FX is a flatbed-tracked carrier used to assist with transporting equipment on-site, especially on projects with tight or limited access. Any hire of this product will also come with a custom-manufactured trailer to assist with the use of the machine.
Although the Multi Loader 3.0FX is lightweight and comes in an extremely compact size, it is incredibly powerful, having a rated capacity of 3,000kg. It has telescopic support beams on each corner to support extra-large loads, and these can be positioned manually, extending the platform either longitudinally or laterally.
The versatile system also features a swivel platform that sits on a freely rotating slewing ring that can be positioned in 16 different places, so the platform can be moved so suit your specific load.
It has a leading-class electric drive with two 5.3kW super-quiet IP67-rated AC electric motors, and has three power management options that give different speeds, including:
- ECO – 1.2km/h
- STD – 2.0km/h
- POW – 4.2km/h
Shore Hire offers Dry & Wet Hire for this product.
- Radio remote control with display & double battery
- Non-marking tracks
- Fully electric drive
- 360° swivel platform with 16 different positions
- Extendable telescopic support beams
- Fully removable battery pack
- Up to 7 hours of operation, with a 4-hour (LTH) or 7-hour (ELC) recharging time
- Front and rear hazard lights
- Automatic tilt alarm with speed reduction
The Multi Loader 3.0FX is suited for a variety of heavy-duty applications both indoors and outdoors, and because of its unique and innovative tracking system, it can operate on all different types of terrain, maintaining maximum manoeuvrability and precision even in the narrowest of spaces, with minimum ground pressure.
