Shore Brace 200 Hydraulic Bracing System


DescriptionLength(mm)Section (mm)Weight (kg)
500mm Extension
500220 x 200138
1000mm Extension
1000220 x 200179
2000mm Extension
2000220 x 200277
4000mm Extension
4000220 x 200426
Mechanical Extension
1900 to 2900240 x 215285
Hydraulic Ram Unit
2000 to 3200240 x 215420

Shore Brace 200 Hydraulic Bracing System

Description 1DC84AF1-36F8-424F-A2E3-2C7AE1790A18

Shore Hire’s Shore Brace 200 Hydraulic Bracing system is a strong, durable and modular system particularly suited to larger excavations. It can be configured to satisfy multi-sided excavations in conjunction with trench sheets for perimeter support and combines hydraulic and mechanical adjustments into each telescopic leg assembly to deliver a robust yet simple solution.

The Shore Brace 200 is the lighter-duty version of our larger Shore Brace 400 but is still an incredibly capable system in its own right.

The Shore Brace 200 System uses water-based hydraulic fluid, which incorporates lubricants to keep seals and O-rings in good working order. The system can be activated either by a double-acting manual hand pump or a motorised double-acting pump to give you as much flexibility on your project as possible. A combination of fixed and mechanical extensions are used in conjunction with the hydraulic ram unit to achieve positive pressure for large four-sided excavations.

Deep projects and sites can be safely shored using additional frames to increase the capacity of the system. The Shore Brace 200 Hydraulic System is designed by our in-house engineering team and is Australian-made so you have peace of mind that the equipment supporting your project is the safest and best gear available.

We also offer pre-assembly where possible and a technical on-site team who will walk you through the install process and provide build drawings so you know the exact step-by-step process required to ensure a quick and painless job well done.

Features 1DC84AF1-36F8-424F-A2E3-2C7AE1790A18
  • Designed by the expert Shore Hire Engineering team and manufactured by us here in Australia so you can be sure that you’re getting the best equipment possible
  • Composite legs featuring simple corner pin for quick and easy install
  • Double-acting hydraulics can be pumped both in and out for an improved operation, simplicity and less gear on site
  • Various sizes can be combined to meet a range of excavation applications
  • Cross brace, corner brace, and raking systems are available to suit any application
  • Hydraulic lock-off valves so you have maximum control and safety
  • Pre-building of gear where possible to save you time and money on your site
  • Technical product experts at your service to step you through the process on site
  • Build drawings available to give you an easy-to-follow setup process
  • Manufactured & Certified AS 4744.1-2000 so you know that every safety checkbox is ticked when you use our products
Suited For 1DC84AF1-36F8-424F-A2E3-2C7AE1790A18

Owing to their flexibility, hydraulic bracing systems can be used for a huge variety of trench shoring applications including large tank installations, interceptor chambers, pump stations, stormwater pits, gross pollutant traps, bore pits, lift wells and more.

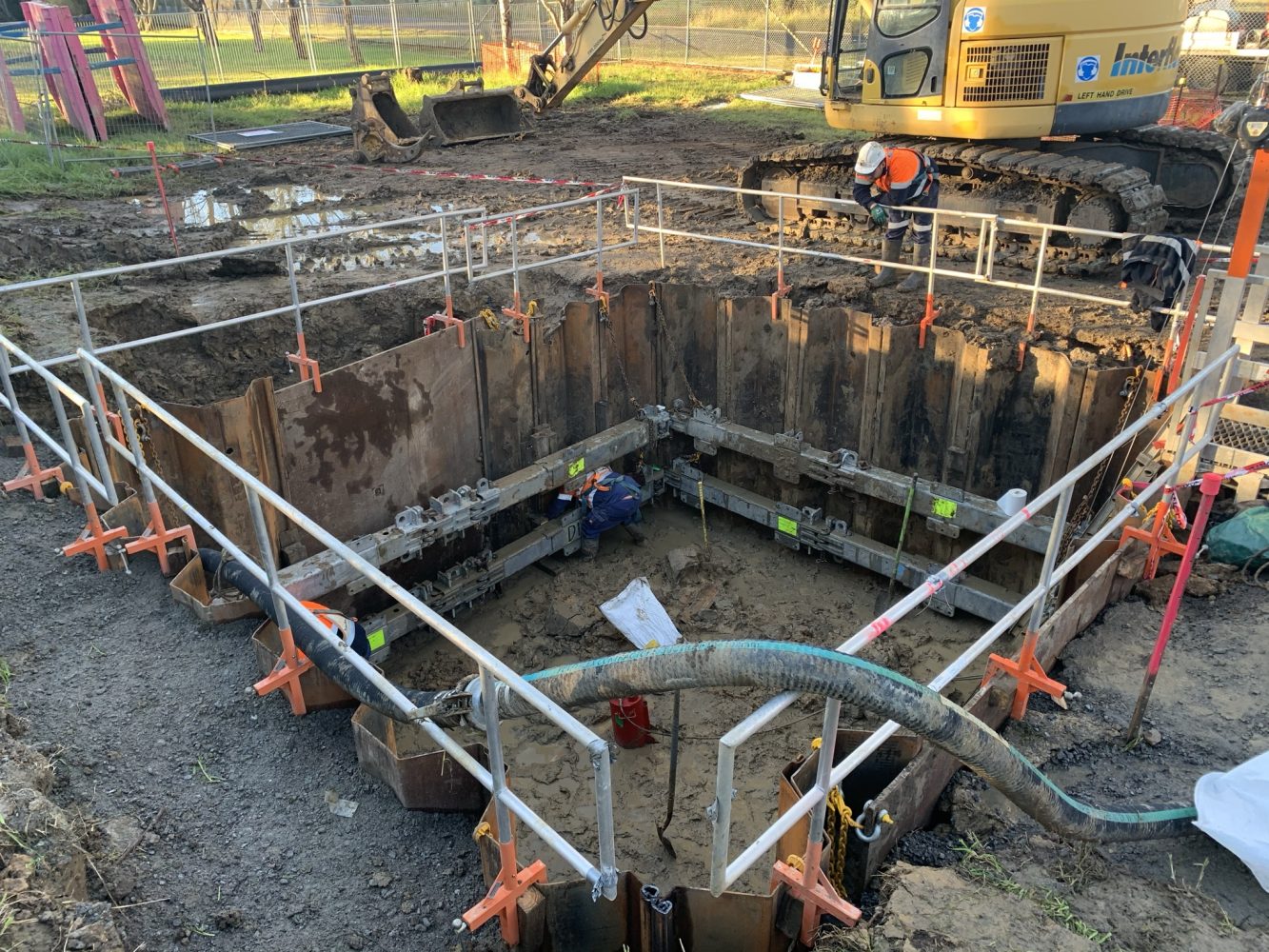

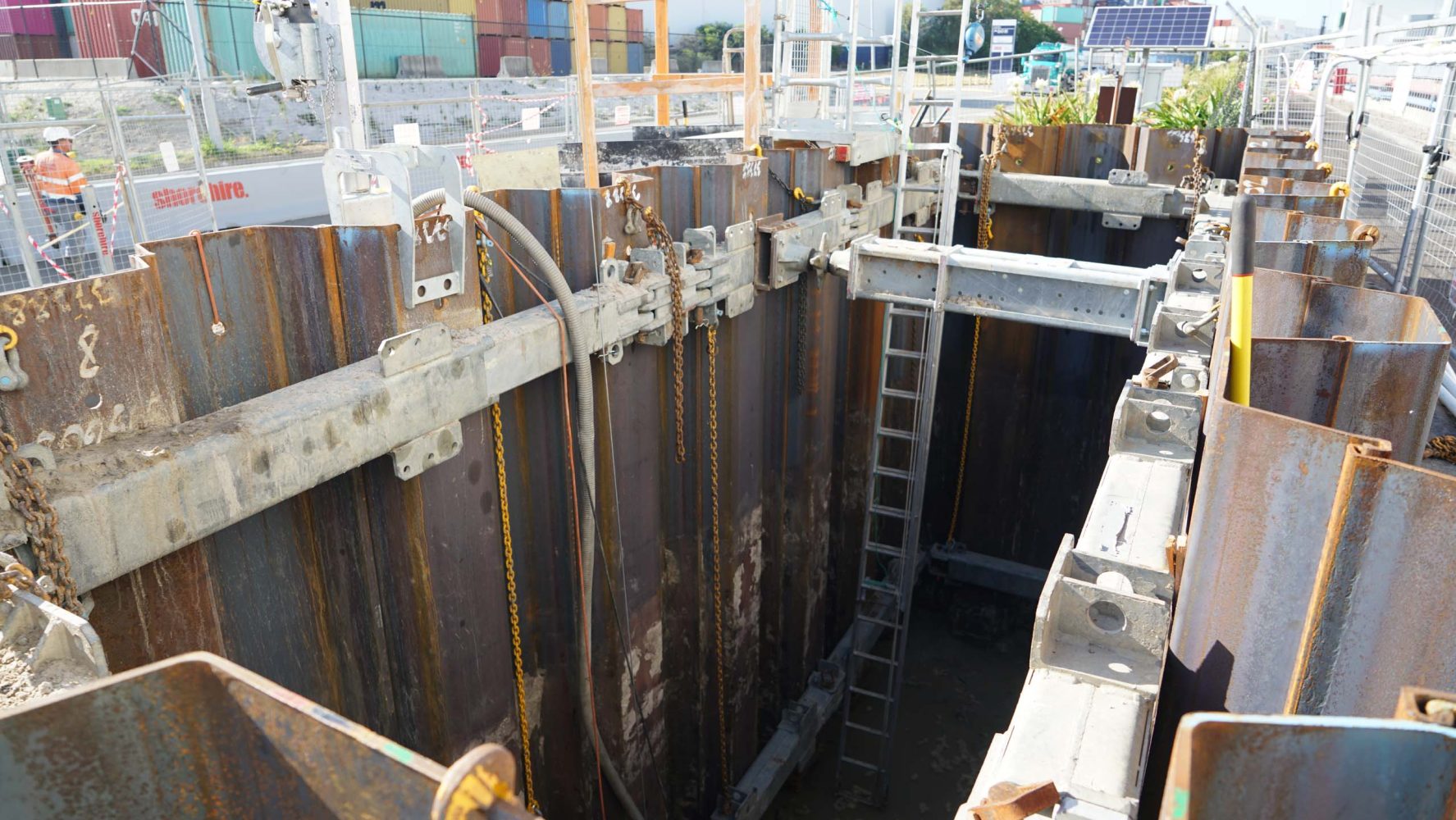

Shore Hire’s Shore Brace 200 Hydraulic Bracing System is designed to be used with steel trench sheets, sheet piles and potential modular cross braces if required to brace various-sized trenches, all of which are products we offer and can assist you with.

Should you require advice, we always recommend you speak to our technical sales team before any hire.
