Shore 100 Modular Prop


section kg
90mm Section7.3kg
180mm Section8.8kg
360mm Section12kg
540mm Section16kg
900mm Section22kg
1800mm Section40kg
2700mm Section55kg
3600mm section73kg

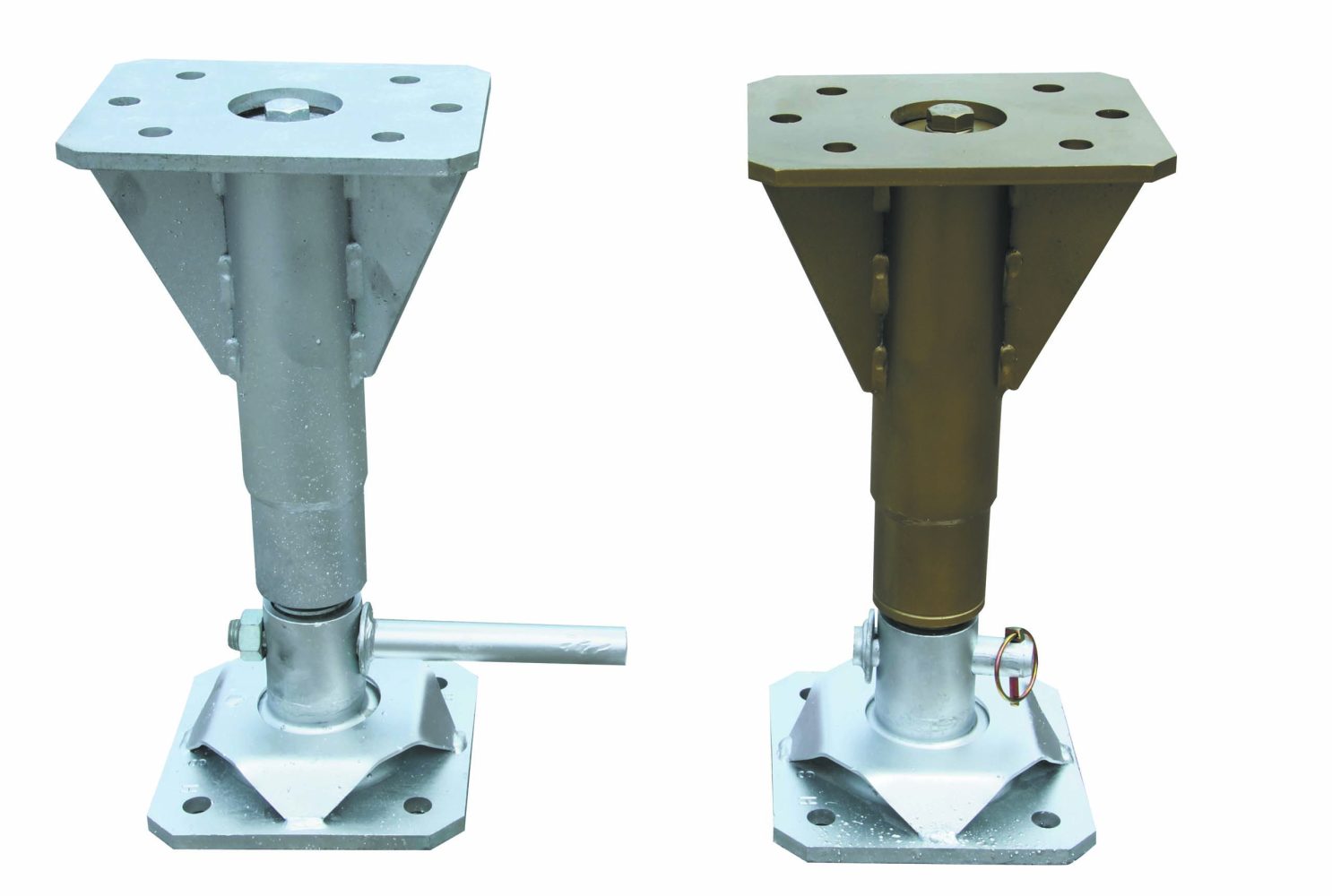

Shore 100 Jack only 390-600mm12.8kg

Shore 100 Modular Prop

Description 1DC84AF1-36F8-424F-A2E3-2C7AE1790A18

The Shore 100 is part of Shore Hire’s modular propping offering and is a versatile propping solution that can be used in conjunction with a number of other Shore Hire products.

The Shore 100 propping system is a highly flexible, high-load-bearing solution for propping in horizontal and vertical applications, meeting the high demands of today’s competitive construction industry. Its modular component design, coupled with adjustable foot jacks means that regardless of the dimensions of your project Shore Hire can design an arrangement to suit.

The Shore 100 temporary propping system provides customers with the ultimate combination of load bearing and flexibility, and it can be used in conjunction with the Shore 400 and 1000 modular propping systems as well as a number of other Shore Hire products.

Shore Hire’s expert team of engineers and on-site riggers can also handle the temporary works design and installation of this equipment to give you full peace of mind on your next project.

Features 1DC84AF1-36F8-424F-A2E3-2C7AE1790A18
  • Flexible and modular system providing high load bearing in a variety of configurations
  • Adjustable base and head units to suit different heights on site
  • A number of man-handleable components for easy transport
  • Fast to assemble onsite and Shore Hire offer pre-assembly where possible to save you time and money on site
  • Range of accessories, including screw jacks, rocking heads, needle beam fixing clamps and transfer fixing plates to suit any project
  • Compatible with a range of other Shore Hire propping products for full flexibility and maximum strength
  • Technical product experts at your service to step you through the process on-site for full peace of mind
  • Build drawings available to give you an easy-to-follow setup process
Suited For 1DC84AF1-36F8-424F-A2E3-2C7AE1790A18

Shore Hire’s modular propping systems are a customer favourite due to their incredible versatility and while they can be used in a huge number of applications, some of the most common are:

  • Falsework
  • Back Propping
  • Facade Retention
  • Support Towers
  • Needling and Propping
  • Raking Props
  • Underpinning
  • Demolition support
  • and much more
Technical Specs 1DC84AF1-36F8-424F-A2E3-2C7AE1790A18
Technical Data Download AutoCAD Block

Download Tech Data Form
