Trench Jacks

Availability: Same Day

  • description
  • Features
  • suited for
  • inclusions

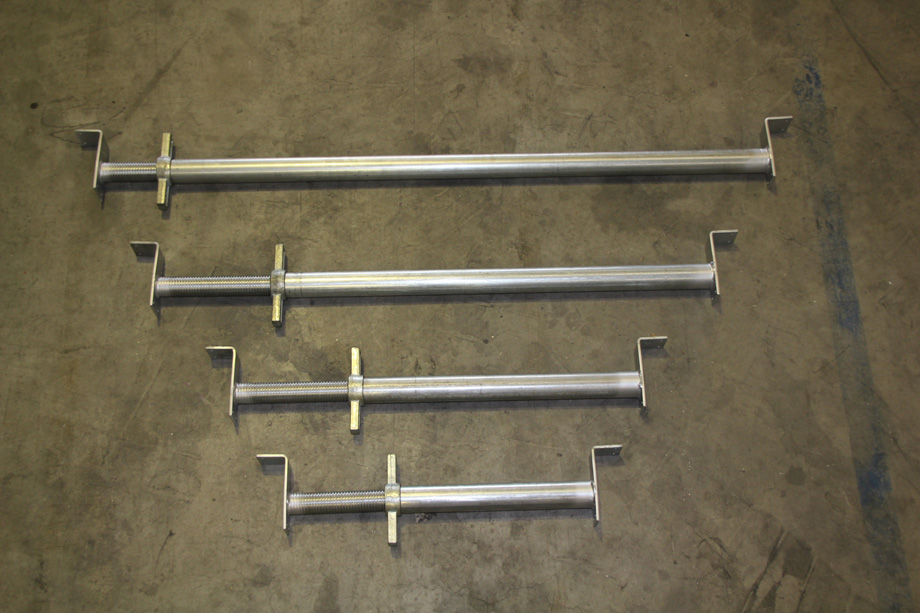

Trench jacks are used to support timber shoring and Trench sheeting. The bracket heads are designed to sit on top of the timber walers that run horizontally along the trench.

Shore Hire’s trench jacks have been used in projects including at Cronulla where cross services posed difficulties with other shoring methods.

TRENCH JACK SPECIFICATIONS

Size Range (min) Range (min) WLL at max. ext.
H0 340mm 490mm 35KN
H1 450mm 780mm 31KN
H2 680mm 1080mm 15KN
H3 1060mm 1530mm 12KN
H4 1520mm 1980mm 10KN

Can be used with Timber shoring & Trench sheets.

  • Simple system for use in conjunction with timber shoring where space is limited or where cross services pose problems
  • Trench jacks at sizes H0 through to H4 are available
  • Used as cross supports

Trench jacks are used during trench shoring, specifically timber shoring where access is limited or cross services present problems with other shoring systems.

The Trench Jack can be delivered standalone or as as part of our comprehensive full-service solution. This includes:

  • Free on-site assessment
  • Engineering design
  • Delivery

For safety products available for use with the Trench Jack, click here
