Modular Aluminium Panel Shields (MAPS)

MODULAR MAP SYSTEM SPECIFICATIONS

DescriptionHeightLengthWeight
Map Panels 900610mm735mm16kg
Map Panels 1200610mm1040mm22kg
Map Panels 1800610mm1610mm34kg
Map Panels 2400610mm2220mm46kg
Map Panels 3000610mm2820mm58kg
Map End Post E02610mm6.5kg
Map End Post E041220mm13kg
Map End Post E061830mm19kg
Map End Post E082440mm25kg
Map End Post E103000mm-32kg



STRUT SPECIFICATIONS

Strut TypeWeightInternal ClosedInternal OpenExternal ClosedExternal Open
Strut 08kg390mm500mm540mm640mm
Strut 110.3kg600mm850mm750mm1020mm
Strut 212kg750mm1160mm900mm1320mm
Strut 315.8kg1060mm1860mm1200mm2000mm
Strut 4 19.1kg1750mm2300mm1900mm2450mm



SHORING STRUT MATRIX

MaterialSystemTelescopic Struts141 Fixed Struts168 Fixed StrutsArch Spreaders
Alum.WalersYES
Alum.MAPSYES
Alum.Smooth Walls & ManholeYES
Alum.4.2m - 35 BoxesYES
Alum.4.2m - 60 BoxesYESYES
Alum.5.2m, 6.2m, and 7.2m boxesYESYES
Steel3m and ManholeYES
Steel4m and 6mYESYES

Modular Aluminium Panel Shields (MAPS)

Description 1DC84AF1-36F8-424F-A2E3-2C7AE1790A18

Shore Hire’s Modular Aluminium Panel Shields (MAPS system) is an ultra light-weight, high strength and convenient shoring system for light utility and maintenance applications.

Customers choose the modular aluminium panel system for its safety and effectiveness along with its ease of handling and installation, with modular panels, end-members and adjustable spreaders being light enough for transport by a utility vehicle, it really is the perfect system fit for any light weight application. The system is also able to be quickly configured to a range of two, three or four-sided setups depending on your project needs.

Foam-filled, double-walled aluminium panels provide excellent stability and are available in a large range of sizes. Rapid assembly and disassembly of panels and spreaders is possible via quick pin-and-keeper connections. With the MAPS system contractors can quickly configure to exact size requirements effortlessly saving you a fortune in labour costs and headaches.

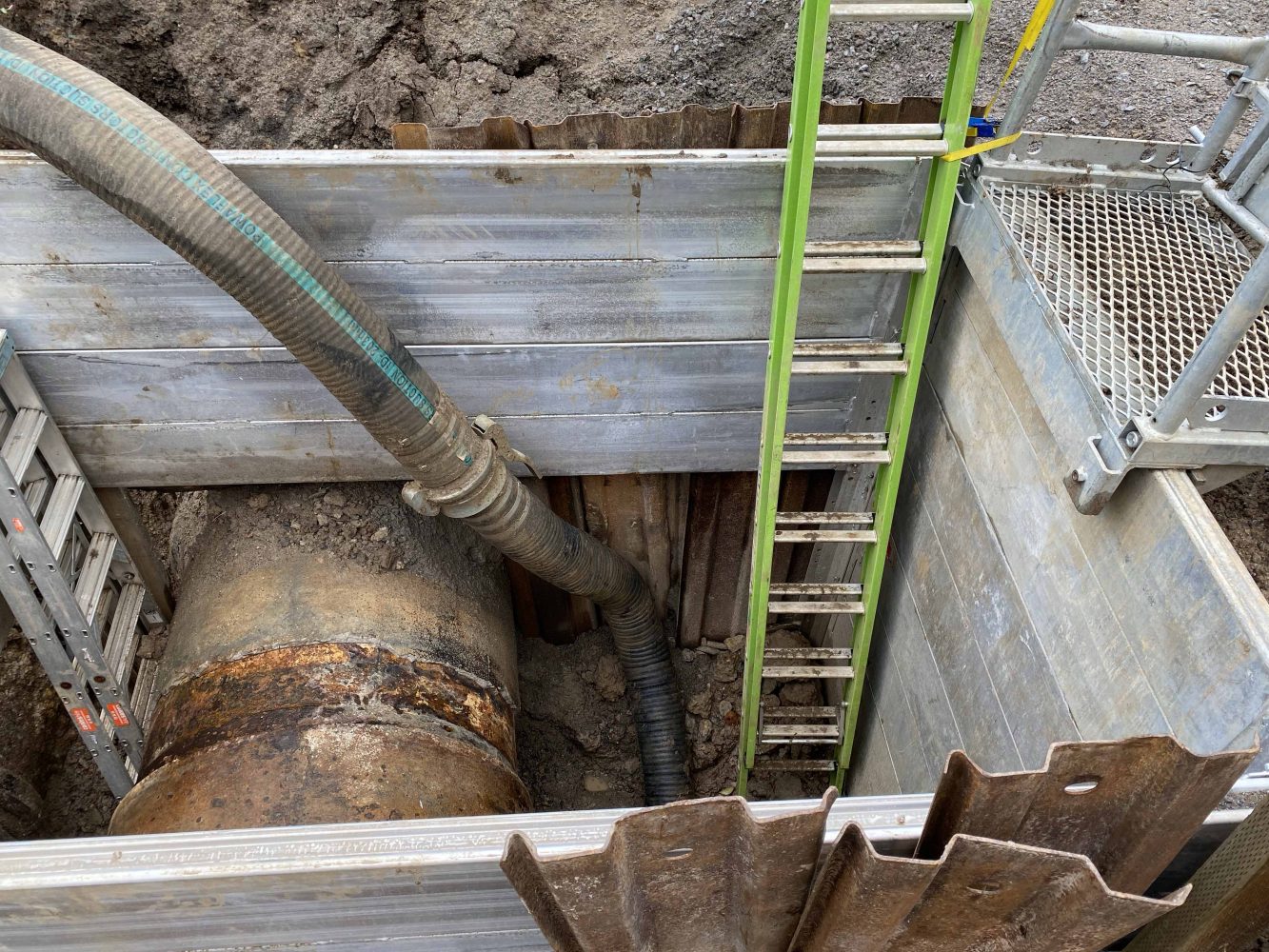

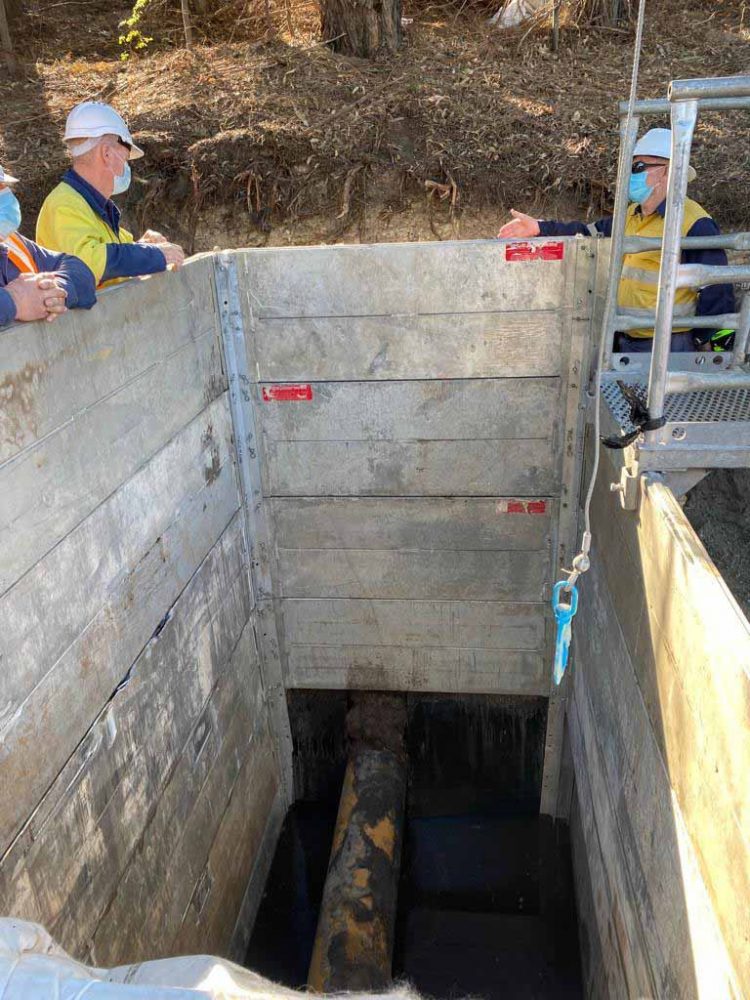

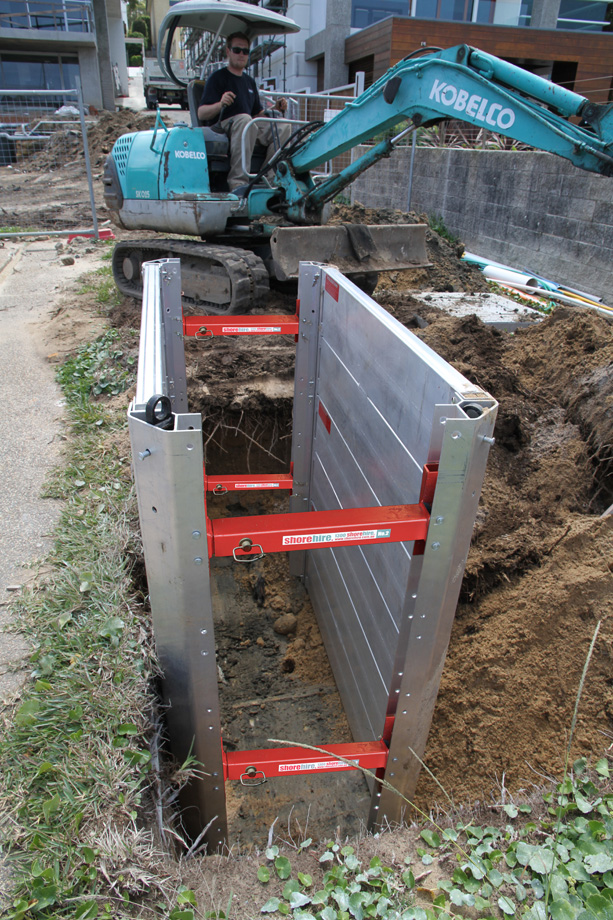

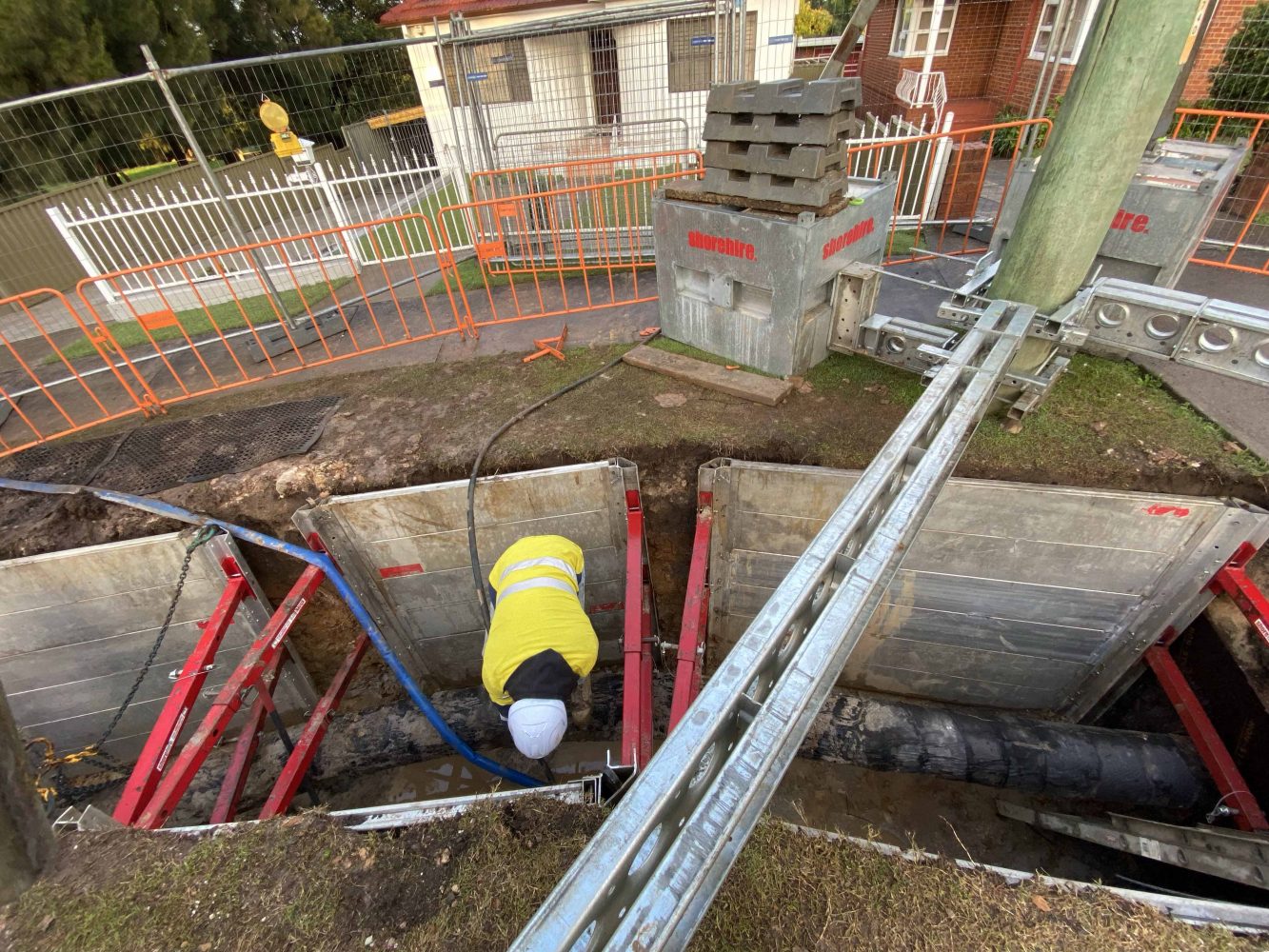

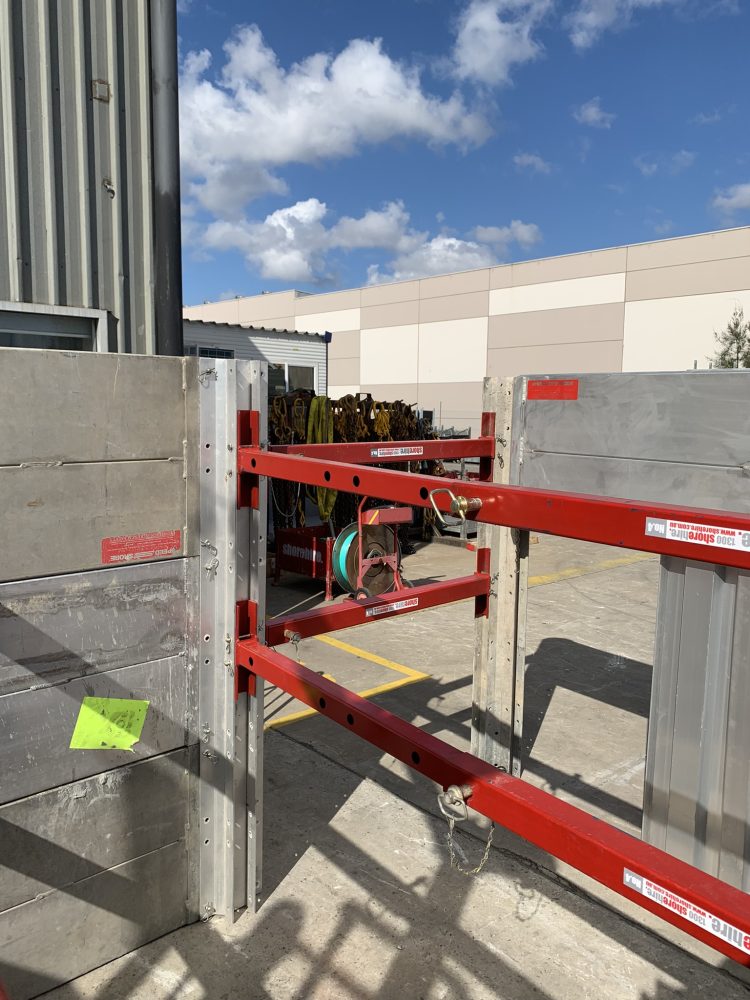

MAPS boxes can also be extended using Shore Hire’s new T-Post connection bracket.

Shore Hire also offer pre-assembly where transport restrictions permit, meaning the box arrives exactly to your specifications before it gets to site for easy install and massive savings for your project.

Features 1DC84AF1-36F8-424F-A2E3-2C7AE1790A18
  • Fully modular system which allows panels to be removed at various heights for a fully custom setup enabling pipe and utilities to run through at various angles
  • Versatile with various sizes, so that whatever the job requires, Shore Hire has the option to suit
  • Ultra light-weight so you can use a smaller, less expensive machine
  • Incredible ease of handling and installation for such a robust and custom system
  • Light enough for transport by a utility vehicle to save you big on transport costs
  • Foam-filled, double-walled aluminium panels to reduce waterlogging and for quick and painless removal from the trench once done
  • Hand assembly possible in minutes to save you time and manpower on your next project
  •  Adjustable struts for variable lengths in the pit, which means you’re not swapping struts in and out, and if the trench isn’t the exact same width for the whole run, you don’t have to switch shoring, saving you big in timelines and expenses
  • A range of technical support is available, so you know that what you’re putting in the ground is the absolute best and safest product possible
  • Easy to assemble and options for Shore Hire to pre-build where possible to save you as much time and money as possible on site
  • Manufactured & Certified AS 4744.1-2000 so you know that every safety checkbox is ticked when you use our products
  • Compatible with Edge Safe Protection Range for even more safety options
  • Optimum operator visibility for maximum on-site safety
  • End plates are available, so you can enclose the shoring system
  • Equipped with a Four Point Lifting System for  easier and safer installs
  • High-strength aluminium construction for the most robust and safest shoring system possible

Suited For 1DC84AF1-36F8-424F-A2E3-2C7AE1790A18

Shore Hire’s Modular Aluminium Panel Shields (MAPS) are an amazing option for general construction and utilities contractors, with the flexibility to use a range of different sizes and lengths, the superior strength: weight ratio of our shoring boxes aids in effectively supporting trenches up to any depth, provided the working load limit of the relevant box is not exceeded.

Should you require advice, we always recommend you speak to our technical sales team before any hire.
