Trench Sheets

TRENCH SHEETING SPECIFICATIONS

SpecificationSHS-330SHS-400SHS-600
Steel Thickness3.5mm6mm8mm
Weight Per Linear Metre11.3kg22.1kg50kg
Weight Per Square Metre34.4kg55.3kg83.3kg
Section Modulus/Sheet16cm341.5cm3
Section Modulus/Metre45.7cm398.8cm3242cm3
Bending Moment/Linear Metre7.3kNm19kNm39.9kNm
Moment of Inertia/Sheet29.7cm4105cm4
Moment of Inertia/Metre84.8cm4250cm4947cm4
Standard Lengths3, 4 & 5m3, 4 & 5.8m5.8m
Sheet Width350mm420mm620mm
Coverage330mm400mm600mm
Depth of Section35mm50mm80mm

Trench Sheets

Description 1DC84AF1-36F8-424F-A2E3-2C7AE1790A18

Shore Hire stock a range of Trench Sheets used for temporary shoring applications.

Shore Hire’s Trench Sheets are a highly useful component in a variety of shoring and excavation systems. Our sheets have been designed for quick and easy installation and extraction, and we can supply profiles and lengths to suit any application, including engineered solutions with aluminium walers or similar.

Our sheets are fully compatible with the full range of Shore Hire shoring systems, such as our trench boxes, aluminium walers and more.

A full range of handling and driving accessories are available, including drive caps, quick-release shackles and trench sheet extractors for full peace of mind and a quick and easy install process, saving you time and money on your next project.

Features 1DC84AF1-36F8-424F-A2E3-2C7AE1790A18
  • Various sizes can be combined to meet a range of excavation applications
  • A full range of handling and driving accessories are available for the quickest and easiest install and removal process possible for sheet piles
  • Works in with our range of edge protection accessories to give you full peace of mind around safety
  • Engineered sheet and bracing solutions are available on request for even the most unique projects
  • Multiple profiles and lengths available to suit any project
  • Technical product experts at your service to step you through the process on site
  • Rolled from high-yield steel for greater strength and durability, so you know the gear you’re putting in the ground is going to do the job
  • Half clutch at one end for easy sheet guidance and quick installation and removal
  • Manufactured & Certified AS 4744.1-2000 so you know that every safety checkbox is ticked when you use our products
Suited For 1DC84AF1-36F8-424F-A2E3-2C7AE1790A18

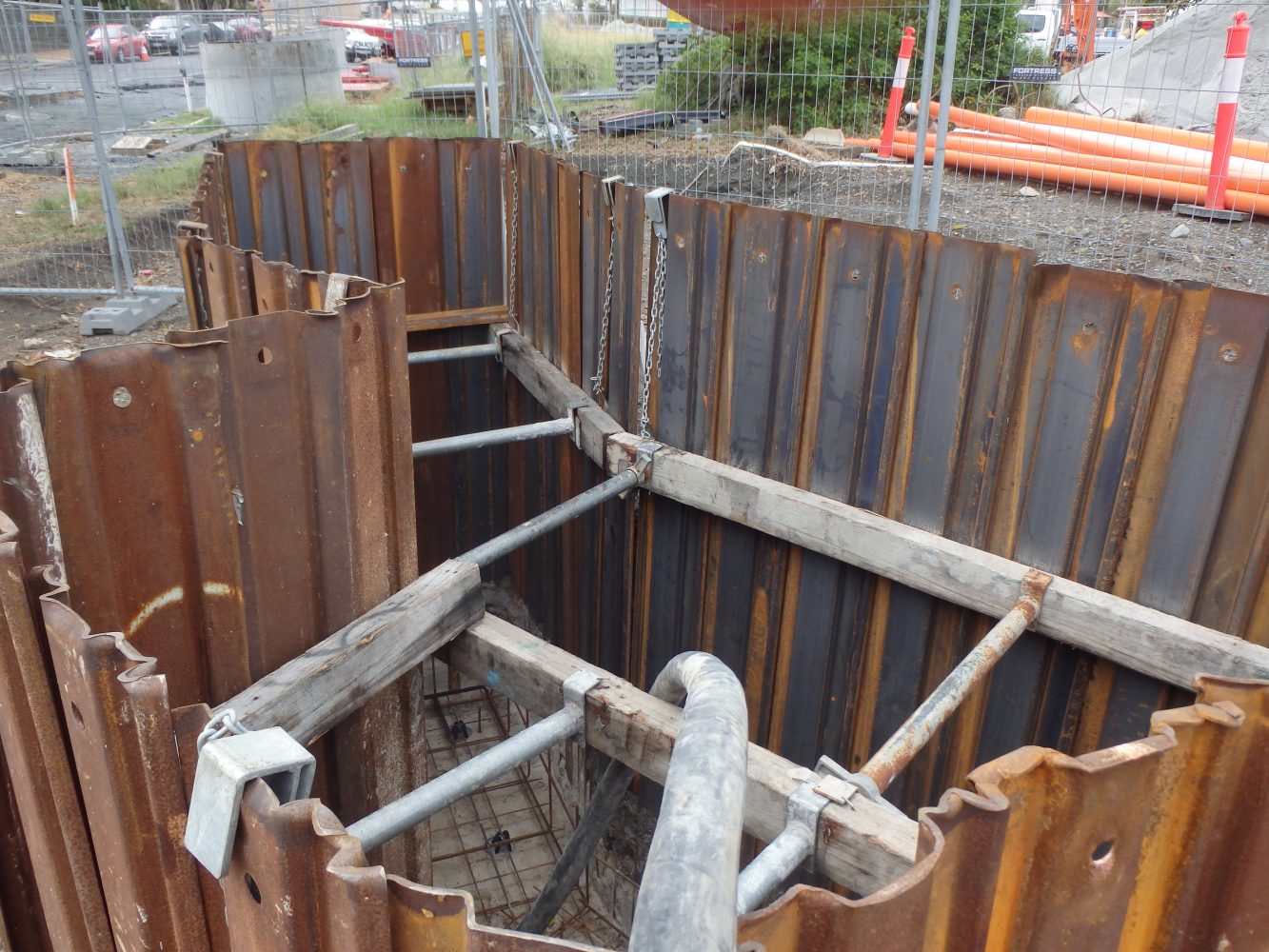

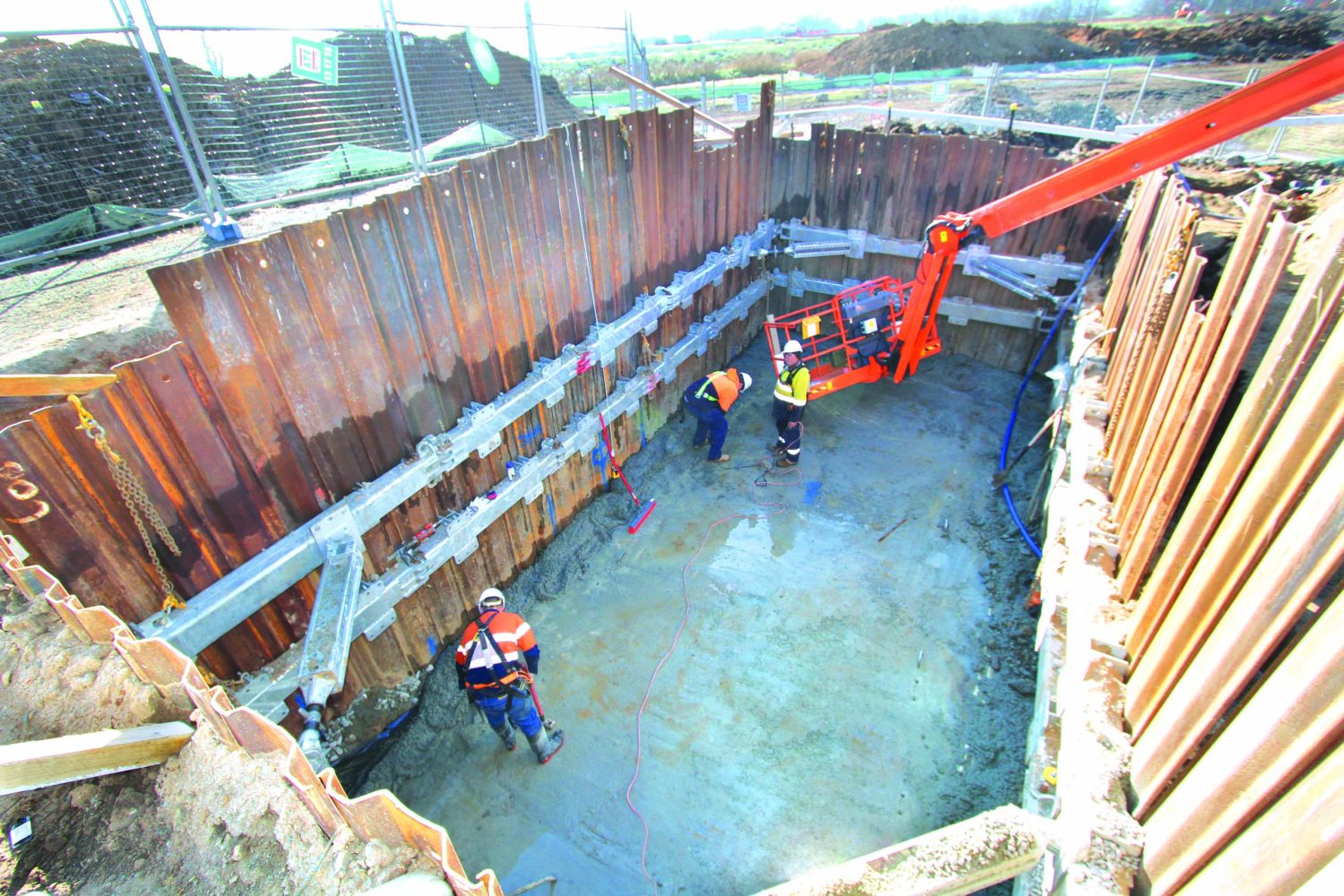

Trench sheets are used to make continuous overlapping walls during excavation and are used in conjunction with a variety of trench shoring systems including timber walers, aluminium walers and hydraulic bracing systems.

Trench sheets are also used as end shoring in our range of shoring boxes.

The most typical use cases are for trench shoring applications, including large tank installations, interceptor chambers, pump stations, stormwater pits, gross pollutant traps, bore pits, lift wells and more.

Should you require advice, we always recommend you speak to our technical sales team before any hire.
