Large Aluminium Shoring Boxes

4.2M – 35 TRENCH BOX SPECIFICATIONS

SpecificationBaseTop
Length4250mm4250mm
Height2440mm1860mm
Minimum Width Internal860mm860mm
Maximum Width Internal4260mm4260mm
Clearance Between Struts3800mm3800mm
Clearance Beneath Bottom Strut1450mm860mm
Weight with 1000mm Struts1696kg1476kg
Panel Weight805kg695kg
Panel Thickness100mm100mm
Working Load Limit35kPa35kPa
Strut Weight Per Metre21.6kg21.6kg



4.2m – 60 Trench Box Specifications

SpecificationKnife EdgeFlat Bottom
Length4200mm4200mm
Height2440mm1860mm
Minimum Width Internal860mm860mm
Maximum Width Internal4260mm4260mm
Clearance Between Struts3800mm3800mm
Clearance Beneath Bottom Strut1450mm860mm
Weight with 1000mm Struts2300kg1880kg
Panel Weight1070kg850kg
Panel Thickness150mm150mm
Working Load Limit60kPa60kPa
Strut Weight Per Metre42.5kg42.5kg



Shore 5.2m – 52 Aluminium Trench Box

SpecificationKnife EdgeFlat Bottom
Length5250mm5250mm
Height2440mm1860mm
Minimum Width Internal860mm860mm
Maximum Width Internal4260mm4260mm
Clearance Between Struts4800mm4800mm
Clearance Beneath Bottom Strut1450mm860mm
Weight with 1000mm Struts2810kg2570kg
Panel Weight1325kg1250kg
Panel Thickness150mm150mm
Working Load Limit52KPa52KPa
Strut Weight Per Metre42.5kg/m42.5kg/m

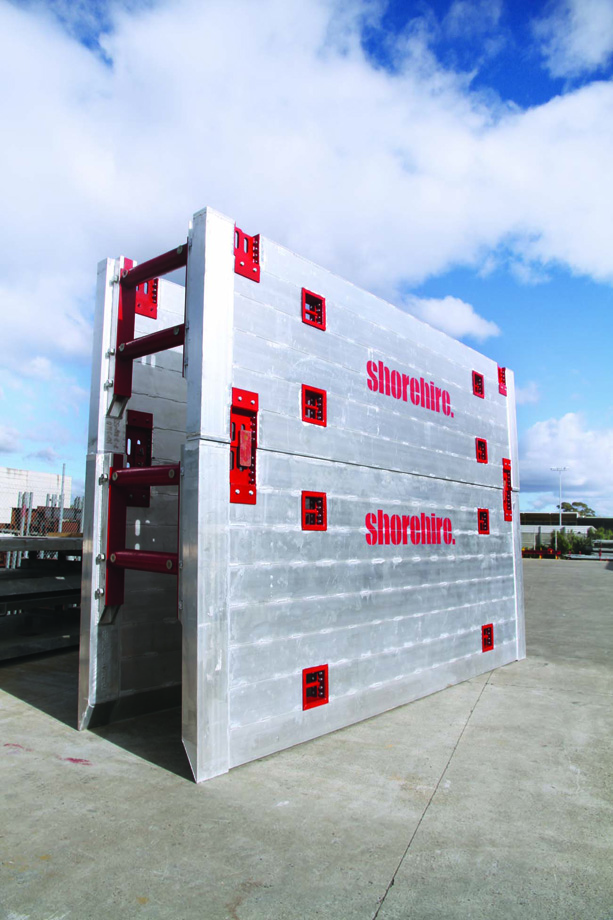

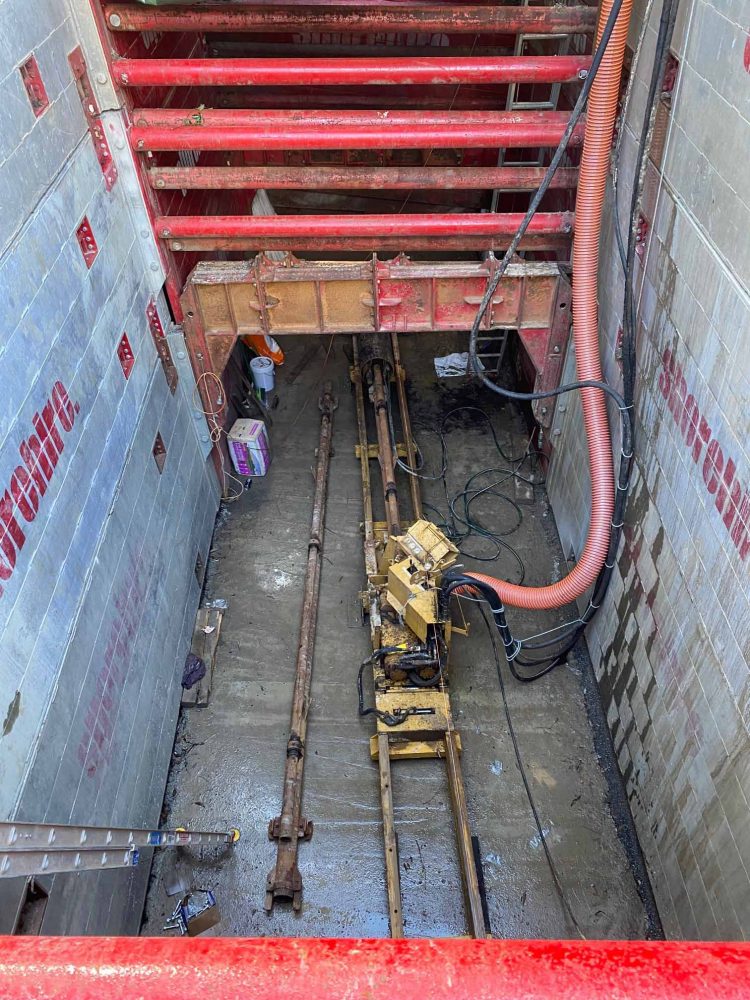

6.2m – 40 Trench Box Specifications

SpecificationKnife EdgeFlat Bottom
Length6200mm6200mm
Height2440mm1860mm
Minimum Width Internal860mm860mm
Maximum Width Internal4260mm4260mm
Clearance Between Struts5800mm5800mm
Clearance Beneath Bottom Strut1450mm860mm
Weight with 1000mm Struts3300kg2690kg
Panel Weight1570kg1260kg
Panel Thickness150mm150mm
Working Load Limit40kPa40kPa
Strut Weight Per Metre42.5kg42.5kg

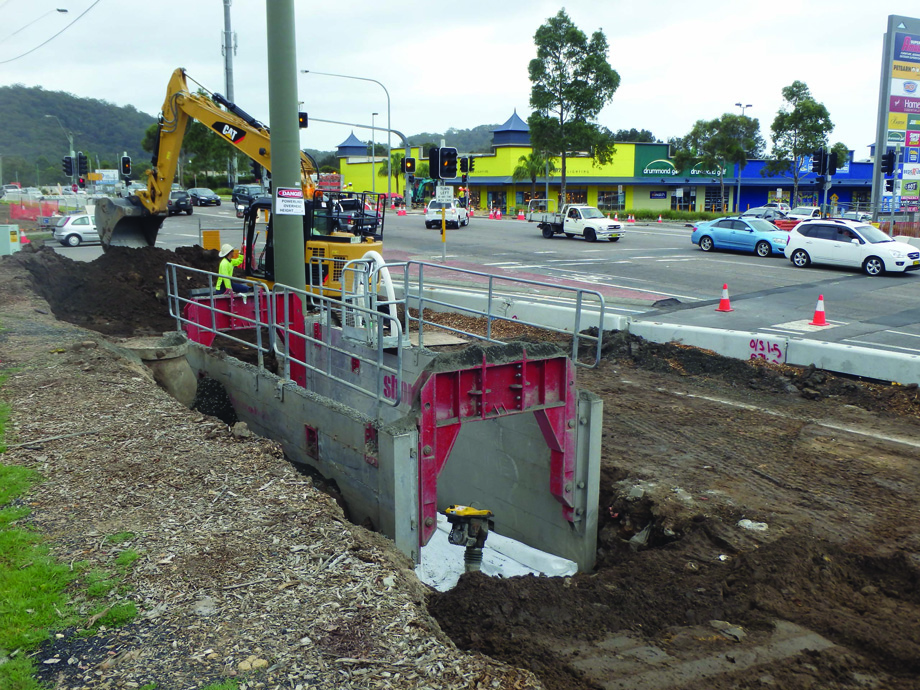

7.2m – 36 Trench Box Specifications

SpecificationKnife EdgeFlat Bottom
Length7200mm7200mm
Height2440mm1860mm
Minimum Width Internal860mm860mm
Maximum Width Internal4260mm4260mm
Clearance Between Struts6800mm6800mm
Clearance Beneath Bottom Strut1450mm860mm
Weight with 1000mm Struts3800kg3000kg
Panel Weight1800kg1400kg
Panel Thickness150mm150mm
Working Load Limit36kPa36kPa
Strut Weight Per Metre42.5kg42.5kg



STRUT DIMENSIONS

Large Aluminium Shoring Boxes

Description 1DC84AF1-36F8-424F-A2E3-2C7AE1790A18

Shore Hire’s range of Heavy-duty and Larger Aluminium Trench Shoring Boxes are ideal for the majority of light to medium-weight shoring applications. Coming in 4.2m, 6.2m and 7.2m variations with a huge range of struts to choose from, our Aluminium Shoring Boxes are a customer favourite for a variety of reasons but namely, their incredible strength: weight ratio and robust design means less damaged equipment and lower machinery costs for your next project.

Coming with both lower and upper sections, Shore Hire’s Aluminium Shoring Boxes allow for vast and varying depths, and can be connected together using panel connectors to build boxes as tall as required. The knife-edge panels allow for dig and push installations in sandy conditions, and the foam-filled sections resist water infiltration inside panels. Shore Hire’s Aluminium Shoring Boxes also come with reinforced steel corners for less damaged equipment during installation which means fewer costs and headaches for contractors on-site when using this gear.

Another value-add to this already great product is Shore Hire’s pre-build service, where if transport conditions permit, Shore Hire will pre-build your shoring box before delivery so that when it arrives at your job site, it’s ready to install straight away to save even more time and money on your project.

Features 1DC84AF1-36F8-424F-A2E3-2C7AE1790A18
  • A range of technical support is available, so you know that what you’re putting in the ground is the absolute best and safest product possible
  • Lightweight, so you can save on machinery and operational costs
  • Versatile with various sizes, so that whatever the job requires, Shore Hire has the option to suit
  • Foam filled to reduce waterlogging so that when it comes time to pull it out of the ground, it’s not going to be twice as heavy
  • Knife-edge for far easier installs and fewer headaches for the man in the machine
  • Equipped with a Four Point Lifting System for  easier and safer installs
  • Working pressures of 35kPa, 40kPa and 60kPa to allow for as many ground conditions as possible
  • High-strength aluminium construction for the most robust and safest shoring system possible
  • Securely pinned connectors for upper units so you can build the box as high or as low as you need
  • Optimum operator visibility for maximum on-site safety
  • End plates available, so you can enclose the shoring system
  • Easy to assemble and options for Shore Hire to pre-build where possible to save you as much time and money as possible on site
  • Manufactured & Certified AS 4744.1-2000 so you know that every safety checkbox is ticked when you use our products
  • Internal working widths of 0.86m to 4.2m, and even more with engineering approval, to allow for any application
  • Compatible with Edge Safe Protection Range for even more safety options
Suited For 1DC84AF1-36F8-424F-A2E3-2C7AE1790A18

Shore Hire’s Aluminium Shoring Boxes are an incredibly versatile and safe trench shoring system for general construction and utilities contractors, with the flexibility to use a range of different sizes and lengths.

The superior strength: weight ratio of our shoring boxes aids in effectively supporting trenches up to any depth, provided the Working Load Limit (WLL) of the relevant box is not exceeded.

Should you require advice, we always recommend you speak to our technical sales team before any hire.
