MAPS Sheeting Guide


1.2m Long Sheeting Guide48kg
1.8m Long Sheeting Guide73kg
2.4m Long Sheeting Guide97kg
3m Long Sheeting Guide122kg
1.2m Aluminium Sheet10kg
1.8m Aluminium Sheet12kg
2.4m Aluminium Sheet15kg
3m Aluminium Sheet19kg



Strut TypeWeightInternal ClosedInternal OpenExternal ClosedExternal Open
Strut 08kg390mm500mm540mm640mm
Strut 110.3kg600mm850mm750mm1020mm
Strut 212kg750mm1160mm900mm1320mm
Strut 315.8kg1060mm1860mm1200mm2000mm
Strut 4 19.1kg1750mm2300mm1900mm2450mm

MAPS Sheeting Guide

Description 1DC84AF1-36F8-424F-A2E3-2C7AE1790A18

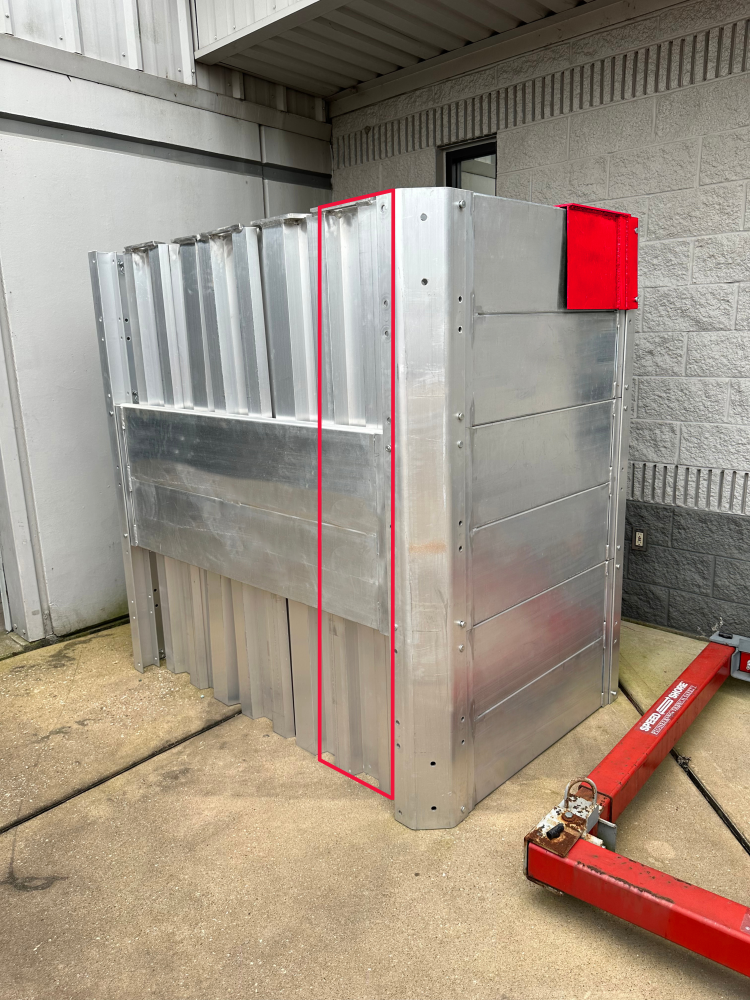

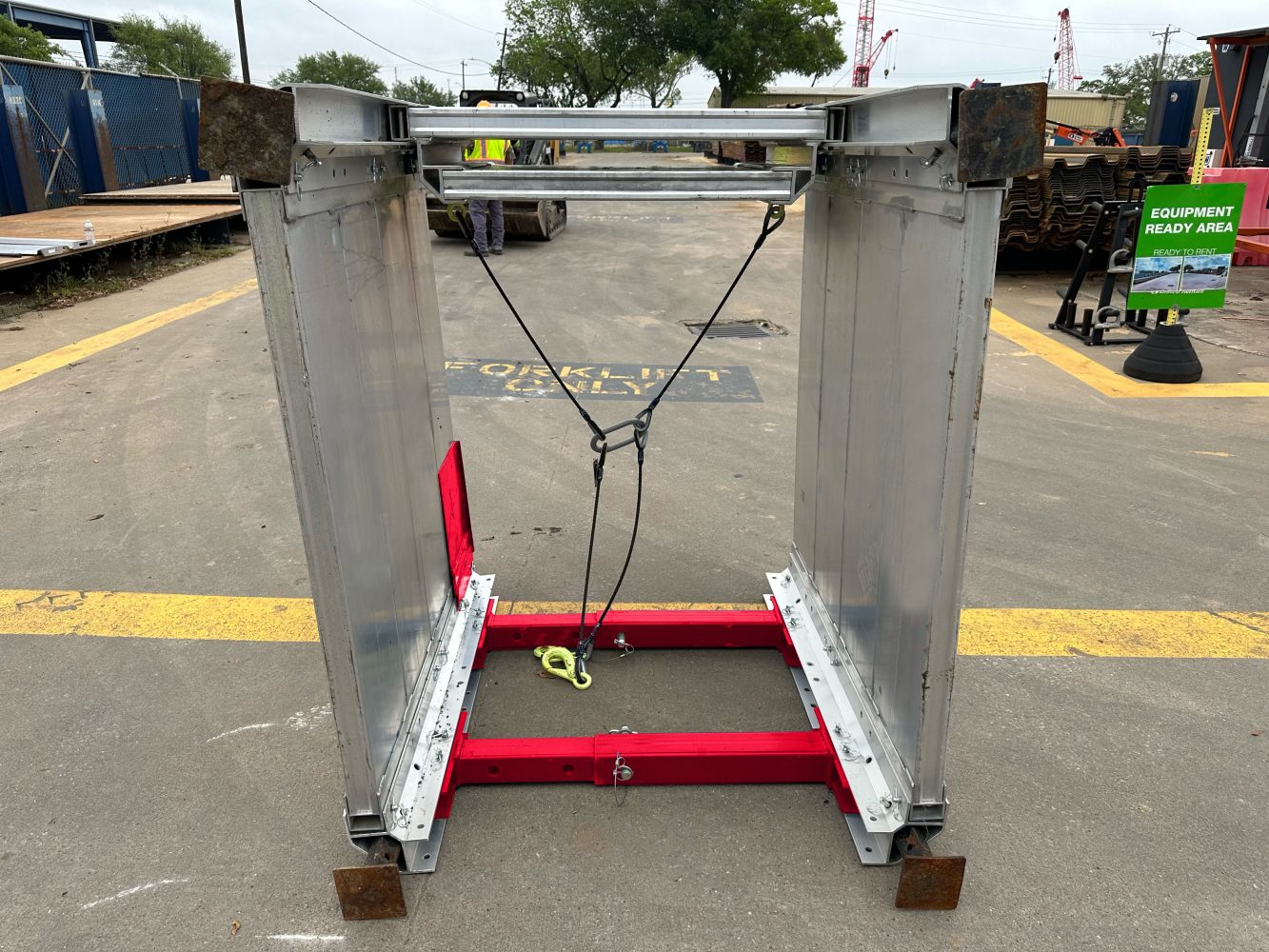

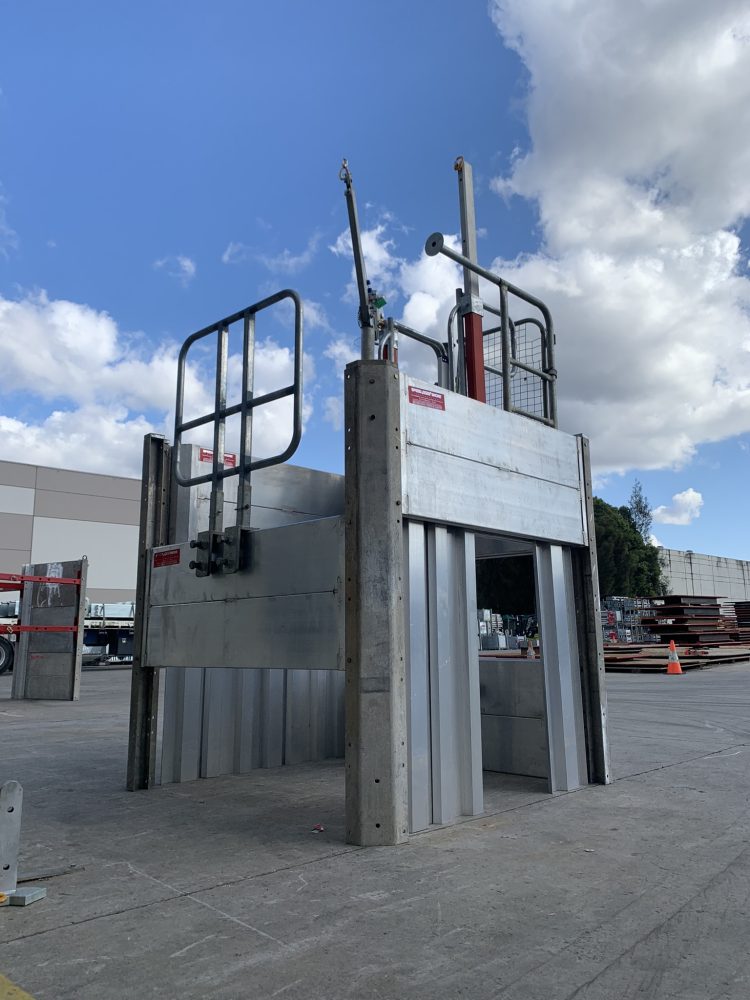

The Shore Hire MAPS Sheeting Guide is a fantastic tool made of lightweight aluminium that can be easily used in place of a MAPS panel. It’s designed to help you place small sheets smoothly, even when there are obstacles like crossing services in the way. You can use this guide frame for single or multiple panel walls, depending on your application.

Installing the Sheeting Guide is simple and quick! The sheets and guides are super lightweight, and you have the flexibility to skip or interlock the sheets as long as there isn’t reactive soil in the exposed openings.

With the Shore Hire MAPS Sheeting Guide, you have the freedom to choose from various lengths that perfectly match the available modular panels. It’s a reliable and versatile solution that simplifies your construction projects and gives you much more flexibility than a traditional shoring system.

Features 1DC84AF1-36F8-424F-A2E3-2C7AE1790A18
  • Lightweight yet robust aluminium construction
  • Fully modular system allowing for full customisation
  • Allows for shoring of trenches with pipes and crossing services
  • Incredible ease of handling and simple installation
  • Light enough for transport by a utility vehicle to save you big on transport costs
  • Keyed locking system means less components and fewer parts to lose
  • Works in with our existing MAPS system, which has a range of features and benefits and is a customer favourite
Suited For 1DC84AF1-36F8-424F-A2E3-2C7AE1790A18

Shore Hire’s MAPS Sheeting Guides are an incredibly flexible and safe trench shoring system that can be used in a range of applications, including for general construction and utilities contractors. With a range of different sizes and lengths and superior strength, this tool can effectively support trenches up to any depth, provided the working load limit of the relevant box is not exceeded.

Should you require advice, we always recommend you speak to our technical sales team before any hire.
