Steel Manhole Shoring Boxes


Minimum Width Internal1600mm1600mm
Maximum Width Internal4000mm4000mm
Clearance Between Struts2750mm2750mm
Clearance Beneath Bottom Strut1500mmN/A
Weight with 1000mm Struts2472kg1762kg
Panel Weight1188kg803kg
Panel Thickness75mm75mm
Working Load Limit50kPa50kPa
Strut Weight Per Metre22kg22kg



Steel Manhole Shoring Boxes

Description 1DC84AF1-36F8-424F-A2E3-2C7AE1790A18

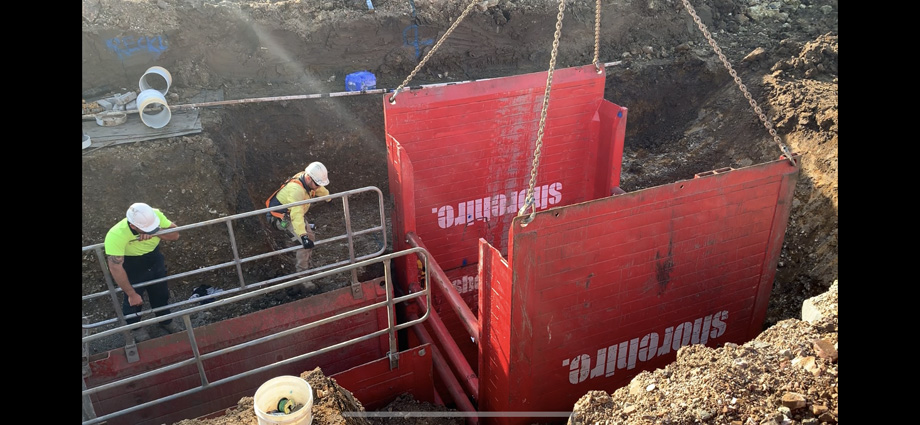

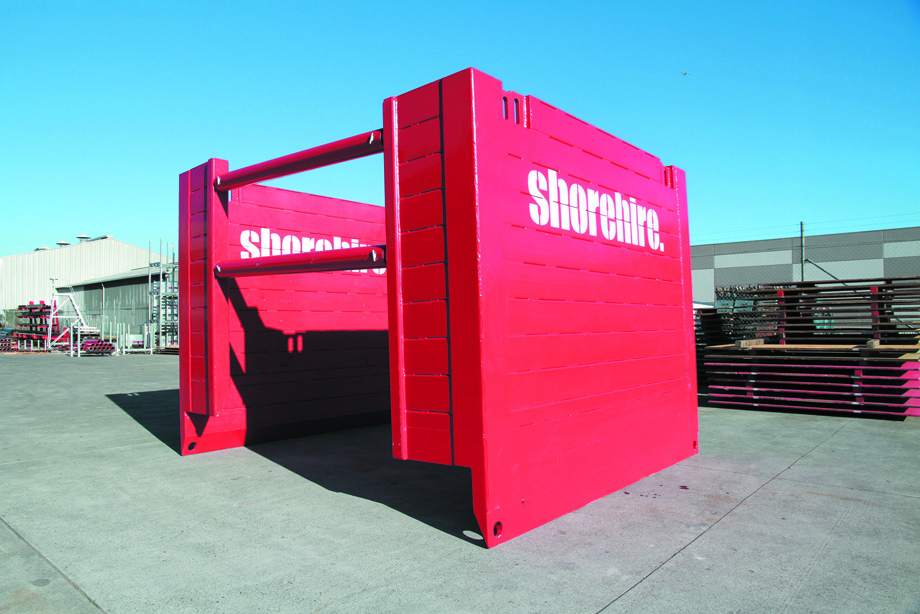

Shore Hire’s extensive range of robust steel shoring boxes are ideal for the majority of light to medium-weight shoring applications. Working off the same principles as our range of steel shoring boxes the manhole box is very similar but features returns at either end of shoring box panel to achieve a more enclosed space conducive to work around manholes and other pits

Coming with both lower and upper sections, Shore Hire’s steel manhole shoring boxes allows for vast and varying depths and can be connected together using panel connectors to build boxes as tall as required. The knife-edge panels allow dig and push installations in sandy conditions, and the foam-filled sections resist water infiltration inside panels. Shore Hire’s steel trench boxes also come with reinforced steel corners for less equipment damage during installation which means fewer costs and headaches for contractors on site when using this gear.

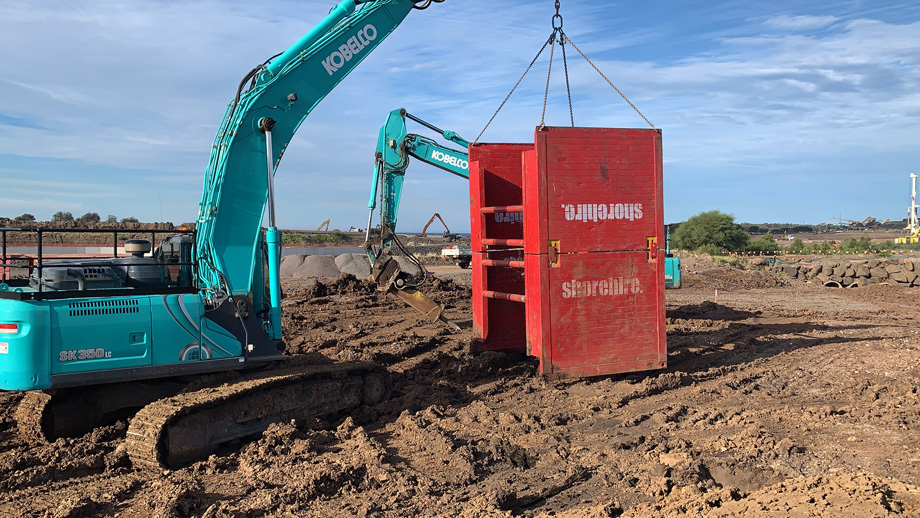

Another value-add to this already great product is Shore Hire’s pre-build service, where if transport conditions permit, Shore Hire will pre-build your shoring box before delivery so that when it arrives at your job site, it’s ready to install straight away to save even more time and money on your project.

Features 1DC84AF1-36F8-424F-A2E3-2C7AE1790A18
  • A range of technical support is available, so you know that what you’re putting in the ground is the absolute best and safest product possible
  • Lightweight, so you can save on machinery and operational costs
  • Versatile with various sizes, so that whatever the job requires, Shore Hire has the option to suit
  • Foam filled to reduce waterlogging so that when it comes time to pull it out of the ground, it’s not going to be twice as heavy
  • Knife-edge for far easier installs and fewer headaches for the man in the machine
  • Equipped with a Four Point Lifting System for  easier and safer installs
  • Working pressures of 50kPa to allow for as many ground conditions as possible
  • High-strength steel construction for the most robust and safest shoring system possible
  • Securely pinned connectors for upper units so you can build the box as high or as low as you need
  • Optimum operator visibility for maximum on-site safety
  • End plates available, so you can fully enclose the shoring system
  • Easy to assemble and options for Shore Hire to pre-build where possible to save you as much time and money as possible on site
  • Manufactured & Certified AS 4744.1-2000 so you know that every safety checkbox is ticked when you use our products
  • Internal working width of 0.6m to 4.0m to allow for any application
  • Compatible with Edge Safe Protection Range for even more safety options
Suited For 1DC84AF1-36F8-424F-A2E3-2C7AE1790A18

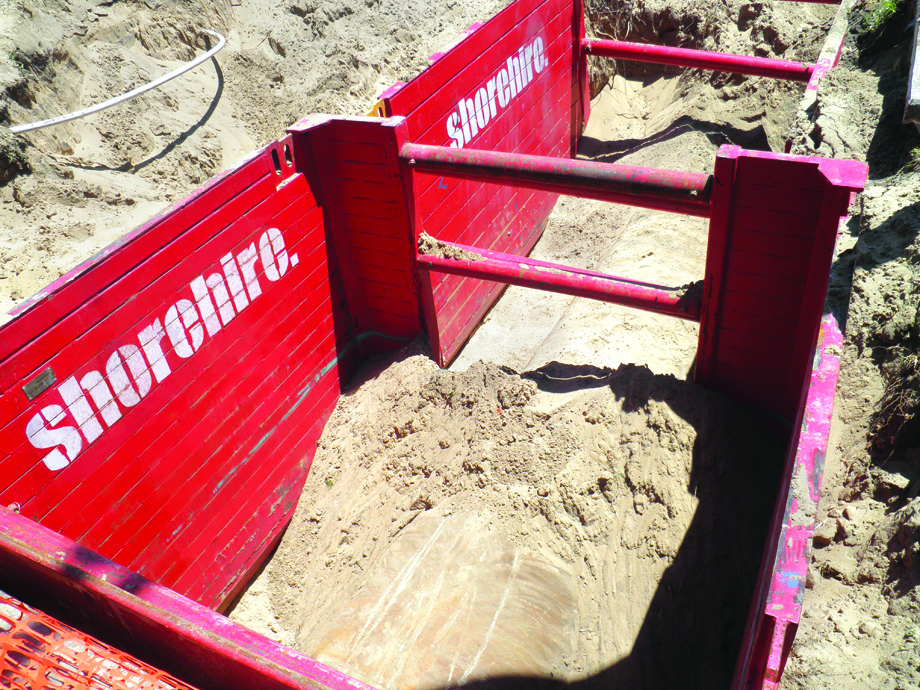

Shore Hire’s steel shoring boxes are an incredibly versatile and safe trench shoring system for general construction and utilities contractors, with the flexibility to use a range of different sizes and lengths the superior strength : weight ratio of our steel shoring boxes are designed to effectively support trenches up to any depth, provided the working load limit of the relevant box is not exceeded.

Should you require advice we always recommend you speak to our technical sales team before any hire.
