Power Pole Bracket



Power Pole Bracket

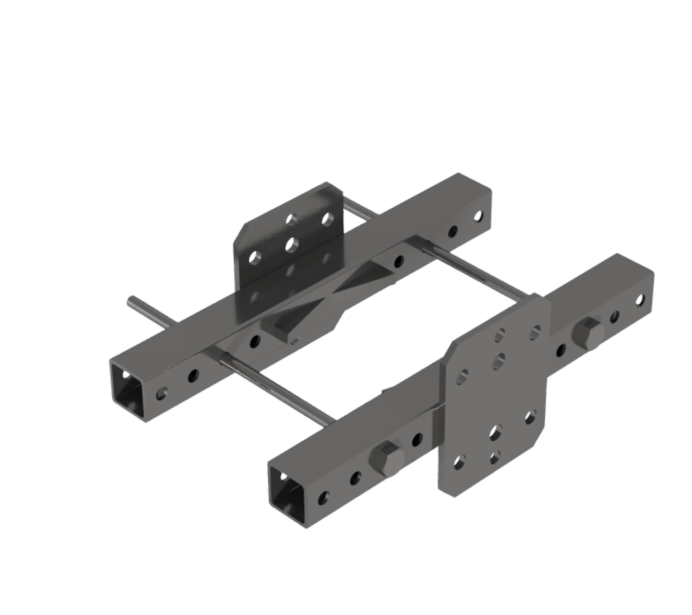

Shore Hire’s Power Pole Bracket is a custom-built solution designed to be used in pole propping applications.
The steel clamp is used in lieu of a more costly and bigger system such as a pole grab truck and is suited for use on a wide range of common poles.

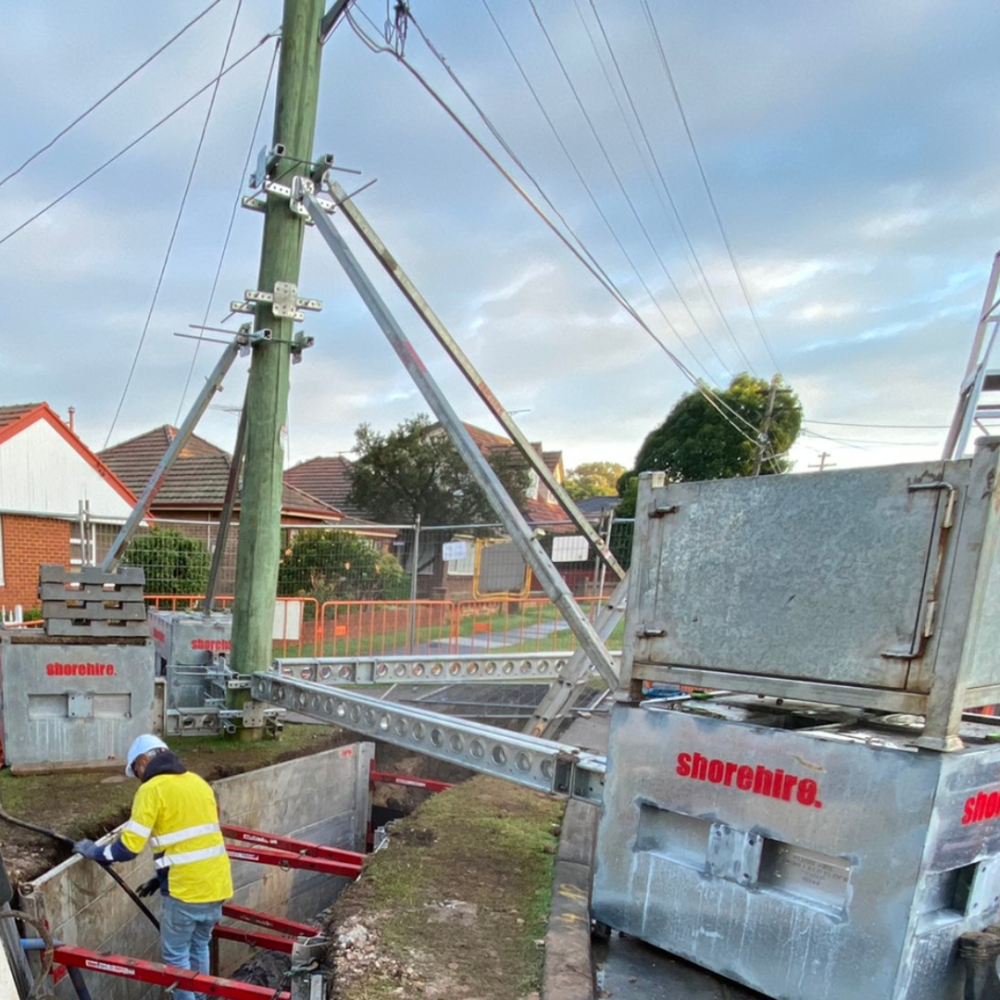

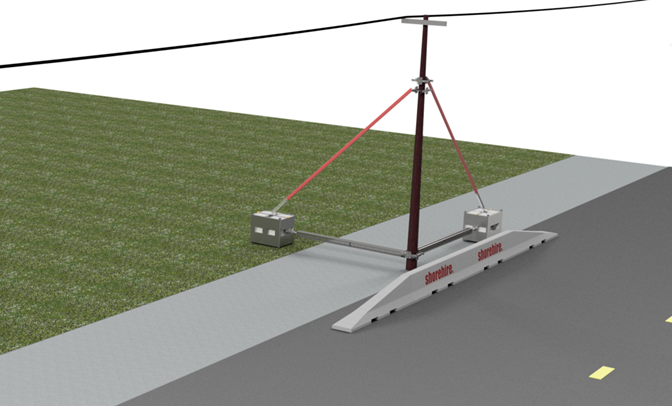

The system comes in a set and is secured via a threaded rod, it is also designed to be used with our range of tilt and modular raking props which can then connect to our engineered block on the ground to give you a fully safe and compliant system.
As with all of Shore Hire’s propping products, the true value of this system Is not just in the product but also in the wealth of experience our engineering and rigging teams provide, Shore Hire can handle the engineering design and installation of any needling application you require to give you full peace of mind and confidence the job will be done efficiently and safely.
- 350MPa grade structural steel
- Restrain pole in both X and Y directions
- Clamped together using grade 8.8 threaded rod
- Suited for poles of diameter 250-530mm (for bigger applications we can customise a solution)
Shore Hire’s Power Pole Clamps are suited for pole propping applications. The brackets themselves are suited for poles with a diameter between 250-530mm but a custom solution can be created if necessary.
