Light props with high load-bearing capacity.

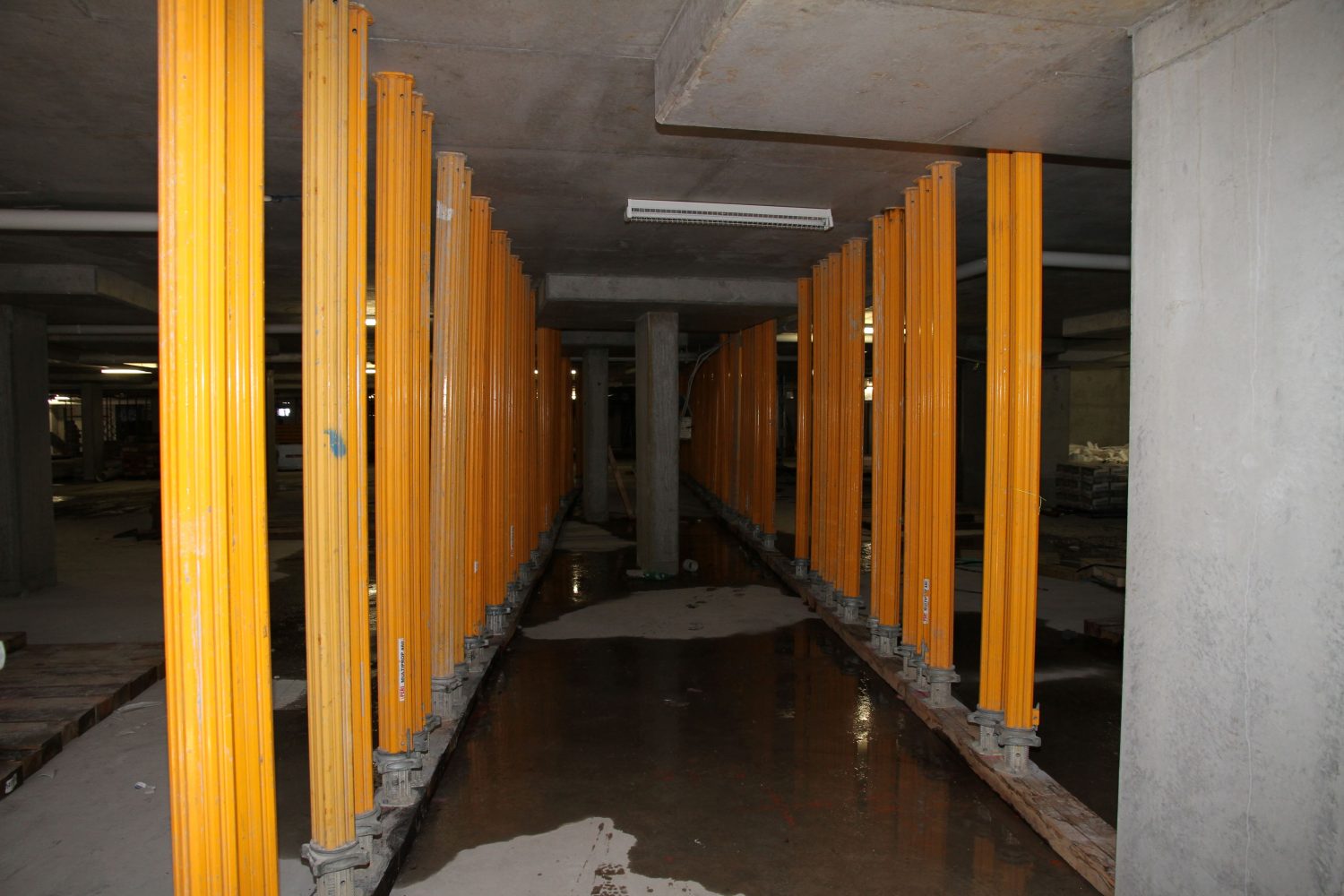

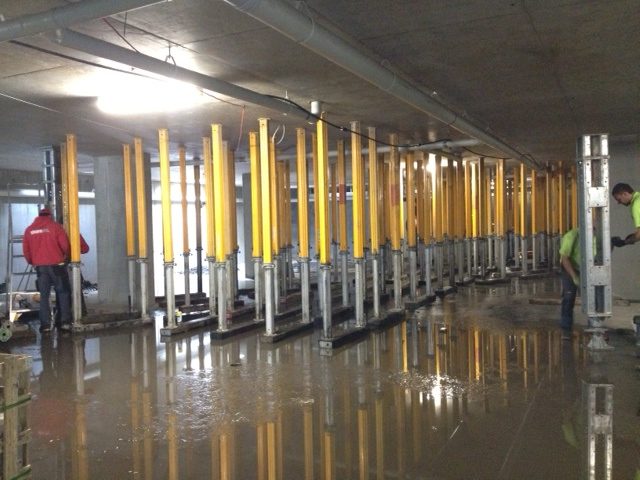

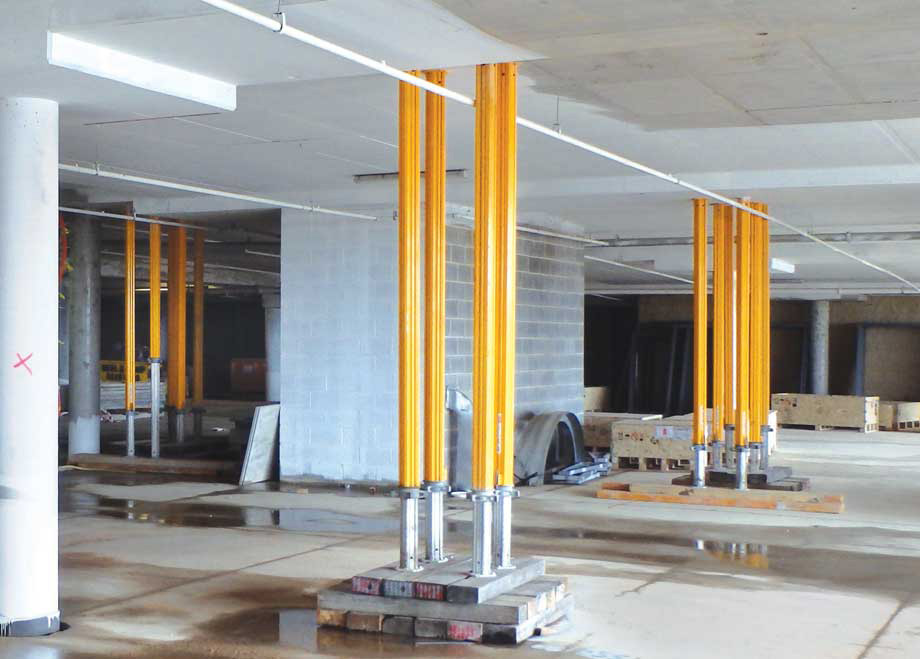

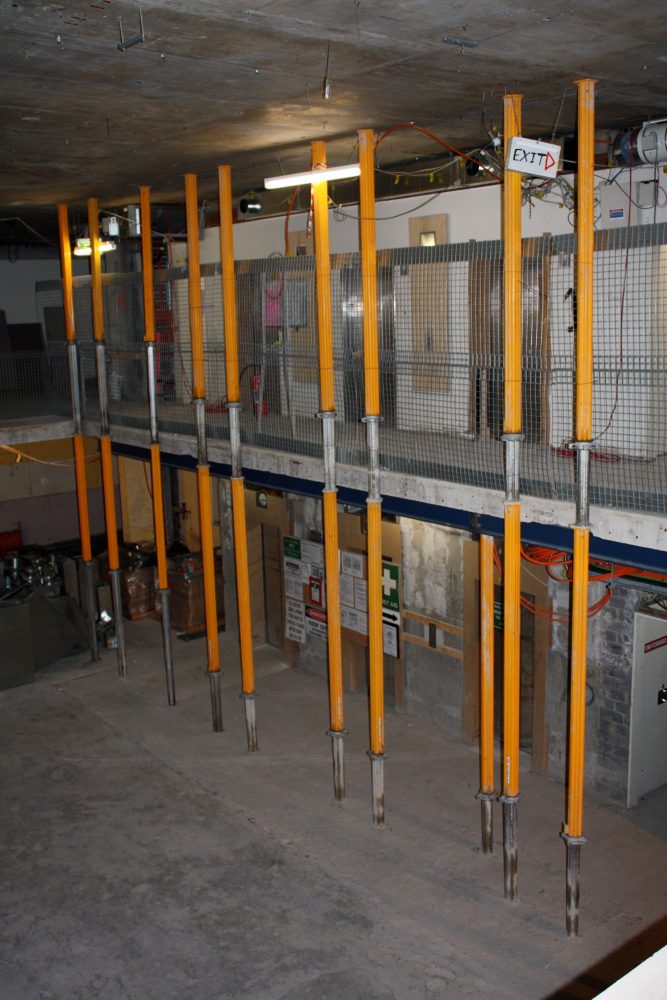

Multi props provide a flexible and durable propping system with their low weight, high load capacity and integrated features making them highly useful in a variety of construction applications.

Shore Hire aluminium multi props provide considerable durability advantages over steel tubing alternatives. The patented profile ensures longer service life and dependability, not to mention weight advantages for transport ad installation. Multi props provide a high load capacity (up to 90kN) and flexibility – the MP 350, for example, can be extended from 1.95m to 3.50m with an overall weight of only 18.8kg.



Our multi props have been used for construction projects including Double Bay.

Multi PROP SPECIFICATIONS

Extend. Length (m) MP 250
Length = 1.45 – 2.50m		 MP 350
Length = 1.95 – 3.50m		 MP 480
Length = 2.60 – 4.80m		 MP 625
Length = 4.30 – 6.25m
Outer Tube at Bottom Inner Tube at Bottom Outer Tube at Bottom Inner Tube at Bottom Outer Tube at Bottom Inner Tube at Bottom Outer Tube at Bottom Inner Tube at Bottom
(kN) (kN)
1.45 73.3 76.2
1.50 73.3 76.2
1.60 73.3 76.2
1.70 73.3 76.2
1.80 71.7 76.2
1.90 68.6 76.2 (kN) (kN)
1.95 67.0 76.2 88.3 87.4
2.00 65.4 76.2 88.3 87.4
2.10 63.8 74.6 83.0 87.4
2.20 62.2 73.0 77.7 87.4
2.30 61.1 70.5 72.9 86.6
2.40 60.6 67.0 68.6 85.1
2.50 60.6 63.6 64.4 83.5 (kN) (kN)
2.60 61.9 80.7 85.9 71.4
2.70 59.3 77.8 81.2 71.1
2.80 57.5 74.9 76.5 70.8
2.90 55.7 71.9 71.8 70.4
3.00 54.3 68.3 67.1 70.1
3.10 52.9 64.6 63.0 69.4
3.20 51.4 60.0 58.9 68.6
3.30 49.8 55.4 54.8 67.9
3.40 46.4 50.3 52.5 66.2
3.50 42.9 45.1 50.2 64.5
3.60 47.9 62.8
3.70 46.0 58.6
3.80 44.2 54.4
3.90 42.3 50.2
4.00 40.4 46.9
4.10 38.5 43.7
4.20 36.6 40.4 (kN) (kN)
4.30 34.8 38.2 56.2 44.6
4.40 32.9 36.0 54.7 44.6
4.50 31.1 33.7 53.1 44.6
4.60 29.3 31.5 50.9 43.8
4.70 27.4 29.3 48.8 43.0
4.80 25.6 27.1 46.4 42.1
4.90 43.8 41.2
5.00 41.2 40.3
5.10 38.6 38.8
5.20 36.1 37.3
5.30 33.6 35.9
5.40 31.9 34.5
5.50 29.9 33.1
5.60 28.4 31.6
5.70 26.9 30.1
5.80 25.5 28.6
5.90 24.3 27.0
6.00 23.1 25.4
6.10 22.0 24.1
6.20 20.9 22.8
6.25 20.4 22.1

Multi props are a flexible propping method suitable for a range of applications:



  • Hollow core deck support
  • Back propping
  • Tight access environments

Multi PROP SPECIFICATIONS

Extend. Length (m) MP 250
Length = 1.45 – 2.50m		 MP 350
Length = 1.95 – 3.50m		 MP 480
Length = 2.60 – 4.80m		 MP 625
Length = 4.30 – 6.25m
Outer Tube at Bottom Inner Tube at Bottom Outer Tube at Bottom Inner Tube at Bottom Outer Tube at Bottom Inner Tube at Bottom Outer Tube at Bottom Inner Tube at Bottom
(kN) (kN)
1.45 73.3 76.2
1.50 73.3 76.2
1.60 73.3 76.2
1.70 73.3 76.2
1.80 71.7 76.2
1.90 68.6 76.2 (kN) (kN)
1.95 67.0 76.2 88.3 87.4
2.00 65.4 76.2 88.3 87.4
2.10 63.8 74.6 83.0 87.4
2.20 62.2 73.0 77.7 87.4
2.30 61.1 70.5 72.9 86.6
2.40 60.6 67.0 68.6 85.1
2.50 60.6 63.6 64.4 83.5 (kN) (kN)
2.60 61.9 80.7 85.9 71.4
2.70 59.3 77.8 81.2 71.1
2.80 57.5 74.9 76.5 70.8
2.90 55.7 71.9 71.8 70.4
3.00 54.3 68.3 67.1 70.1
3.10 52.9 64.6 63.0 69.4
3.20 51.4 60.0 58.9 68.6
3.30 49.8 55.4 54.8 67.9
3.40 46.4 50.3 52.5 66.2
3.50 42.9 45.1 50.2 64.5
3.60 47.9 62.8
3.70 46.0 58.6
3.80 44.2 54.4
3.90 42.3 50.2
4.00 40.4 46.9
4.10 38.5 43.7
4.20 36.6 40.4 (kN) (kN)
4.30 34.8 38.2 56.2 44.6
4.40 32.9 36.0 54.7 44.6
4.50 31.1 33.7 53.1 44.6
4.60 29.3 31.5 50.9 43.8
4.70 27.4 29.3 48.8 43.0
4.80 25.6 27.1 46.4 42.1
4.90 43.8 41.2
5.00 41.2 40.3
5.10 38.6 38.8
5.20 36.1 37.3
5.30 33.6 35.9
5.40 31.9 34.5
5.50 29.9 33.1
5.60 28.4 31.6
5.70 26.9 30.1
5.80 25.5 28.6
5.90 24.3 27.0
6.00 23.1 25.4
6.10 22.0 24.1
6.20 20.9 22.8
6.25 20.4 22.1
  • Integrated measuring tape will guarantee accurate adjustments
  • Self-cleaning thread
  • Lightweight
  • High load capacity



For information on multi prop requirements for your next project contact us today.

Multi PROP SPECIFICATIONS

Extend. Length (m) MP 250
Length = 1.45 – 2.50m		 MP 350
Length = 1.95 – 3.50m		 MP 480
Length = 2.60 – 4.80m		 MP 625
Length = 4.30 – 6.25m
Outer Tube at Bottom Inner Tube at Bottom Outer Tube at Bottom Inner Tube at Bottom Outer Tube at Bottom Inner Tube at Bottom Outer Tube at Bottom Inner Tube at Bottom
(kN) (kN)
1.45 73.3 76.2
1.50 73.3 76.2
1.60 73.3 76.2
1.70 73.3 76.2
1.80 71.7 76.2
1.90 68.6 76.2 (kN) (kN)
1.95 67.0 76.2 88.3 87.4
2.00 65.4 76.2 88.3 87.4
2.10 63.8 74.6 83.0 87.4
2.20 62.2 73.0 77.7 87.4
2.30 61.1 70.5 72.9 86.6
2.40 60.6 67.0 68.6 85.1
2.50 60.6 63.6 64.4 83.5 (kN) (kN)
2.60 61.9 80.7 85.9 71.4
2.70 59.3 77.8 81.2 71.1
2.80 57.5 74.9 76.5 70.8
2.90 55.7 71.9 71.8 70.4
3.00 54.3 68.3 67.1 70.1
3.10 52.9 64.6 63.0 69.4
3.20 51.4 60.0 58.9 68.6
3.30 49.8 55.4 54.8 67.9
3.40 46.4 50.3 52.5 66.2
3.50 42.9 45.1 50.2 64.5
3.60 47.9 62.8
3.70 46.0 58.6
3.80 44.2 54.4
3.90 42.3 50.2
4.00 40.4 46.9
4.10 38.5 43.7
4.20 36.6 40.4 (kN) (kN)
4.30 34.8 38.2 56.2 44.6
4.40 32.9 36.0 54.7 44.6
4.50 31.1 33.7 53.1 44.6
4.60 29.3 31.5 50.9 43.8
4.70 27.4 29.3 48.8 43.0
4.80 25.6 27.1 46.4 42.1
4.90 43.8 41.2
5.00 41.2 40.3
5.10 38.6 38.8
5.20 36.1 37.3
5.30 33.6 35.9
5.40 31.9 34.5
5.50 29.9 33.1
5.60 28.4 31.6
5.70 26.9 30.1
5.80 25.5 28.6
5.90 24.3 27.0
6.00 23.1 25.4
6.10 22.0 24.1
6.20 20.9 22.8
6.25 20.4 22.1

The Multi Props can be delivered standalone or as as part of our comprehensive full-service solution. This includes:

  • Free on-site assessment
  • Engineering design
  • Delivery
  • Installation by our professional rigging team

Multi PROP SPECIFICATIONS

Extend. Length (m) MP 250
Length = 1.45 – 2.50m		 MP 350
Length = 1.95 – 3.50m		 MP 480
Length = 2.60 – 4.80m		 MP 625
Length = 4.30 – 6.25m
Outer Tube at Bottom Inner Tube at Bottom Outer Tube at Bottom Inner Tube at Bottom Outer Tube at Bottom Inner Tube at Bottom Outer Tube at Bottom Inner Tube at Bottom
(kN) (kN)
1.45 73.3 76.2
1.50 73.3 76.2
1.60 73.3 76.2
1.70 73.3 76.2
1.80 71.7 76.2
1.90 68.6 76.2 (kN) (kN)
1.95 67.0 76.2 88.3 87.4
2.00 65.4 76.2 88.3 87.4
2.10 63.8 74.6 83.0 87.4
2.20 62.2 73.0 77.7 87.4
2.30 61.1 70.5 72.9 86.6
2.40 60.6 67.0 68.6 85.1
2.50 60.6 63.6 64.4 83.5 (kN) (kN)
2.60 61.9 80.7 85.9 71.4
2.70 59.3 77.8 81.2 71.1
2.80 57.5 74.9 76.5 70.8
2.90 55.7 71.9 71.8 70.4
3.00 54.3 68.3 67.1 70.1
3.10 52.9 64.6 63.0 69.4
3.20 51.4 60.0 58.9 68.6
3.30 49.8 55.4 54.8 67.9
3.40 46.4 50.3 52.5 66.2
3.50 42.9 45.1 50.2 64.5
3.60 47.9 62.8
3.70 46.0 58.6
3.80 44.2 54.4
3.90 42.3 50.2
4.00 40.4 46.9
4.10 38.5 43.7
4.20 36.6 40.4 (kN) (kN)
4.30 34.8 38.2 56.2 44.6
4.40 32.9 36.0 54.7 44.6
4.50 31.1 33.7 53.1 44.6
4.60 29.3 31.5 50.9 43.8
4.70 27.4 29.3 48.8 43.0
4.80 25.6 27.1 46.4 42.1
4.90 43.8 41.2
5.00 41.2 40.3
5.10 38.6 38.8
5.20 36.1 37.3
5.30 33.6 35.9
5.40 31.9 34.5
5.50 29.9 33.1
5.60 28.4 31.6
5.70 26.9 30.1
5.80 25.5 28.6
5.90 24.3 27.0
6.00 23.1 25.4
6.10 22.0 24.1
6.20 20.9 22.8
6.25 20.4 22.1

Our top products

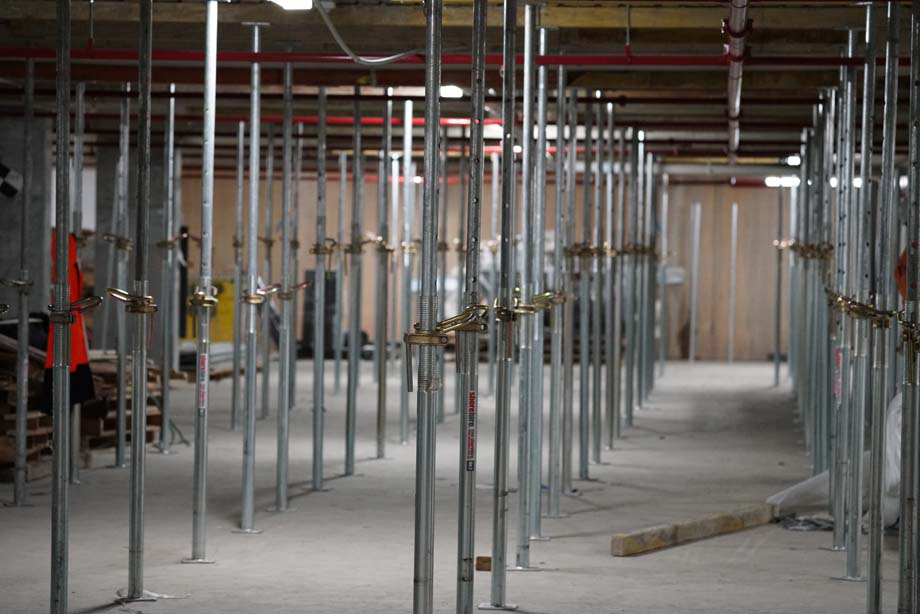

  • Acrow Props
