Sheet piles

Availability: Same Day

  • Description
  • Features
  • Suited for
  • Inclusions

Shore Hire stock a range of Sheet Piles used for temporary applications.

Shore Hire’s sheet piles are a highly useful component in a variety of shoring and excavation systems. Our sheet piles have been designed for quick and easy installation and extraction and we can supply profiles and lengths to suit any application, including engineered sheet pile solutions. Our sheet piles are fully compatible with the full range of Shore Hire shoring systems such as trench boxes and hydraulic bracing systems.
Shore Hire are constantly expanding our range of lengths and profiles so get in touch today to see what we can offer

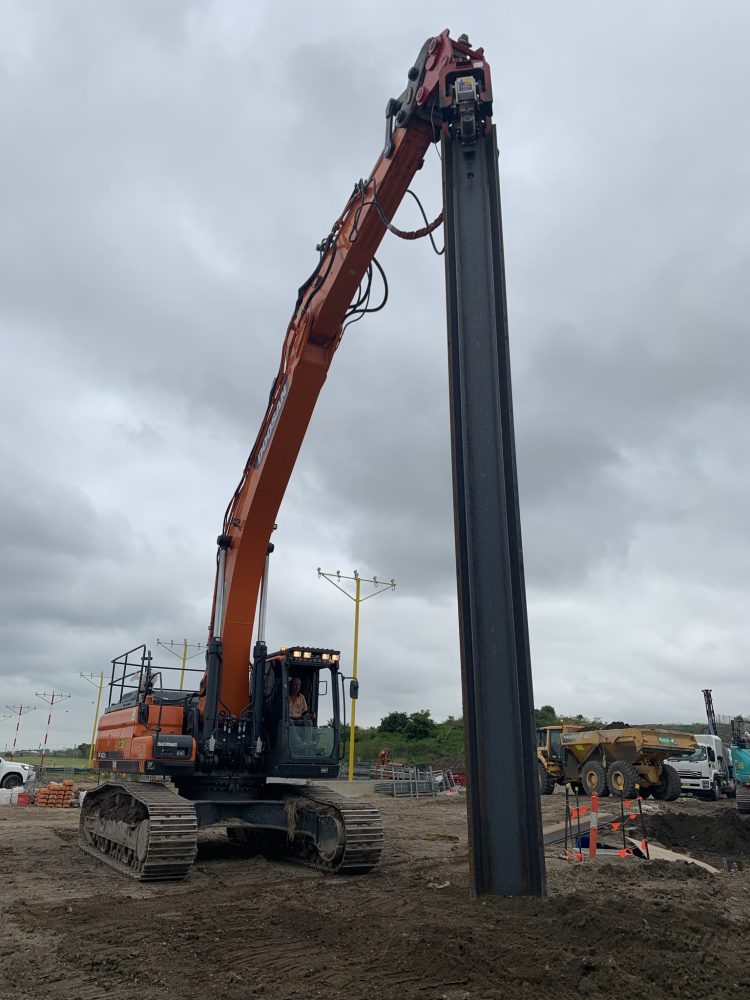

A full range of handling and driving accessories are available including Excavator mounted vibrator, drive caps, quick release shackles and trench sheet extractors.

Sheet Piles Specifications

Sheet Pile GU 8N GU 13N
Width 600mm 600mm
Sheet Height 175mm 230mm
Height When Clutched 312mm 418mm
Thickness 7.5mm 9mm
Weight Per Linear Metre 48.5gk/m 59.9kg/m
Weight Per Square Metre 81kg/m2 99.8kg/m2
Moment Of Inertia 12010cm4/m 26590cm4/m
Elastic Section Modulus 770cm3/m 1270cm3/m
Plastic Section Modulus 935cm3/m 1535cm3/m
Material Grade S390 GP S390 GP



  • A full range of handling and driving accessories including Excavator Mounted Vibrators and hitches, driving caps, lifting chains, quick release shackles, sheet extractors, edge protection and working at heights safety equipment
  • Engineered sheet pile and bracing solutions available
  • Multiple profiles and lengths available
Sheet Pile GU 8N GU 13N
Width 600mm 600mm
Sheet Height 175mm 230mm
Height When Clutched 312mm 418mm
Thickness 7.5mm 9mm
Weight Per Linear Metre 48.5gk/m 59.9kg/m
Weight Per Square Metre 81kg/m2 99.8kg/m2
Moment Of Inertia 12010cm4/m 26590cm4/m
Elastic Section Modulus 770cm3/m 1270cm3/m
Plastic Section Modulus 935cm3/m 1535cm3/m
Material Grade S390 GP S390 GP

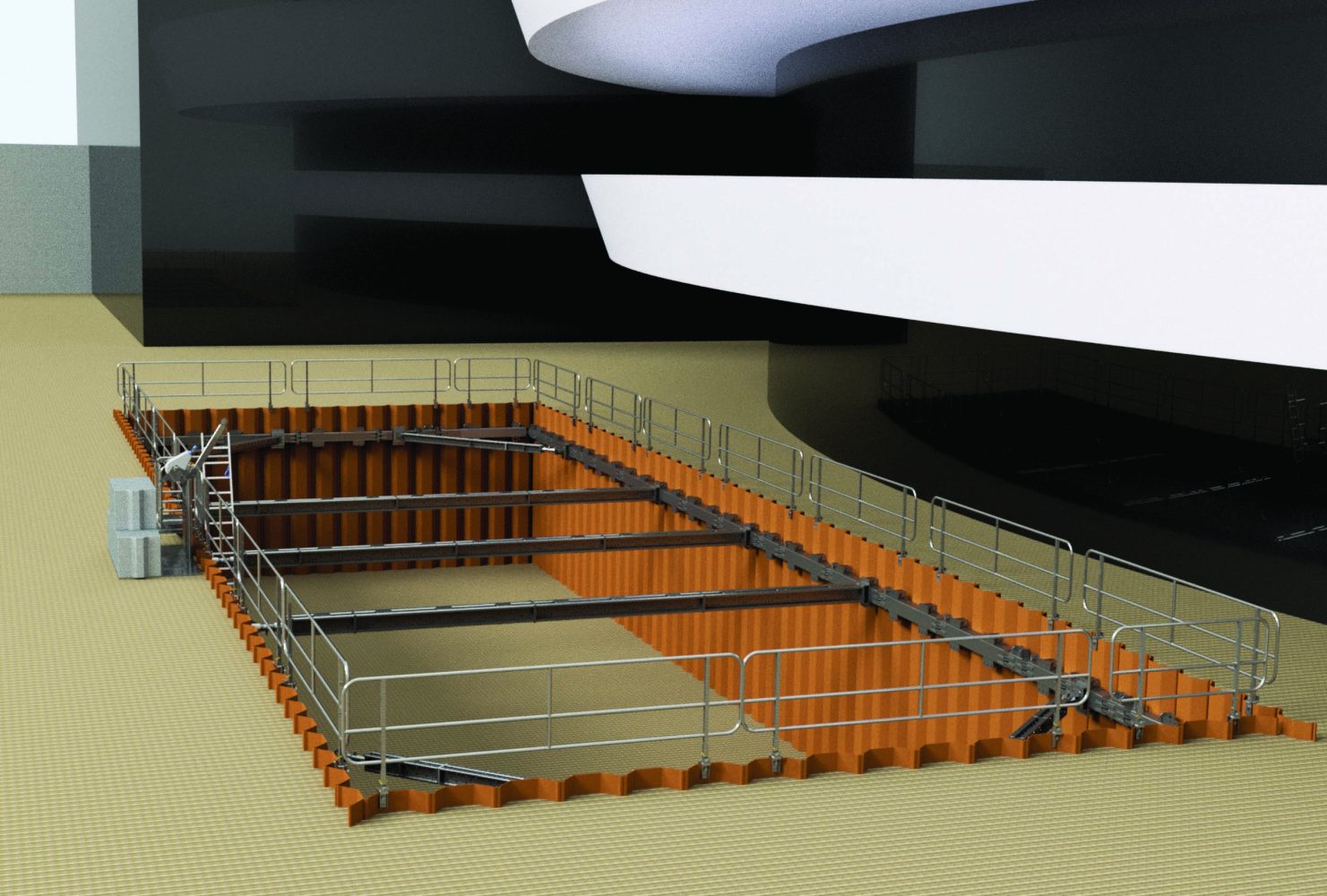

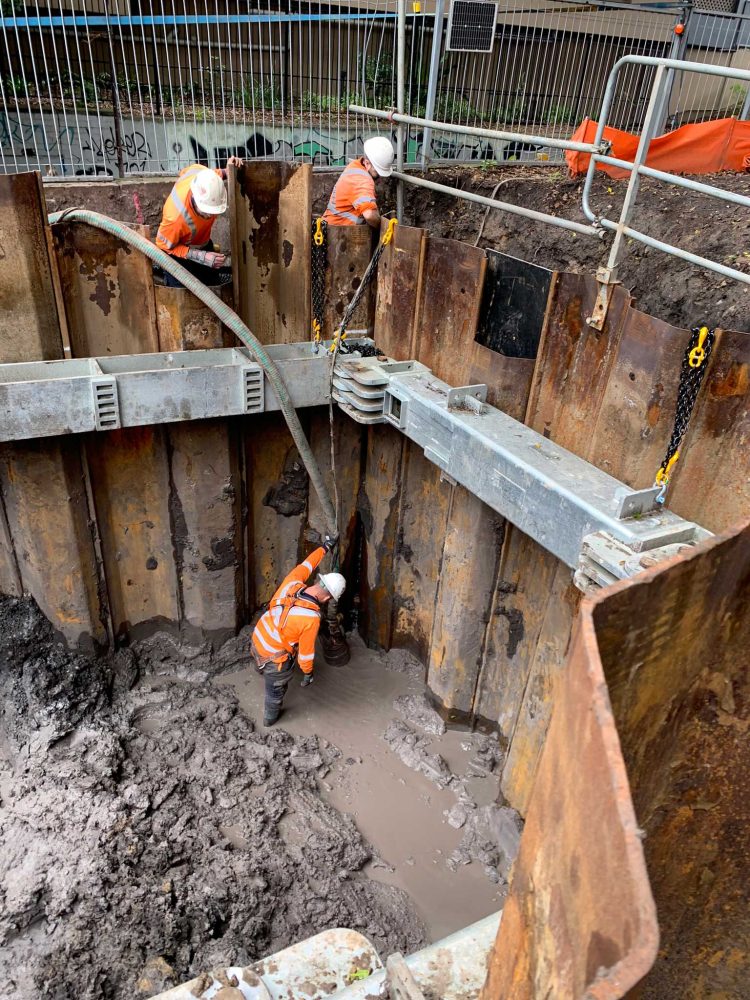

Sheet Piles are used to make continuous overlapping walls within excavations and are used in conjunction with a variety of trench shoring systems including timber walersaluminium walers and hydraulic bracing systems.Sheet Piles are also used as end shoring in trench box applications

Sheet Pile GU 8N GU 13N
Width 600mm 600mm
Sheet Height 175mm 230mm
Height When Clutched 312mm 418mm
Thickness 7.5mm 9mm
Weight Per Linear Metre 48.5gk/m 59.9kg/m
Weight Per Square Metre 81kg/m2 99.8kg/m2
Moment Of Inertia 12010cm4/m 26590cm4/m
Elastic Section Modulus 770cm3/m 1270cm3/m
Plastic Section Modulus 935cm3/m 1535cm3/m
Material Grade S390 GP S390 GP



The Sheet piles can be delivered standalone or as as part of our comprehensive full-service solution. This includes:

  • Free on-site assessment
  • Engineering design
  • Delivery

For safety products available for use with the Sheet piles, click here
