Shore 6m Trench Box

Availability: Same Day

  • Features
  • description
  • suited for
  • inclusions

Shore Hire’s 6M-40 Trench Box is designed for large excavations.

  • Foam filled to reduce waterlogging
  • 150mm thick walls
  • Reinforced bottom cutting edge
  • Four lifting points
  • All steel construction
  • Able to add top extensions via panel connections
  • High clearance Arch Spreader struts available
  • Heavy duty construction
  • Reinforced top rail

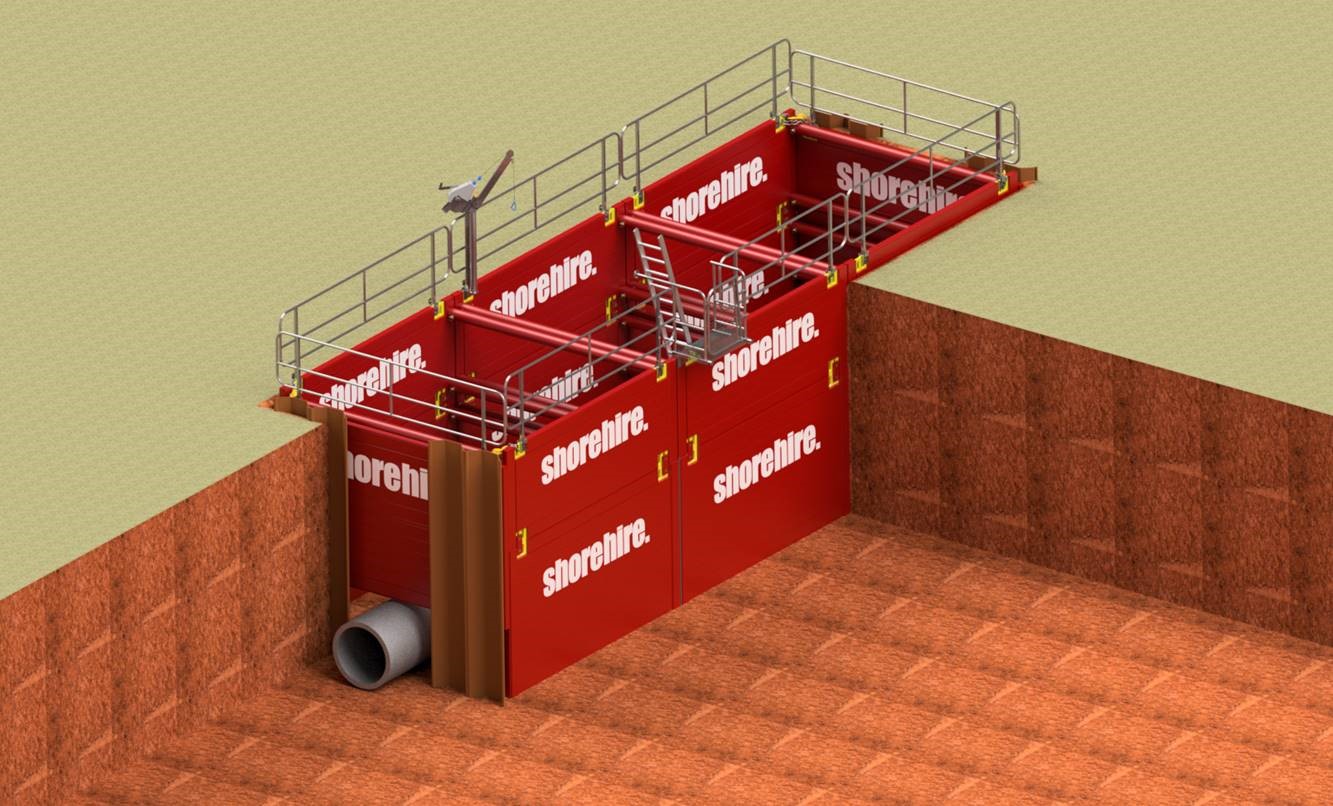

  • End plates available
  • Internal working width of 0.6m to 4.0m
  • Manufactured and Certified AS 4744.1-2000
  • Compatible with Edge Safe Protecting Range
  • Toe out for Dig & Push Installation method

SHORE 6M TRENCH BOX SPECIFICATIONS

Specification Base Top
Length 6100mm 6100mm
Height 2500mm 1500mm
Minimum Width Internal 600mm 600mm
Maximum Width Internal 4000mm 4000mm
Clearance Between Struts 5700mm 5700mm
Clearance Beneath Bottom Strut 1500mm 675mm
Weight with 1000mm Struts 4964kg 3788kg
Panel Weight 2388kg 1770kg
Panel Thickness 150mm 150mm
Working Load Limit 40kPa 40kPa
Strut Weight Per Metre 42.5kg 42.5kg

Shore Hire’s 6M-40 Trench Box is designed for large excavations.

The Shore 6M-40 Trench Box is engineered to handle large scale excavations where longer shoring boxes are required.

The 150mm thick wall has been designed to meet the special needs of large pipe installation, boring pits, pump stations or projects where long pipes are being laid.

This range of trench boxes guarantees you heavy duty performance in demanding conditions and depths can be increased by adding a 1.5m top extension unit.



The 6M Trench Box also allows the use of Shore Hire’s high clearance arch spreader system, which gives the advantage of greater clearance under the lower strut, for the installation of large diameter pipes and culverts.



Shore Hire’s trench boxes have been used in a variety of projects including Tullamarine, Padstow and Penrith.

SHORE 6M TRENCH BOX SPECIFICATIONS

Specification Base Top
Length 6100mm 6100mm
Height 2500mm 1500mm
Minimum Width Internal 600mm 600mm
Maximum Width Internal 4000mm 4000mm
Clearance Between Struts 5700mm 5700mm
Clearance Beneath Bottom Strut 1500mm 675mm
Weight with 1000mm Struts 4964kg 3788kg
Panel Weight 2388kg 1770kg
Panel Thickness 150mm 150mm
Working Load Limit 40kPa 40kPa
Strut Weight Per Metre 42.5kg 42.5kg

The Shore 6M Trench Box is designed for large trench shoring applications including large pipe installation, boring pits, pump stations or projects where long pipes are being laid.

Our 6m trench boxes are part of Shore Hire’s full range of box shoring systems including 3m trench boxes, 4m trench boxes and 3m manhole boxes. Full technical support is available to the correct installation and use on your next project.

SHORE 6M TRENCH BOX SPECIFICATIONS

Specification Base Top
Length 6100mm 6100mm
Height 2500mm 1500mm
Minimum Width Internal 600mm 600mm
Maximum Width Internal 4000mm 4000mm
Clearance Between Struts 5700mm 5700mm
Clearance Beneath Bottom Strut 1500mm 675mm
Weight with 1000mm Struts 4964kg 3788kg
Panel Weight 2388kg 1770kg
Panel Thickness 150mm 150mm
Working Load Limit 40kPa 40kPa
Strut Weight Per Metre 42.5kg 42.5kg

The Shore 6m Trench Box can be delivered standalone or as as part of our comprehensive full-service solution. This includes:

  • Free on-site assessment
  • Engineering design
  • Delivery

For safety products available for use with the Shore 6m Trench Box, click here



SHORE 6M TRENCH BOX SPECIFICATIONS

Specification Base Top
Length 6100mm 6100mm
Height 2500mm 1500mm
Minimum Width Internal 600mm 600mm
Maximum Width Internal 4000mm 4000mm
Clearance Between Struts 5700mm 5700mm
Clearance Beneath Bottom Strut 1500mm 675mm
Weight with 1000mm Struts 4964kg 3788kg
Panel Weight 2388kg 1770kg
Panel Thickness 150mm 150mm
Working Load Limit 40kPa 40kPa
Strut Weight Per Metre 42.5kg 42.5kg
