Kraken Media Filters

Kraken M5 Specifications

Specifications
Hydraulic Capacity (L/s)	5
Dimensions LxWxH (mm)	6056 x 2438 x 2591
Empty Weight (kg)	3250
Media Load (kg) * Type Dependent	2400
Full Weight (kg)	7800
Voltage (V)	415 c/w 32A 5pin socket via appliance inlet
Power (kW)	13.5
Current Max (A)	21.15
TrackUnit GPS	Yes
Inlet Connection (DN)	100mm c/w 100mm Female Bauer
Outlet Connection (DN)	50mm c/w 50mm Female Camlock
Discharge (DN)	50mm c/w 50mm Female Camlock
Backwash Inlet (DN)	50mm c/w 50mm Female Camlock
Backwash Outlet (DN)	50mm c/w 50mm Female Camlock

Kraken M15 Specifications

Specifications
Hydraulic Capacity (L/s)	15
Dimensions LxWxH (mm)	6056 x 2438 x 2591
Empty Weight (kg)	4300
Media Load (kg) * Type Dependent	7500
Full Weight (kg)	14800
Voltage (V)	415 c/w 32A 5pin socket via appliance inlet
Power (kW)	14.4
Current Max (A)	23.25
TrackUnit GPS	Yes
Inlet Connection (DN)	100mm
Outlet Connection (DN)	100mm

Kraken Media Filters

Download Technical Brochure

Description

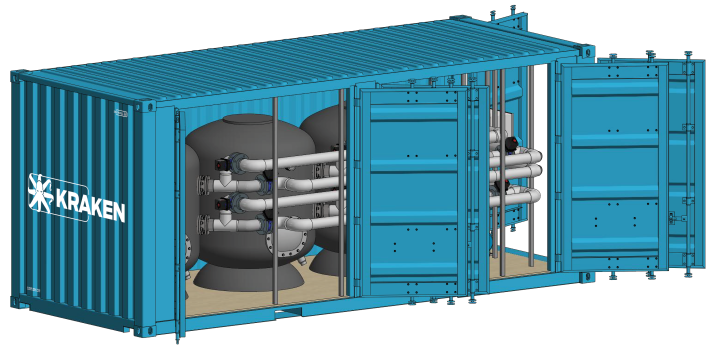

Shore Hire’s Kraken media filtration containers, the M5 and M15, remove impurities, particles, and contaminants from liquids by passing them through layers of specialised filter media tailored to each project.

These products are only available in select locations. Please contact Shore Hire for more information.

Features

Can be loaded with various filter media, such as activated carbon, glass, sand, ion exchange resins or specialised media, to handle different types of contaminants
Plug-and-Treat: Easy to install with minimal technical expertise required, making it ideal for quick setup in conjunction with our other treatment assets
Internal Media Vessel Feed Pump, PLC & Controls
