Sediment Tanks
MudBug MB7 Silt settlement tank SPECIFICATIONS
| Specifications | |
|---|---|
| Capacity (L) | 7000 |
| Inlet Connection (DN) | 150mm/75mm/75mm c/w 150mm Female Bauer @ 2 x 75mm F Camlock |
| Outlet Connection (DN) | 150mm/100mm (pumped outlet), c/w 150mm Male Bauer |
| Dimensions LxWxH (mm) | 3500 x 1670 x 1823 |
| Empty Weight (kg) | 1450 |
| Full Weight SG1.2 (kg) | 9550 |
| TrackUnit GPS | Yes |
Sediment Tanks
Description

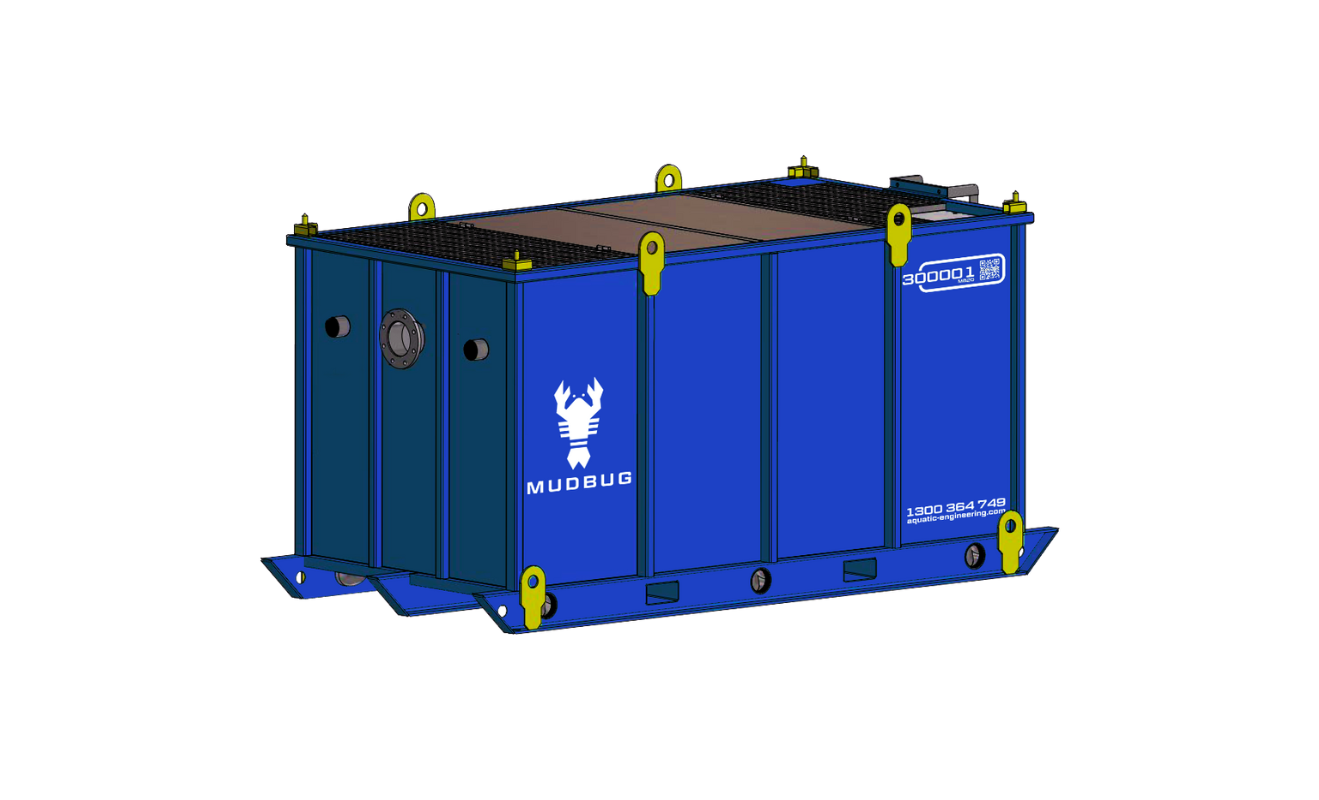

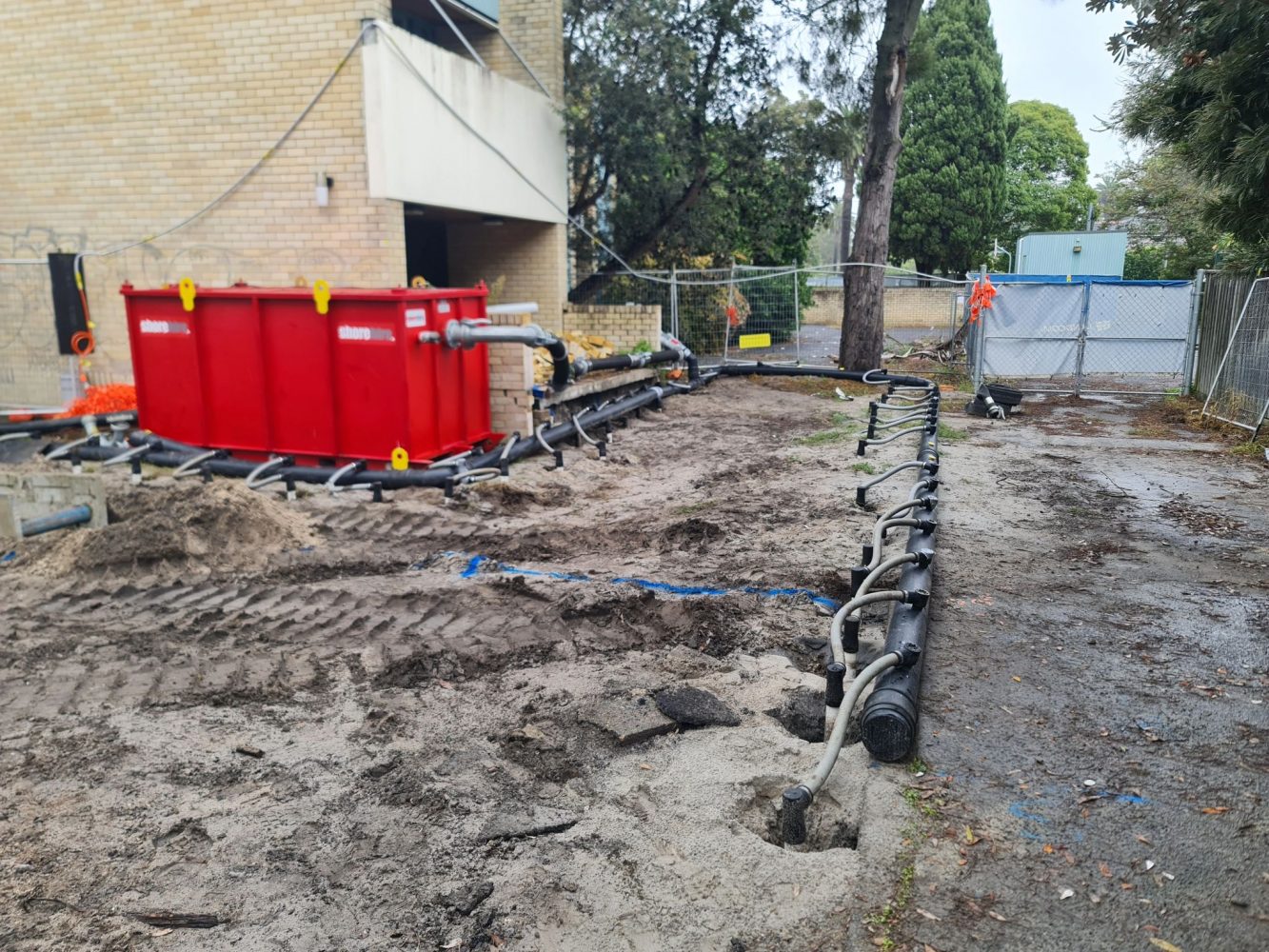

Shore Hire’s MudBug MB7 Silt Settlement Tank is designed for the primary storage and staging of non compliant water on construction sites. It’s primarily used to separate solid particles from water, including organic matter, grit, sand, silt, and other suspended soils.
The MudBug MB7 can be used by itself or to manage the first stage of storage as part of a temporary WTP.
These products are only available in select locations. Please contact Shore Hire for more information.
Features
- 2 high Stackable Design (empty)
- Engineered Lift points from Top or Bottom assist with WHS and site requirements
- Engineered Davit Mount for optional SWL 300kg davit mechanical winch
- Fitted with multiple inlet fittings to suit standard submersibles and/or flexdrives
- The tank can be used for storage containing water from multiple feed locations
- Can be cost effective when managing vac truck load cycles on construction projects
Suited For
Sediment Tanks are designed for a number of applications, including:
- Construction
- Civil engineering
- Landscaping
- Agriculture
- Quarrying
- Tunnelling
- Drilling
- Utility works
- Pumping out wastewater from sites and properties
Should you require advice we always recommend you speak to our technical sales team before any hire.
