MAPS Arch Spreader

Technical Specifications

Specification	Detail
Product Type	MAPS Arch Spreader
Compatible End Members	2.4m and 3.0m MAPS End Members
Internal Width Range	1150mm – 2690mm
Under Strut Clearance	1710mm
Strut Options	MAPS Arch Spreader with Strut 3, Strut 4, or P3000 Strut
Compatible With	MAPS Shoring Panels & MAPS End Posts E08/E10
Steel Grade	350 (AS 3679 compliant)
Design Standards	AS 4744.1, AS 4100

MAPS Arch Spreader

Description

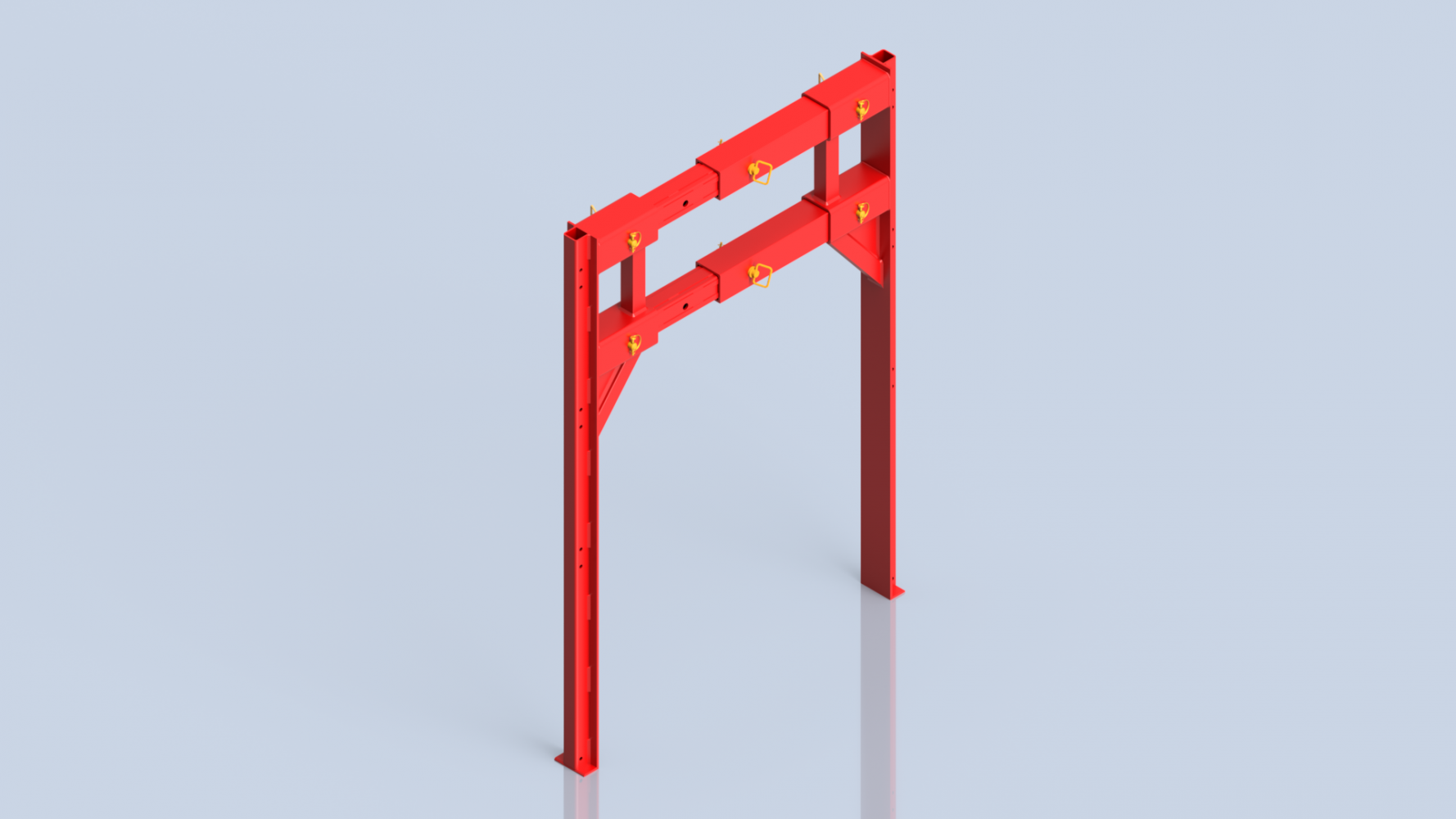

Shore Hire presents the MAPS Arch Spreader – a high-clearance steel strut engineered for use within the Modular Aluminium Panel Shield (MAPS) system. Designed to maximise vertical working space, it provides generous under-strut clearance for personnel and equipment in trench excavations. Compatible with MAPS 2.4 m and 3.0 m End Members, MAPS Struts 3 and 4, and MAPS Panels (1800, 2400, 3000), it offers flexible configuration options using fixed and adjustable struts.

Constructed from Grade 350 steel and certified to AS 4744.1 and AS 4100 standards, it delivers reliable, compliant support for complex shoring applications.

Features

Provides 1710mm under-strut clearance, making it ideal for large diameter pipe installation and high-volume trenching works.
Adjustable from 1150mm to 2690mm to suit varying trench dimensions.
Multiple strut options (Strut 3, Strut 4, P3000) for flexibility in strength and reach.

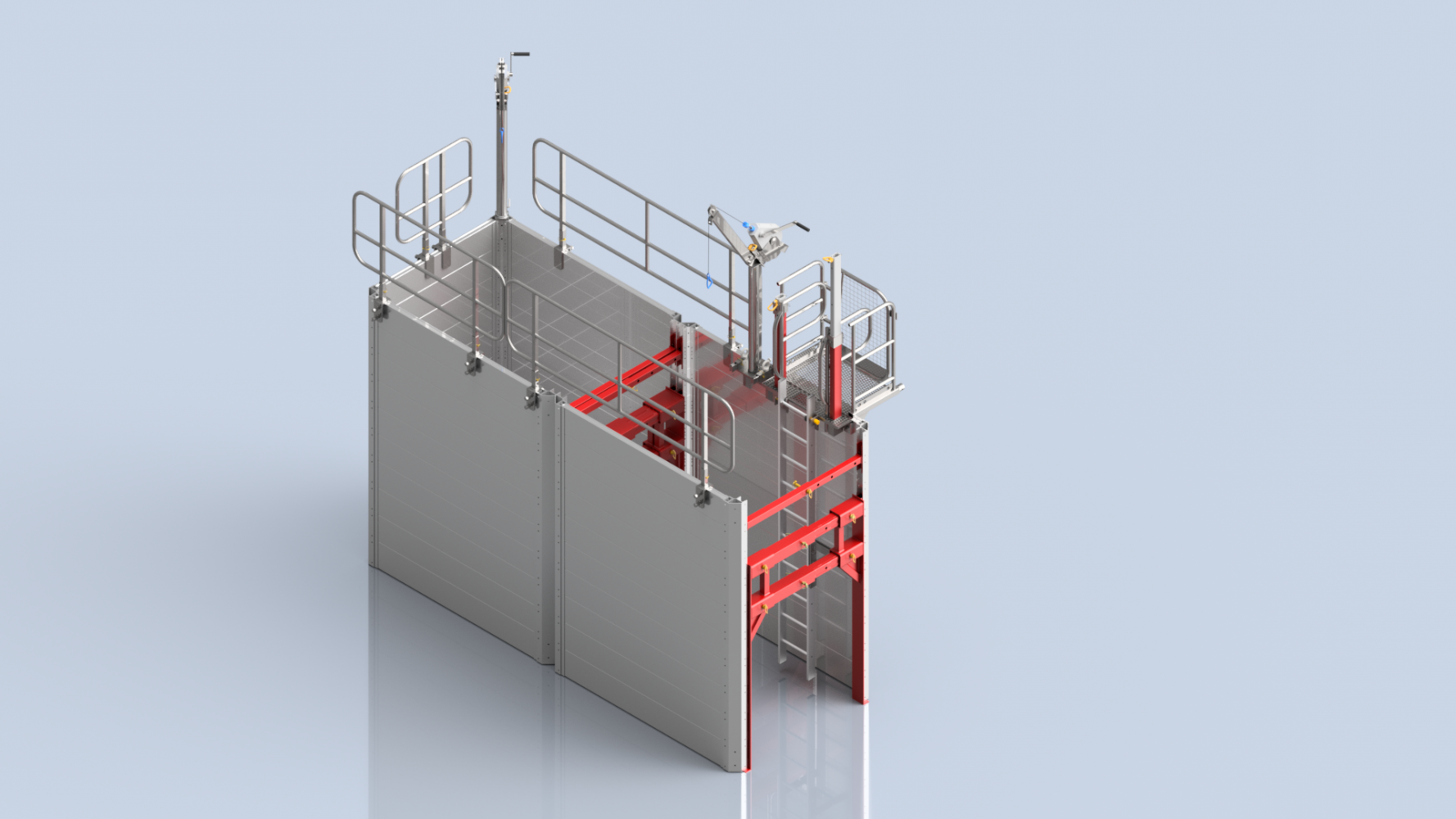

Works seamlessly with MAPS Shoring Panels and MAPS End Posts E08 and E10.
Constructed from durable, high-strength 350 steel in compliance with AS 3679.
Designed in accordance with AS 4744.1: Shoring and Trench Lining and AS 4100: Steel Structures.
Our in-house engineering team can provide custom shoring solutions to meet unique project demands.

Suited For

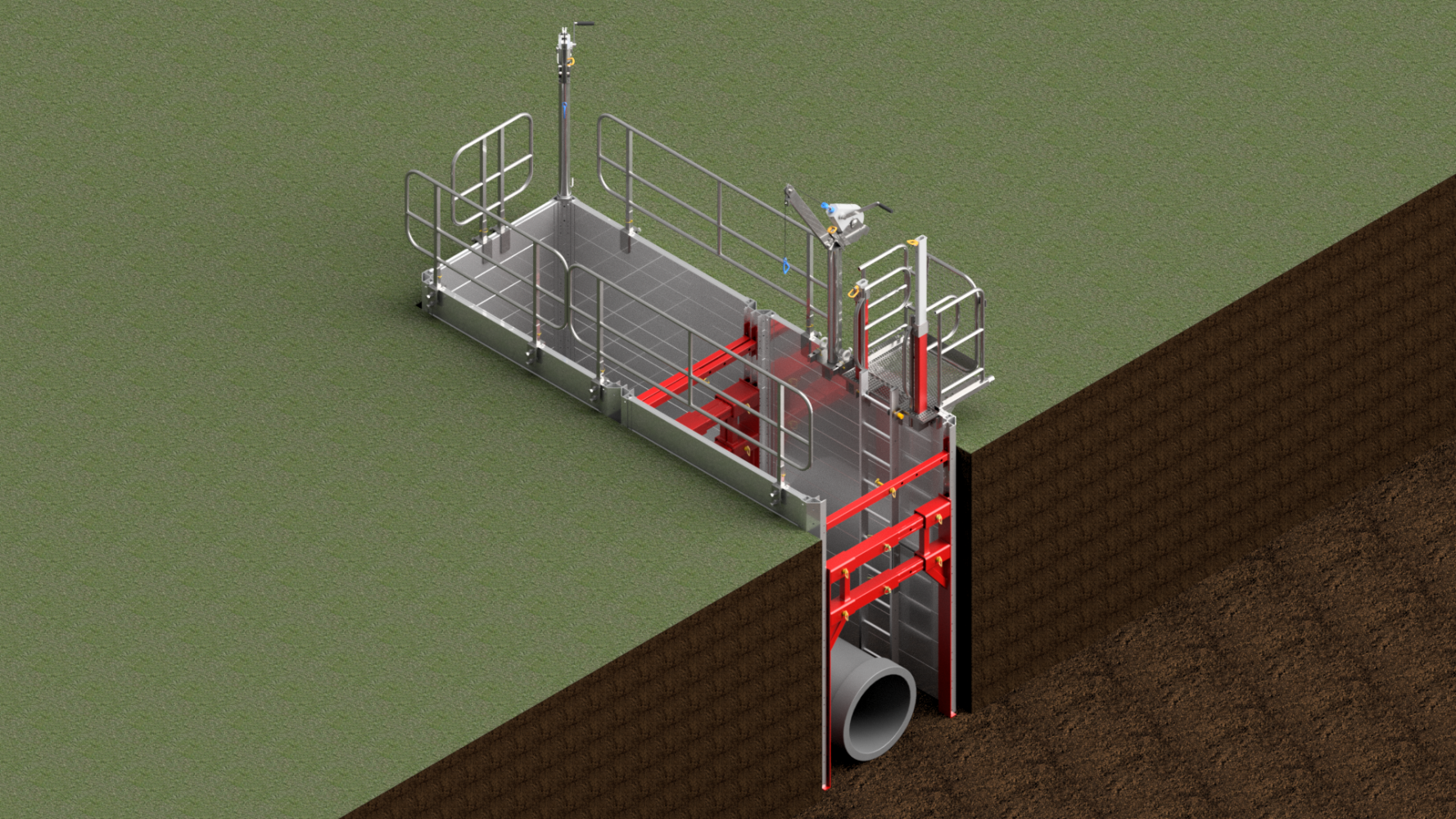

The MAPS Arch Spreader is frequently used on civil construction sites, infrastructure upgrades, pipeline, sewer and conduit work as well as general trenching and excavation projects. Its modularity makes it ideal for jobs where machinery access is limited, or manual assembly is preferred. Whether supporting trench walls during pipe installation, electrical conduit works, or shallow utility runs, the MAPS system provides reliable and compliant trench support that adapts to different widths and configurations.
