MegaDeck HD+ with MDX Pinning System
Technical Specifications
| Specification | Detail |
|---|---|
| Product Type | MegaDeck HD+ with MDX Pinning System |
| Material | High-Density Polyethylene (HDPE) with special impact modifiers that incorporate UV resistance and anti-static properties |
| Weight Load | 600 psi, depending on subsurface conditions |
| Connection System | MDX aluminium alloy core pin with engineered plastic casing, cam-free locking. A simple twist of a T-bar tool grabs both mats directly and locks mats into place. |
| Size | 2.3 m L x 4.3 m W x 10.16 cm H |
| Usable Surface (Due to Flange) | 1.98 m L x 3.96 m W |
| Weight | 464.9 kg |
| Colour | Grey |
| Flammability Rating | UL94HB |
MegaDeck HD+ with MDX Pinning System

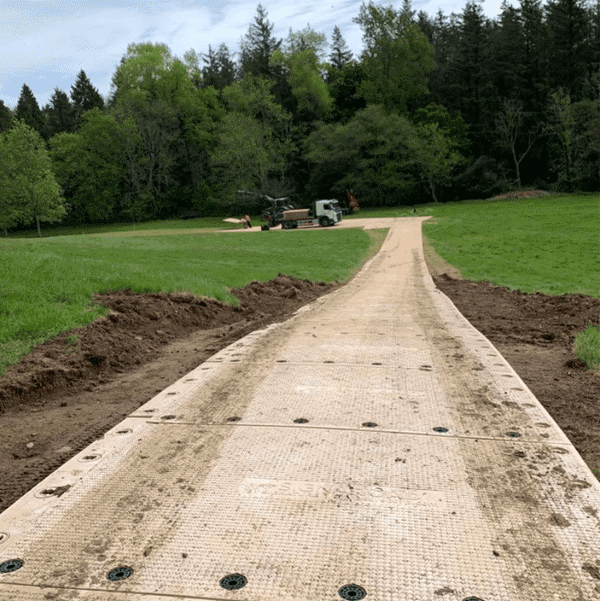

The MegaDeck HD+ with MDX Pinning System from United Rentals (formerly Shore Hire) is a heavy-duty composite matting solution built for demanding construction and access applications. Designed to provide a stable, non-shifting access way or work platform, MegaDeck HD+ reduces the risk of accidents and protects personnel and equipment.Â
Constructed from high-density polyethylene (HDPE) with UV-resistant and anti-static properties, each mat features a cross-ribbed internal structure that evenly distributes weight up to 600 psi. The patented pre-mix, pre-melted process used to create MegaDeck HD+Â results in a strong, yet flexible mat that will not crack, rot, release plastic pellets or absorb chemicals. The sealed design prevents fluid saturation and environmental contamination, extending service life even in harsh or wet site conditions.
MegaDeck HD+ is built for stability, load support, and fast installation. Its MDX Pinning System uses engineered plastic locking pins to create secure, cam-free connections and maximise contact between mats. This improves platform stability and makes cleanup easier in wet or muddy ground. Together, MegaDeck HD+ and the MDX system ensure quick installation, safe operation, and long-term durability across the toughest worksites.
- Durable HDPE construction with UV and anti-static properties
- Cross-ribbed internal structure provides superior load distribution
- Non-slip tread surface enhances worker and equipment safety
- Fast, simple installation. Cam-free MDX Pinning System allows quick, tool-assisted installation
- Fully sealed design prevents fluid ingress and cross-contamination
- Clear lock position indicators enhance safety and efficiency during setup
- Designed to maintain secure connections under heavy vehicle or machinery loads
- Large pin holes and open design make cleaning easy in muddy environments
- Locks mats securely with visible lock indicators for safe setup
- Stackable and compatible with elevated or layered mat configurations
MegaDeck HD+ with MDX Pinning System is suited civil construction, mining, utility, and infrastructure projects where temporary roadways or ground protection are required. Its heavy-duty mat design and MDX connection system work together to increase surface contact between panels, delivering a stable, non-shifting platform even on uneven, wet, or muddy terrain.
