Steel Tilt Props
STEEL TILT PROP SPECIFICATIONS
Description | Length | Closed (WLL) | Middle (WLL) | Full (WLL) | Weight |
---|---|---|---|---|---|
Trench Mini A | 1.0m – 1.6m | 1.0m – 35kN | 1.3m – 32kN | 1.6m – 30kN | 20kg |
Trench Mini B | 1.2m – 1.8m | 1.2m – 35kN | 1.5m – 32kN | 1.8m – 30kN | 22kg |
Mini | 2.6m – 4.4m | 2.6m – 35kN | 3.5m – 32kN | 4.4m – 30kN | 38kg |
Micro Mini | 0.6m – 0.85m | 0.6m - 35kN | 0.7m - 35kN | 0.85m - 35kN | 14kg |
Standard | 4.4m – 6.7m | 4.4m – 40kN | 5.5m – 23kN | 6.7m – 14kN | 53kg |
Jumbo | 6.4m – 10.1m | 6.4m – 25kN | 8.0m – 11kN | 10.1m – 6kN | 76kg |
Steel Tilt Props

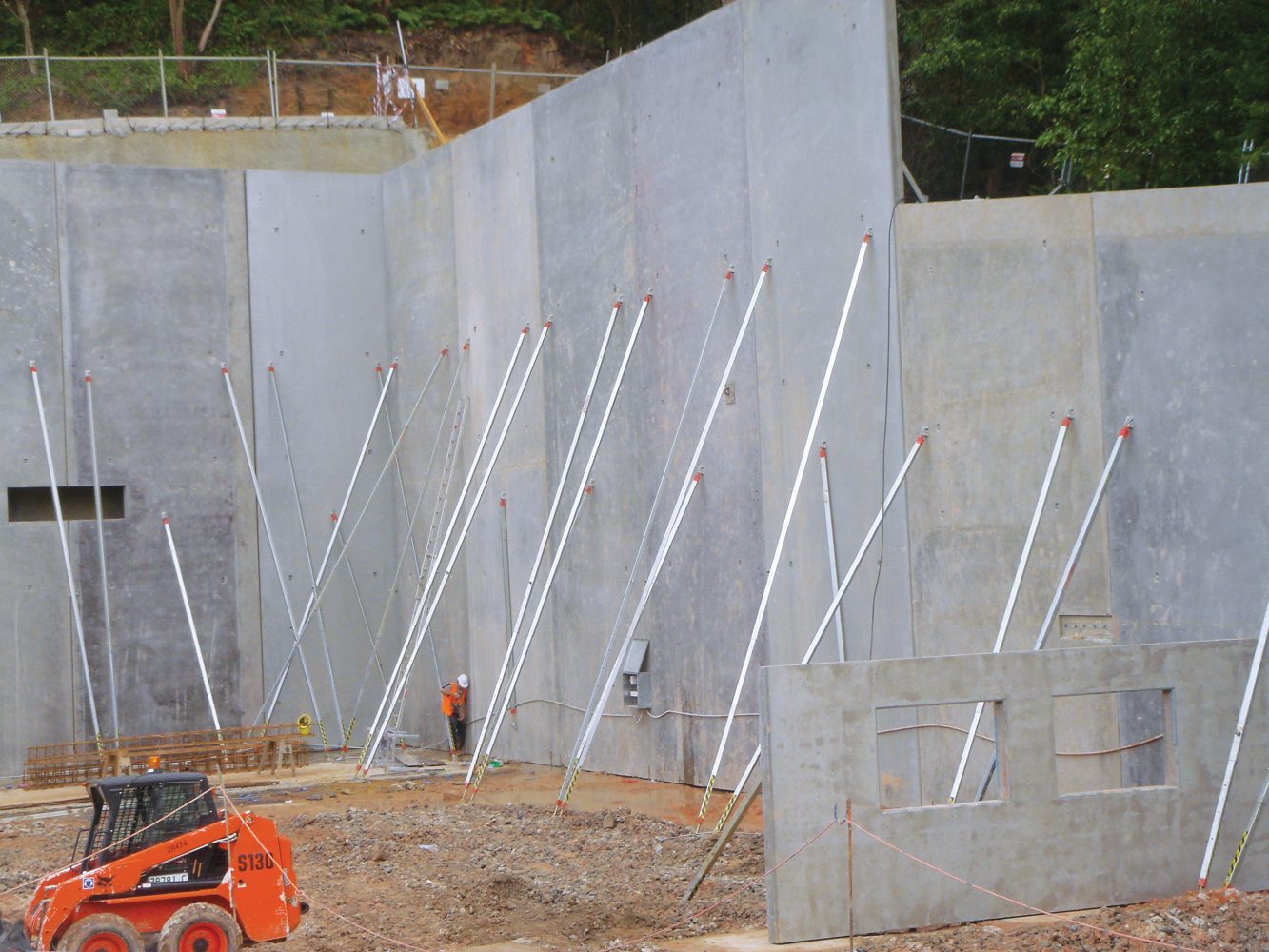

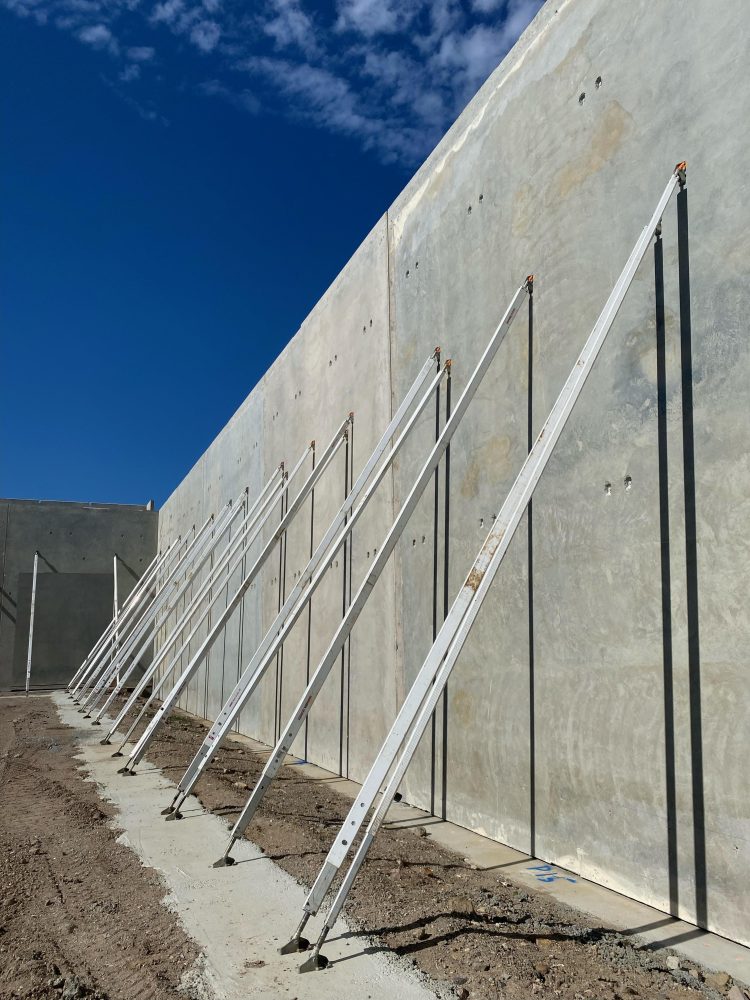

Shore Hire Steel Tilt Props are a versatile and economic propping system for bracing and aligning concrete elements such as prefabricated walls, as well as other general shoring and propping applications.
As tilt-up slab construction techniques have resulted in increased panel sizes and the need for greater load bearing, builders have sought simpler and more effective solutions to increase efficiency on-site, which is why Shore Hire’s Steel and Aluminium Tilt Props have become a go-to product for contractors.
Shore Hire’s Steel Tilt Props (also known as push-pull props) cater for a large range of lengths and capacities. Tilt props have a large adjustable range with fine adjustment possible with the ACME thread, which helps ensure versatile yet precise adjustments to length. The high strength-to-weight ratio of Shore Hire tilt props means they can be easily manoeuvred and installed on-site, saving you on labour and transport costs.
Our experienced engineers and project managers can provide custom advice and support for all your propping needs. We can talk you through how to install props, provide onsite consultation specific to your needs or even deliver a complete supply and installation service, working with you from tender through to completion for full peace of mind on your next project.
