Temporary Steel Bridge

Availability: Same Day

  • description
  • Features
  • suited for
  • inclusions

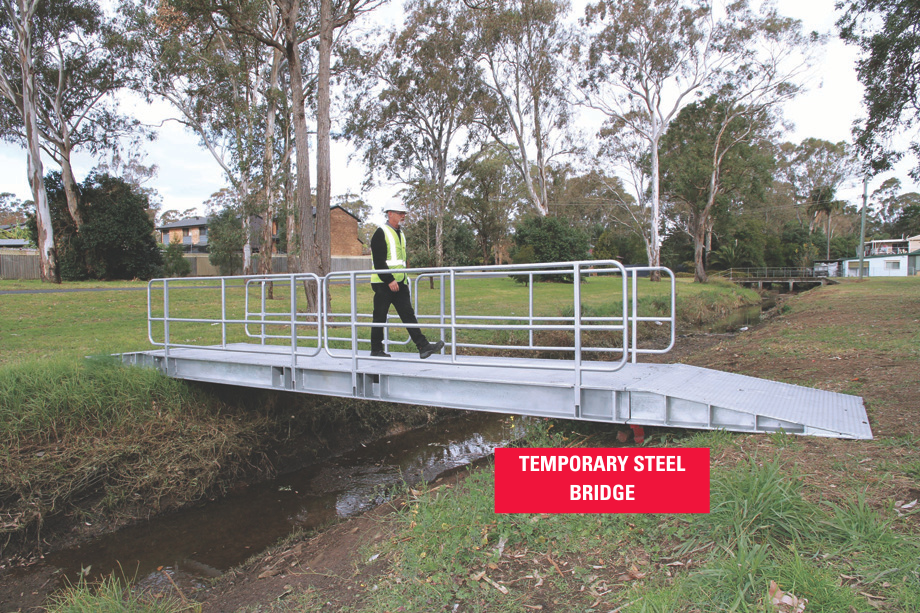

Shore Hire has a range of temporary steel bridges for Pedestrian and vehicular access..

The decks are modular and are 1.5 meters wide each and can be bolted together side by side for vehicular access. There are handrails available for pedestrian access and centre plate certified lifting points for ease of craning into position.

Ramps are available for ease of access at the ends.

Designed in accordance with loading requirements set out in AS5100.2 (M1600/360KN moving loads of S1600/240KN stationary loads)

Temporary Steel Bridge Specifications

Length (m) Width (m) Load Type Max Span Weight kg
4.5m 1.5m Truck & Pedestrian 4.0m 2294kg
6m 1.5m Truck & Pedestrian 5.5m 2753kg
7.5m 1.5m Truck & Pedestrian 7.0m 4535kg
9m 1.5m Truck & Pedestrian 8.5m 5738kg
10.5m 1.5m Truck & Pedestrian 10.0m 6370kg
Ramp 1.5m Truck & Pedestrian N/A 450kg



Shore Hire has a range of temporary steel bridges for Pedestrian and vehicular access..

– Suitable for both Vehicle and pedestrian loads.

– Quick to install

– Complete with handrails

– Large spanning capacity

– Ramps at either end

– Forklift tyne access

– Manufactured to AS Standards



Shore Hire has a range of temporary steel bridges for Pedestrian and vehicular access..

The decks are modular and are 1.5 meters wide each and can be bolted together side by side for vehicular access. There are handrails available for pedestrian access and centre plate certified lifting points for ease of craning into position.

Ramps are available for ease of access at the ends.

Designed in accordance with loading requirements set out in AS5100.2 (M1600/360KN moving loads of S1600/240KN stationary loads)

The Bridges can be delivered standalone or as as part of our comprehensive full-service solution. This includes:

  • Free on-site assessment
  • Engineering design
  • Delivery
